13.5" 6T Front Brake Kit | 17-20 F150 Raptor

Baer Brakes

Product Sku: 4261636R-2

Select your options

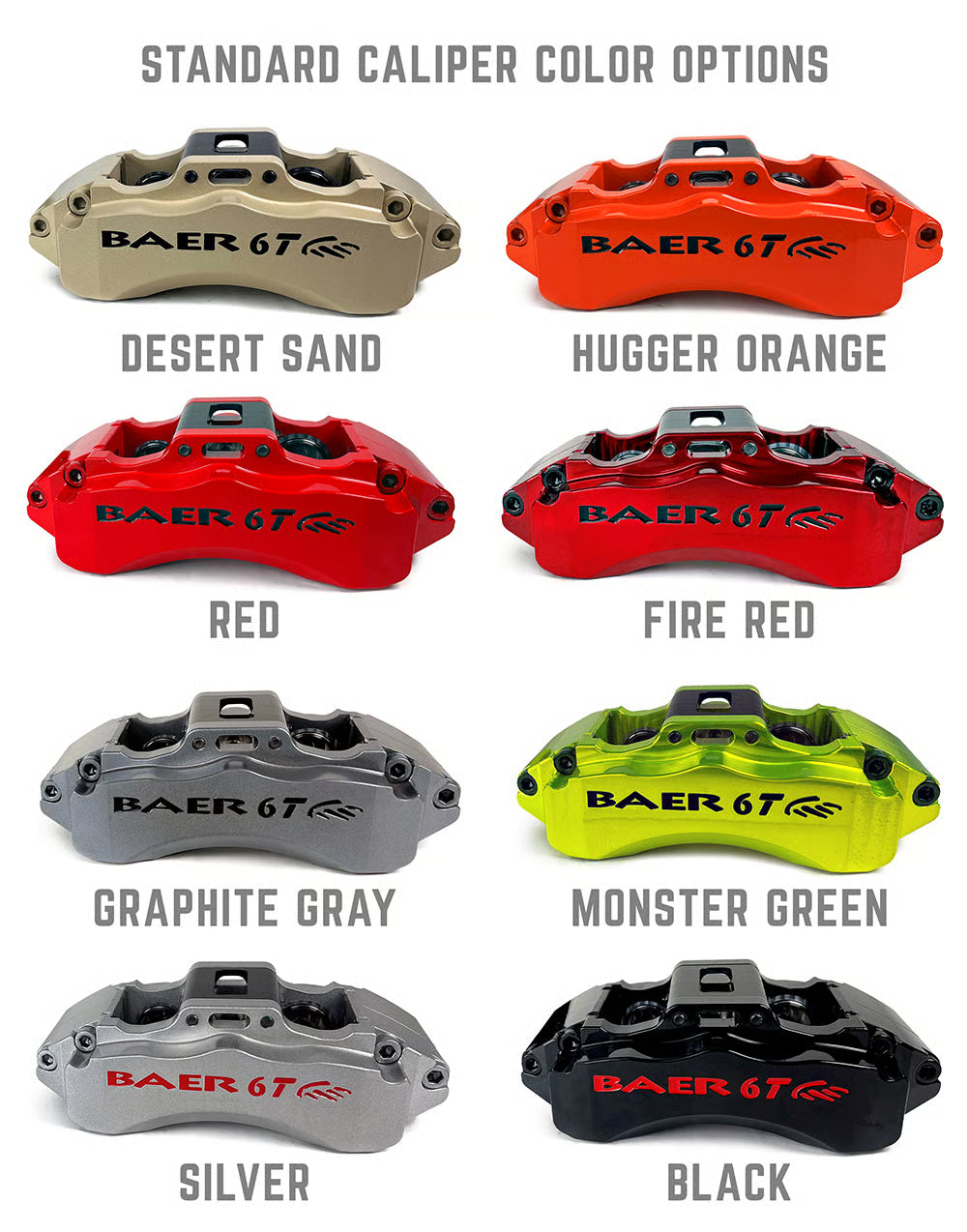

Caliper Finish

Overview

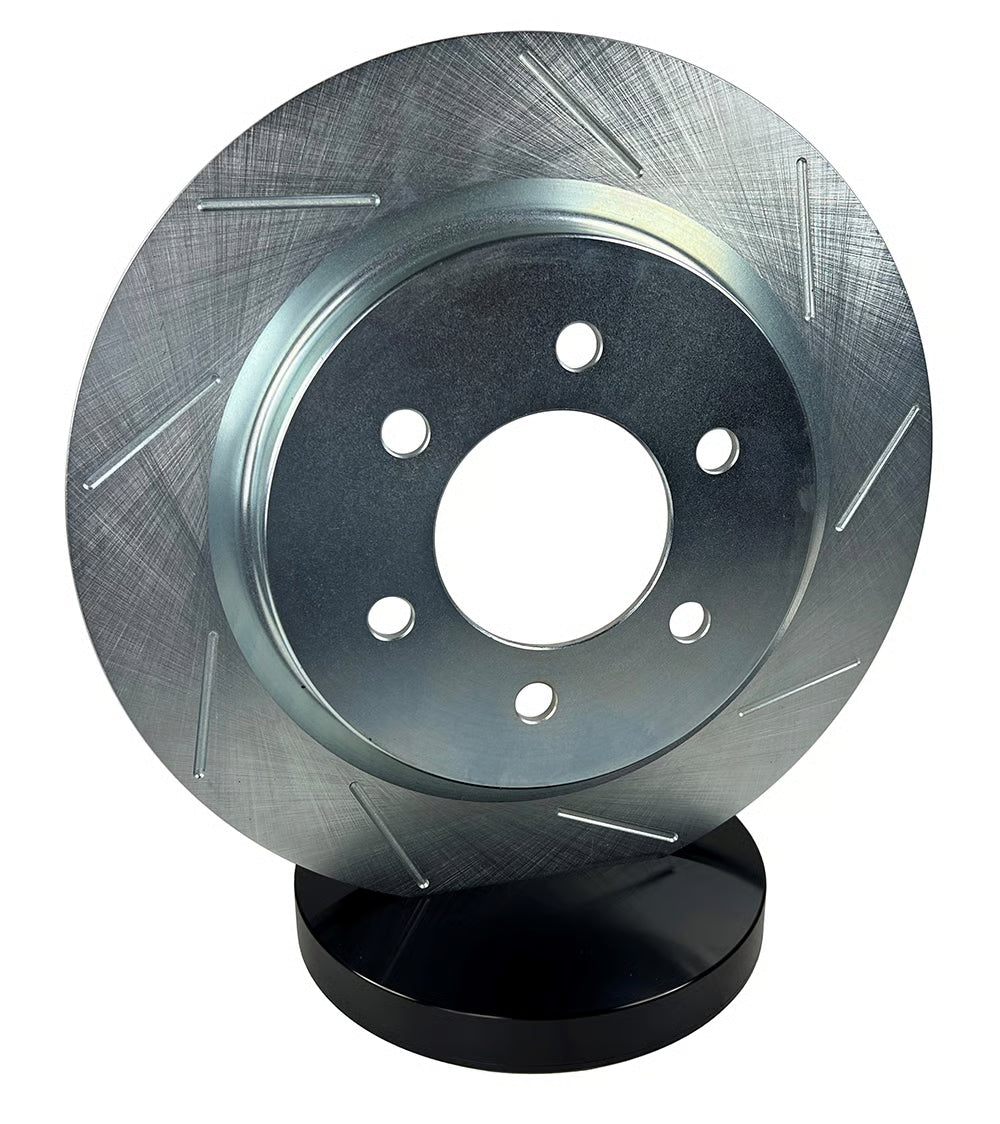

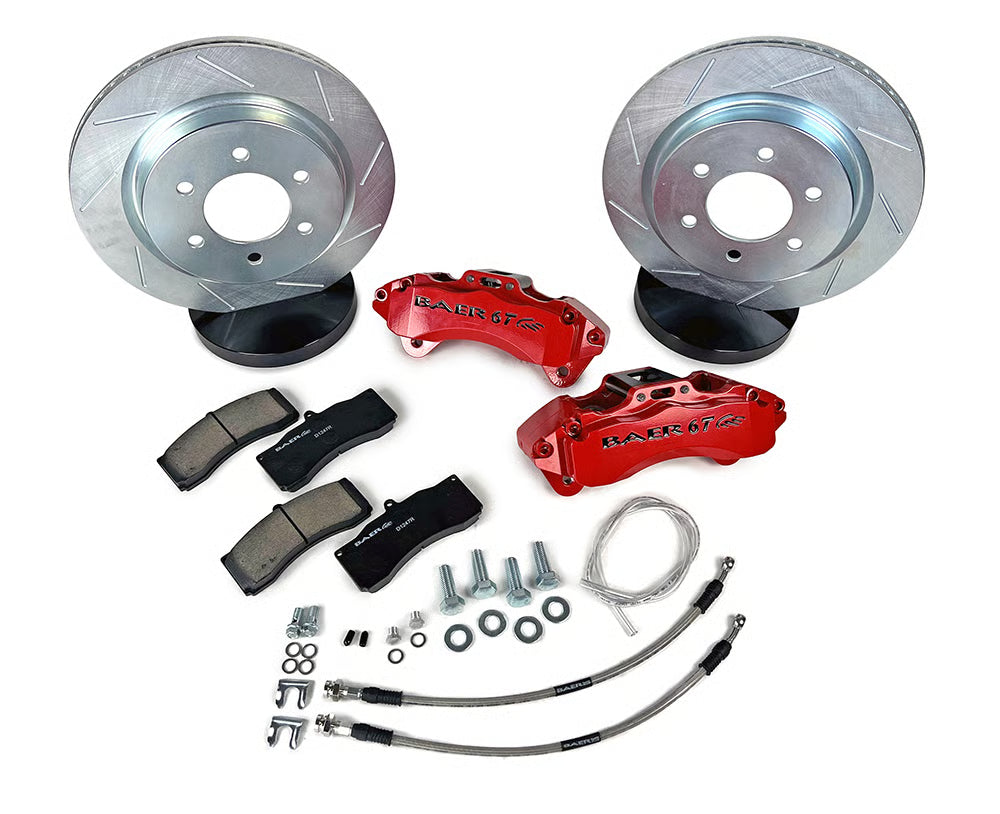

This system features the 6-piston, 6T caliper mounted to a 13.5", 1-piece slotted and zinc-plated rotor. The 6T caliper has D.O.T compliant dust and weather seals and uses the popular D1247 pad type. Rotors are purpose cast using only premium materials and feature a curved vane design for optimum cooling, consistant braking and reduced brake fade. All mounting brackets, stainless braided hoses* and hardware are also included. The 13.5" 6T Brake kits are designed to fit most 17” or larger wheels. NOTE: Hoses included are for stock height vehicles, lifted vehicles may require longer hoses.

Features

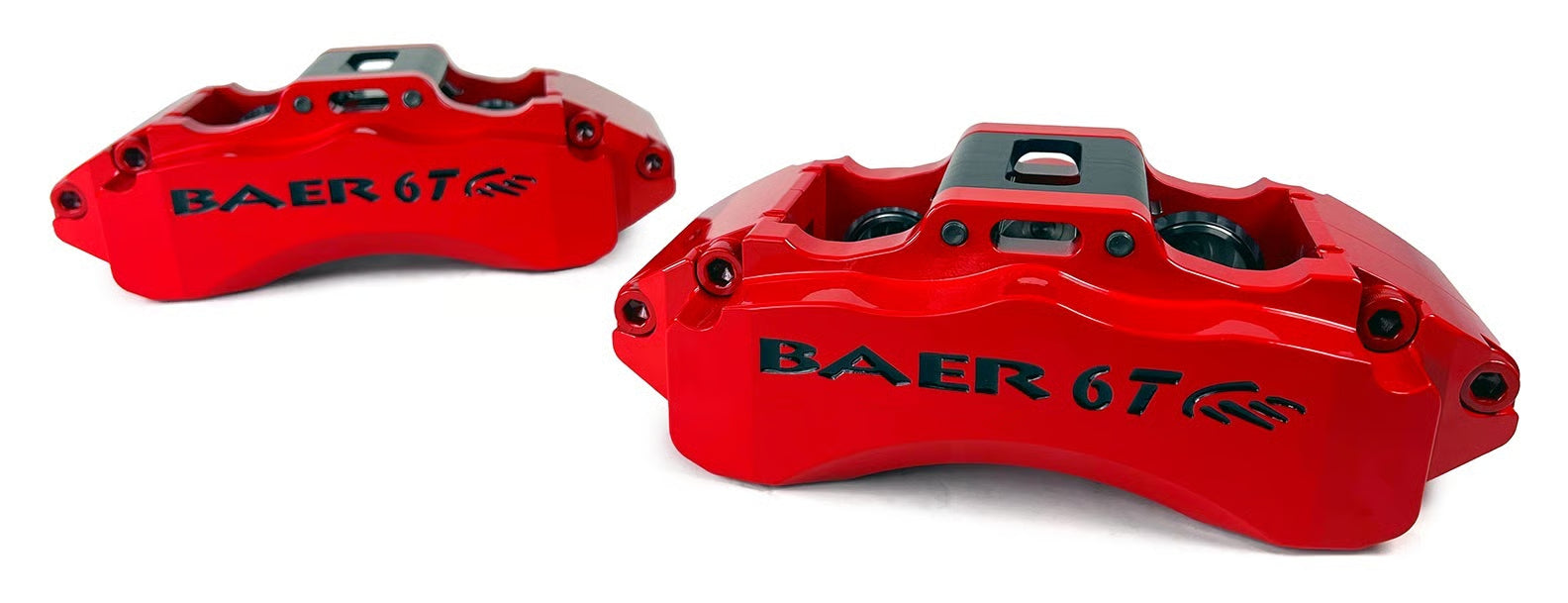

  • 2-Piece, 6-Piston, Direct Mount, 6T Caliper Manufactured in Phoenix, AZ
  • CNC Machined from US Sourced Forged or Billet Aluminum
  • Powder Coated Finish
  • Stainless Steel Pistons, Abutments and Noise Suppression Clips
  • Staggered Pistons to Minimize Uneven Pad Wear
  • Dual Seals, Dust/Weather & Pressure
  • 1-Piece Slotted & Zinc-Plated Rotor

Specs

Applications Ford F150 10-25 (2WD/4WD, Incl Raptor)
Axle Front
Brake Hose DOT Approved Yes
Brand Baer Brakes
Caliper 6T
Caliper Color Red
Category Brake
Disc Brake Caliper (Front) Piston Quantity 6
Disc Brake Caliper (Front) Type Fixed, Direct Mount
Disc Brake Pad FMSI Number D1247
Disc Brake Rotor (Front) Construction Vented
Disc Brake Rotor (Front) Outside Diameter 13.500 IN
Emission Code 6
Export Description Brake Components
Friction Material Composition Semi-metallic
Grade Type Performance
Hose Material Stainless Steel
Lug Count 6 Lug
Min Wheel Dia (verify using template) 17 IN
part type Disc Brake Upgrade Kit
Product Line 13.5 Inch 6T
Product Type 13.5 Inch 6T Front Brake Kit
Prop 65 (C, R or CR) CR
Prop 65 - Long Label WARNING: This product can expose you to chemicals including Toluene Diisocyanate, and Nickel which are known to the State of California to cause cancer. For more information, visit www.P65Warnings.ca.gov
Prop 65 Yes/No Yes
Rotor Thickness 1.2500 IN
Rotor Type 1-Piece
Solid Or Vented Type Rotor Vented
Sub Category Service Kits
Surface Type Slotted & Zinc Plated
System Notes Brake hoses included are designed for stock height vehicles, lifted vehicles may require longer hoses.
Fits OE Front Knuckles & Hubs
Template O080M
Title 6T Brake System Front

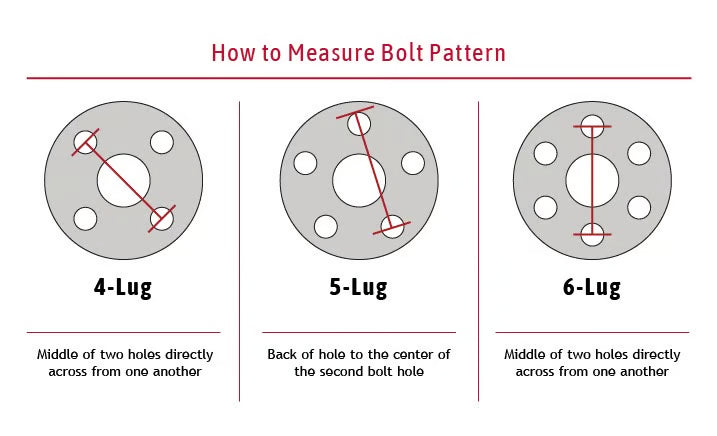

Wheel Lug/Bolt Pattern 6x5.312 IN
