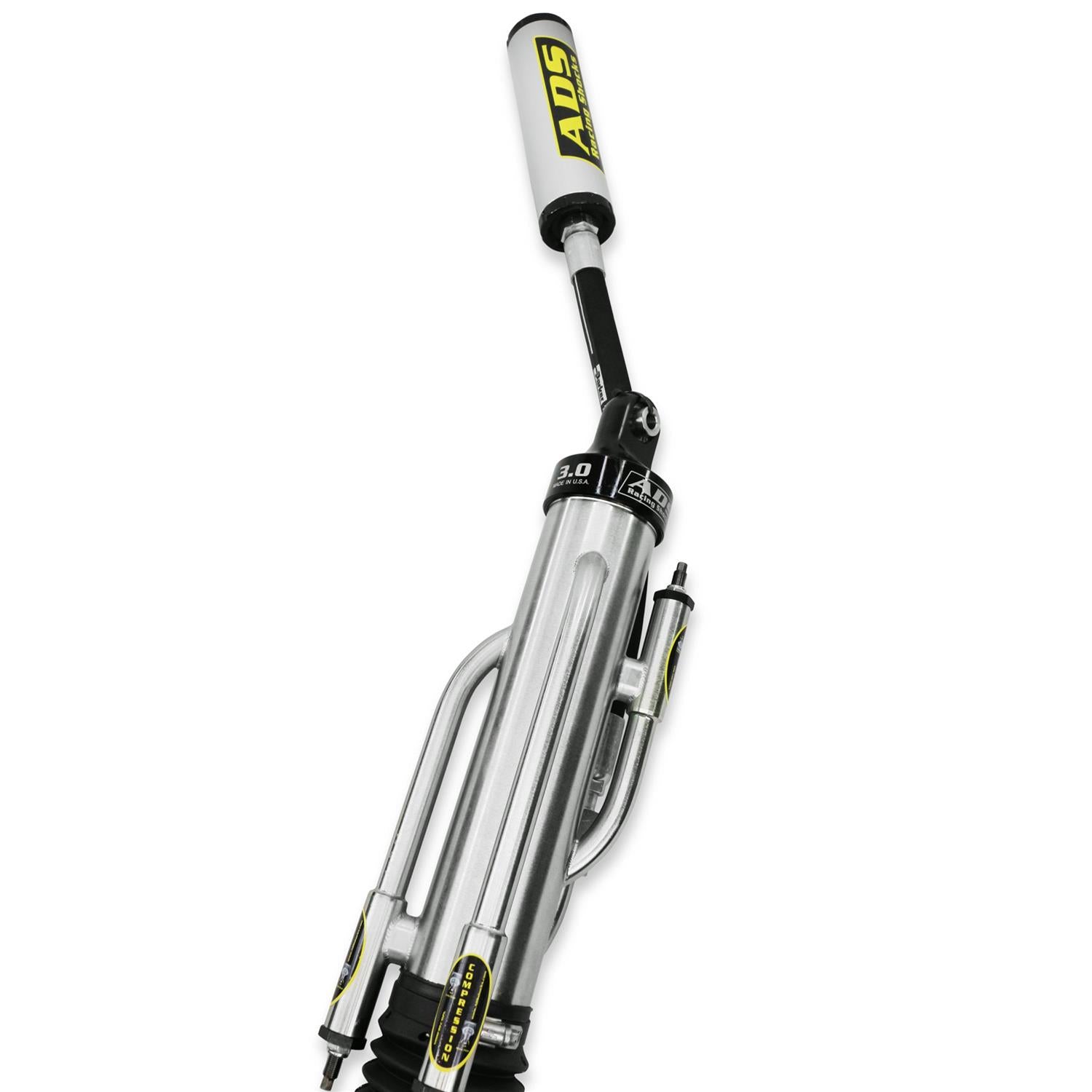

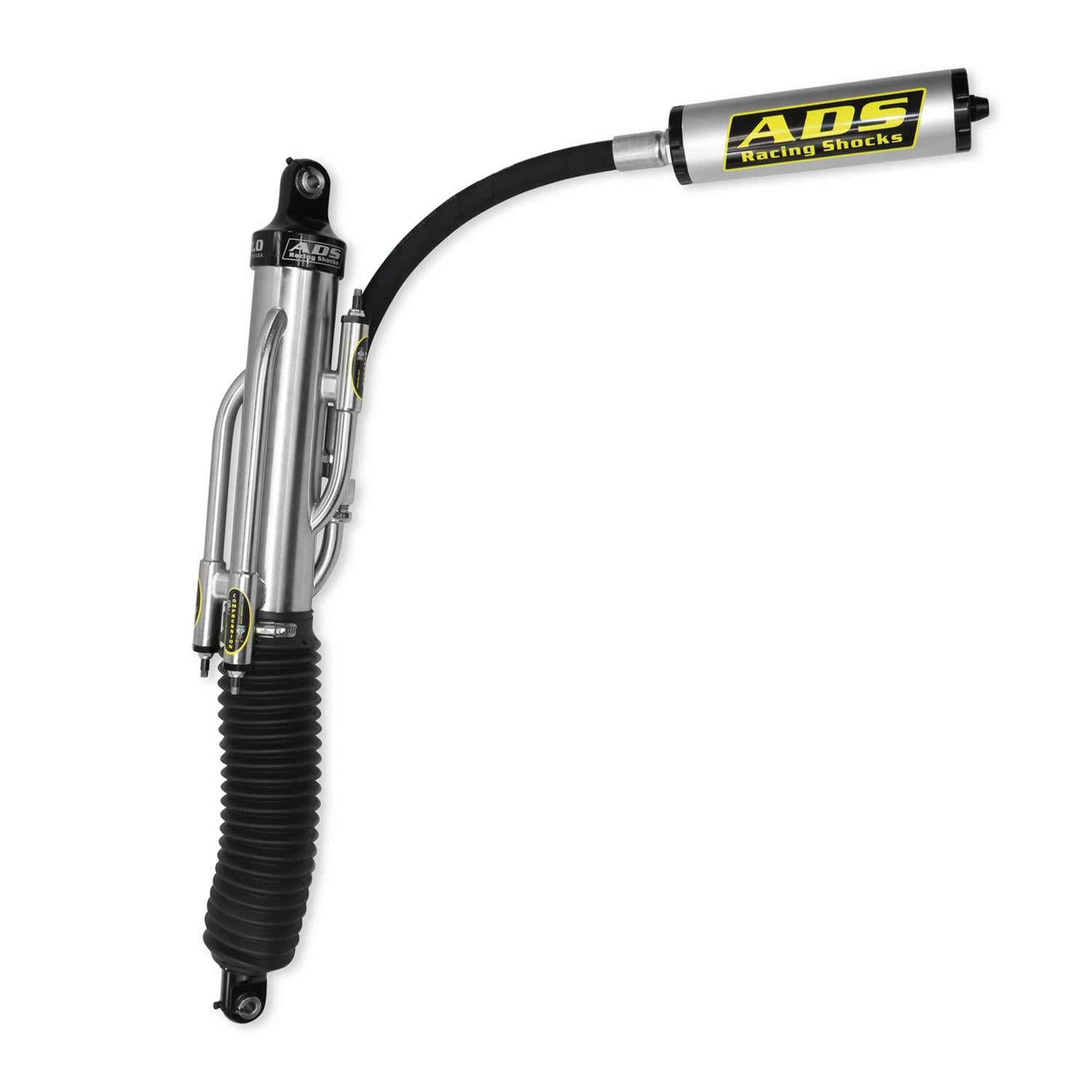

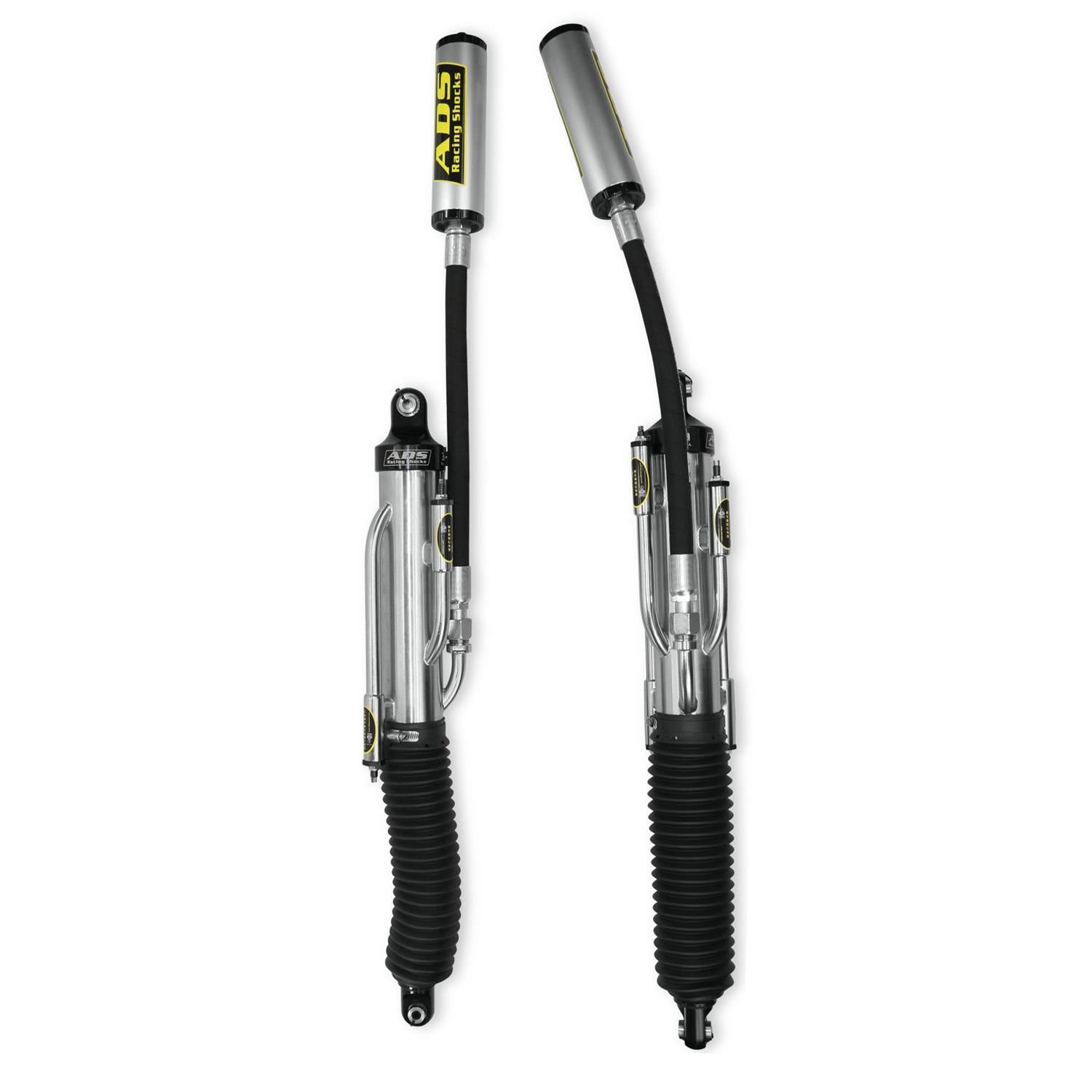

3.0" 4-Tube Bypass Reservoir Rear Shocks | 17-25 F150 Raptor

ADS Racing Shocks

Product Sku: 300-17RTR-BP0

Description

ADS Racing Shocks Direct Fit suspension upgrade, designed to take your off-road performance to the next level. These top-of-the-line shocks are engineered to provide maximum stability and control, allowing you to conquer even the toughest terrains with ease. Crafted from high-grade materials, ADS Racing Shocks bolt-on suspension upgrade is built to withstand extreme conditions and heavy use. The advanced damping technology ensures a smooth ride, minimizing shock and vibration for maximum comfort. Installation is a breeze, with a bolt-on design that fits seamlessly onto your existing suspension system. Whether you're a seasoned off-road enthusiast or just starting out, ADS Racing Shocks bolt-on suspension upgrade is the perfect choice for enhancing your vehicle's performance and handling.

Features:

  • Large Bore 3.0 shock body provides increased fluid capacity resisting shock fade resulting in increased performance for your off-road adventures
  • Electric zinc plated steel shock body with crystal clear Cerakote® for durability and corrosion resistance.
  • Black anodized billet aluminum top and bottom caps
  • Hard-chrome plated steel shock shafts for superior corrosion resistance
  • Shock eye mounts feature machined rod ends with high strength spherical bearings for increased performance
  • Shaeffer’s high grade temperature stable synthetic hydraulic fluid
  • Fully rebuildable
  • Made in America

Specs

Active or Passive Suspension Passive
Adjustable Compression Yes
Adjustable Rebound Yes
Adjustable Reservoir No
Adjustable Ride Height No
Body Color Silver
Body Diameter 3 IN
Body Finish Electric zinc plated w/ Ceramic coat
Body Material Steel
Boot Included Yes
Brand ADS
California Proposition 65 No
Category Suspension
Collapsed Length 19.45 IN
Drivetrain 4WD
Emission Code 6
Extended Length 31 IN
Gas Charged Yes
Grade Type Performance
Hose Length 22 IN
Hose Material Rubber
Hose Outer Diameter 1.125 IN
Includes Bump Stop Yes
Internal Construction Type Mono tube
Internal Rebound Bumper No
Internal Rebound Spring No
Lift Range 0-2.5 IN
Lower Mount Type Eyelet
Mounting Hardware Included Yes
Part Type Suspension Shock Absorber
Position Rear
Quantity Sold as a pair
Requires UCA No
Reservoir Color Silver
Reservoir Diameter 2.75 IN
Reservoir Finish Anodized
Reservoir Length 9 IN
Reservoir Material 6061 Aluminum
Reservoir Type Remote
Shaft Diameter 0.875 IN
Shaft Material Hard-chrome plated steel
Shock Travel Extended Travel
Sub Category Shocks and Struts
Travel Length 11.55 IN
Type Bypass
Upper Mount Type Eyelet
Valving Type Progressive
Weight 59 LB
UPC 090127837030
Part Number 300-17RTR-BP0
