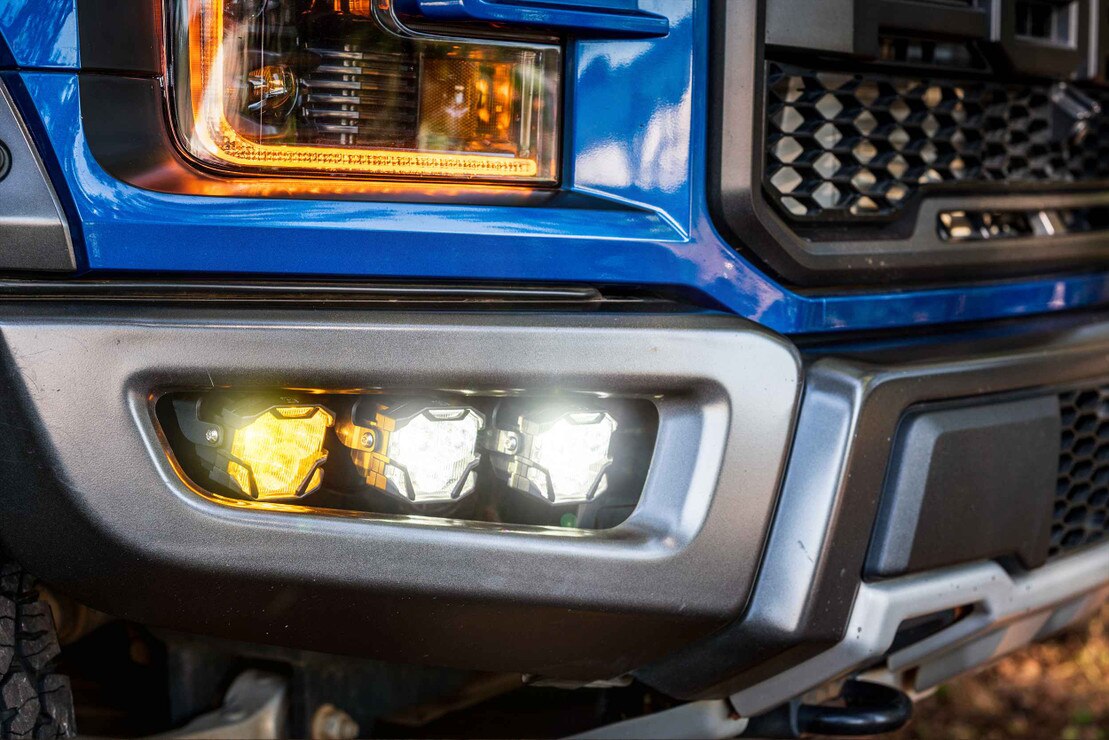

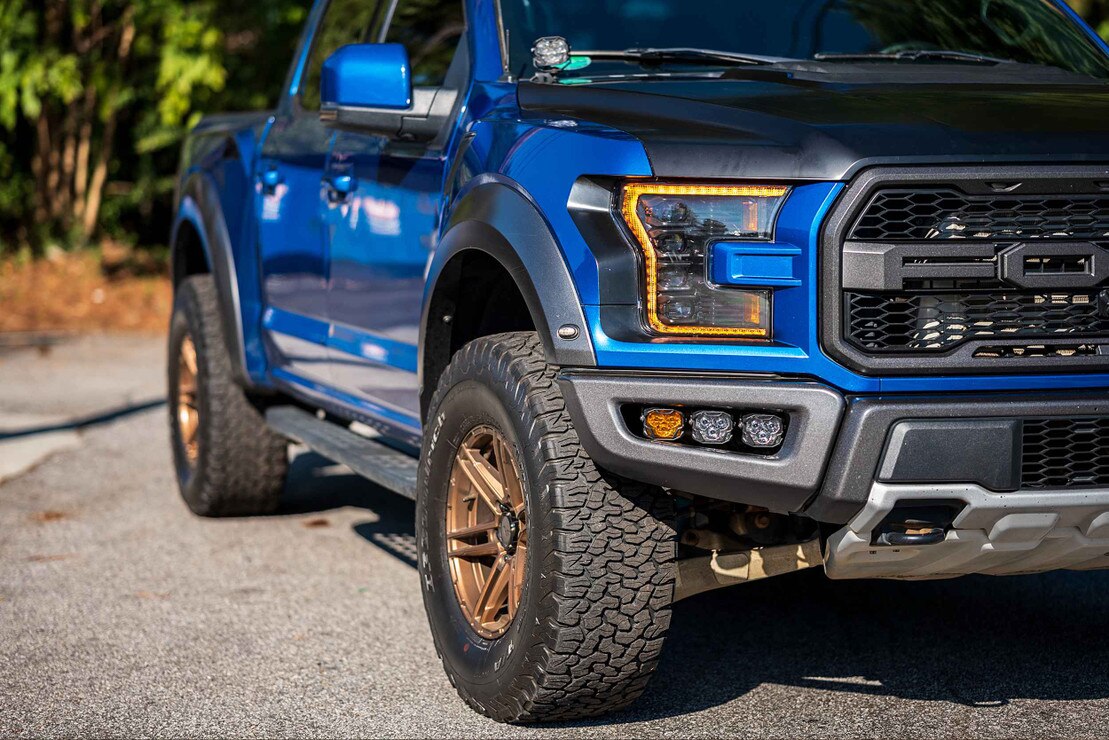

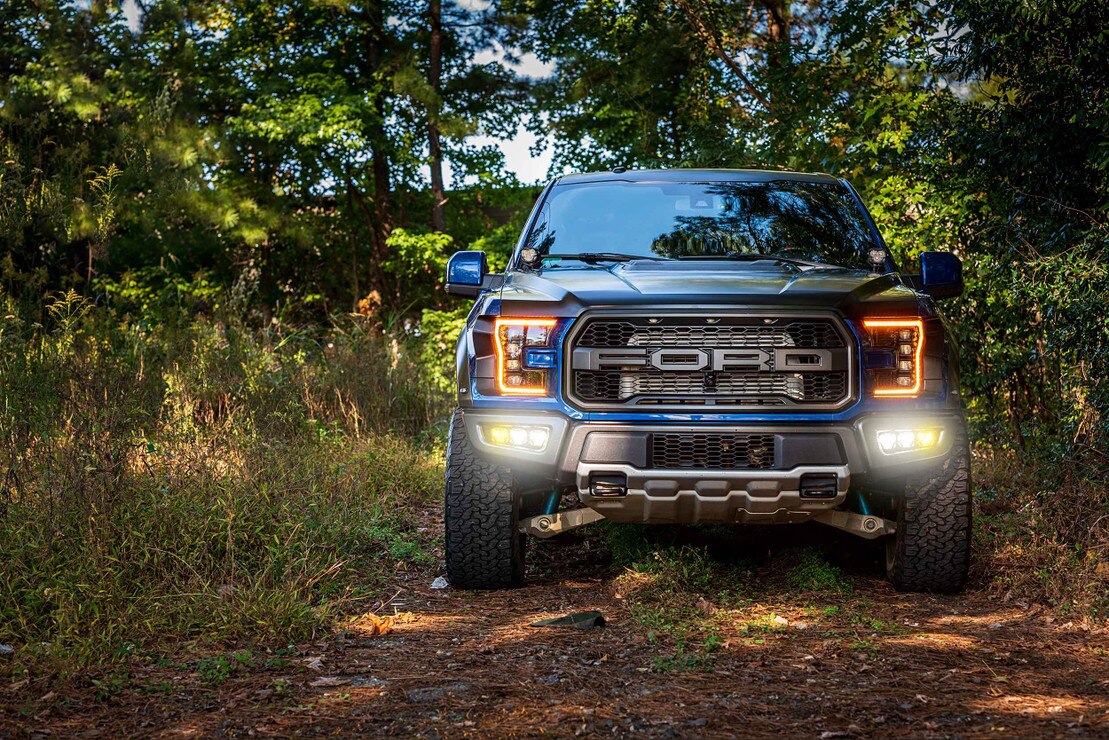

4Banger Fog Light Kit | 17-20 F150 Raptor
DESCRIPTION
FEATURES & BENEFITS
- Street Legal: Both the NCS and HXB Wide Beam models have been third-party verified compliant with the latest SAE F regulation for use as a street-legal fog light.
- Light Source: 4Banger pods are built around the high performance Nichia NCS or Osram HX Boost LEDs for incredible output.
- All-Weather Versatility: Designed to IP69K weather resistance standards and available in white or yellow output for optimal visibility.
- Air Cooled: As part of their design, the brackets allow airflow to cool the pods as you drive, ensuring long-lasting reliability.
- US-Based Engineering: Designed, engineered, and tested by our team of enthusiasts in Atlanta, GA.
*Your fog kit can be customized to any liking you would like! If you do not want all pods to be in the same color or lens pattern (ie you want a mix of yellow and white pods and different lens outputs) please notate in your order notes and we will customize your kit for you! (please note changing power levels can change your overall price)
WHAT’S INCLUDED
-

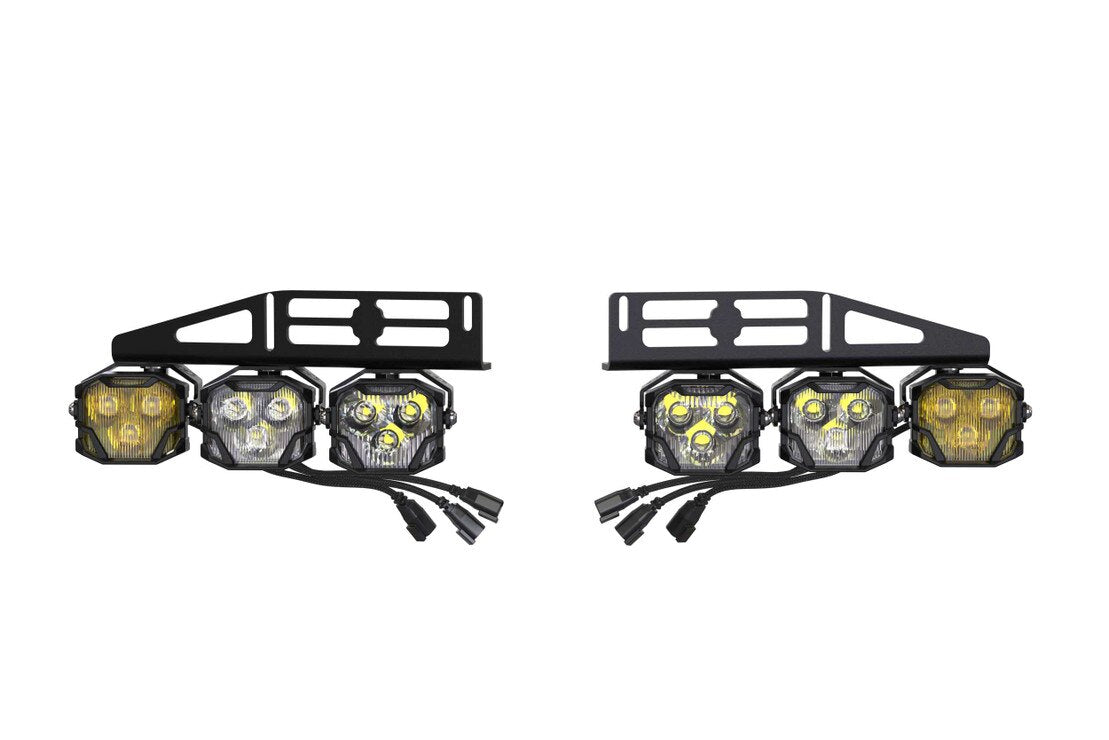

Fog Light Brackets : 2x (One Pair) Morimoto 4Banger (BAF024 / Ford Raptor)
-
Hardware : Complete Pack (Stainless Steel)
-

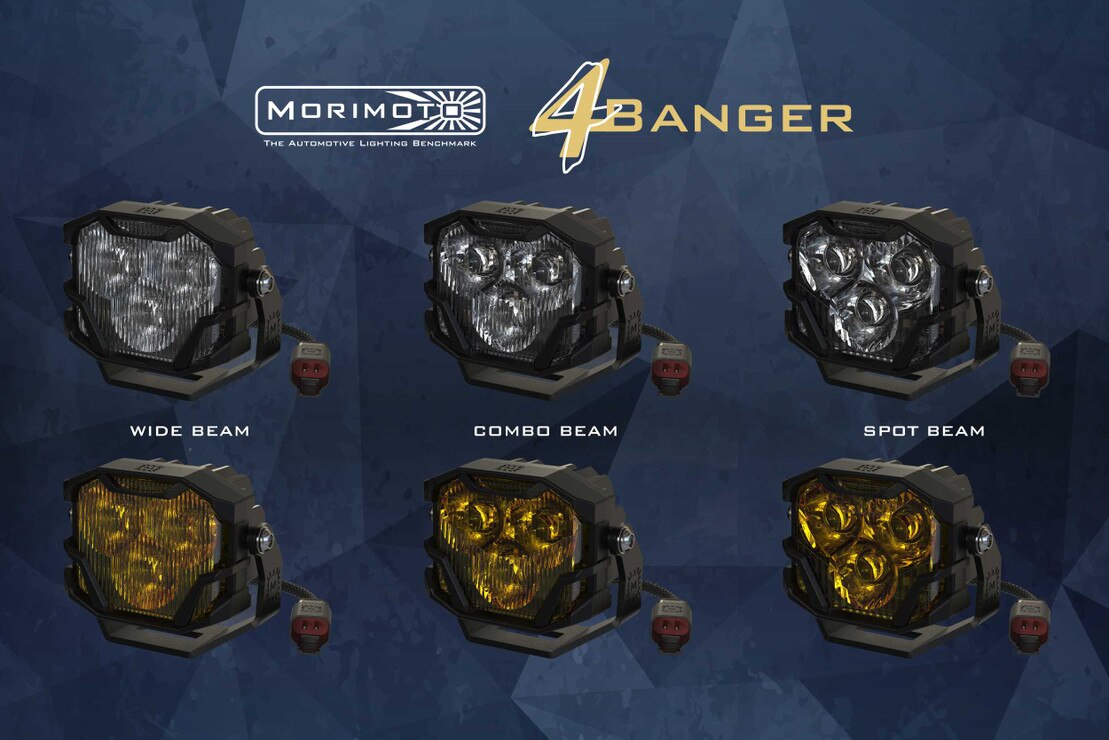

Optional LED Pods : 6x Morimoto 4Banger (Optional Color / Beam)
-
Optional Wiring : 1x Switched Power Harness
TECHNICAL SPECIFICATIONS
-
Note : These specifications are per pod / each!
-
Intensity (Post Warm-Up) :
-
NCS Yellow : 8,680 Cd (86.8lux @ 10m)
-
NCS White : 14,400 Cd (144lux @ 10m)
-
HXB Yellow : 14,700 Cd (147lux @ 10m)
-
HXB White : 22,400 Cd (224lux @ 10m)
-
Power (stabilized) : 15.6w (NCS) or 42w (HXB)
-
Current : 1.5A (NCS) or 3.2A (HXB)
-
Peak Luminosity (lm)(Raw) : 1,300lm (NCS) or 3,000lm (HXB)
-
Color : 2700K (Yellow), 5600K (White NCS), or 5700K (White HXB)
-
Light Source : 3x Nichia NCSY131F or Osram HX Boost
-
Input : Integrated Deutsch DT 2-Pin
-
Material : Powdercoated Stainless Steel (Brackets), Stainless Steel Hardware
