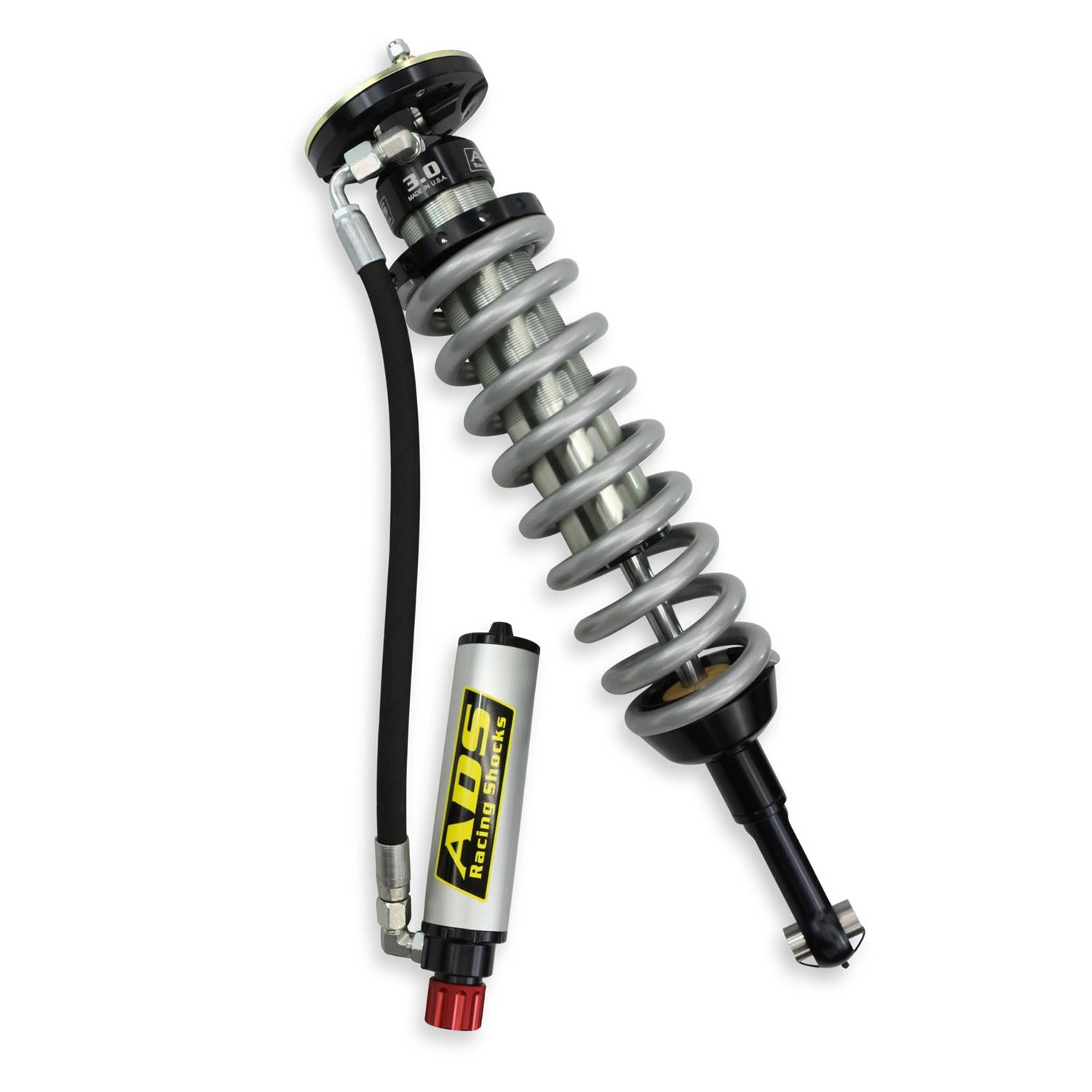

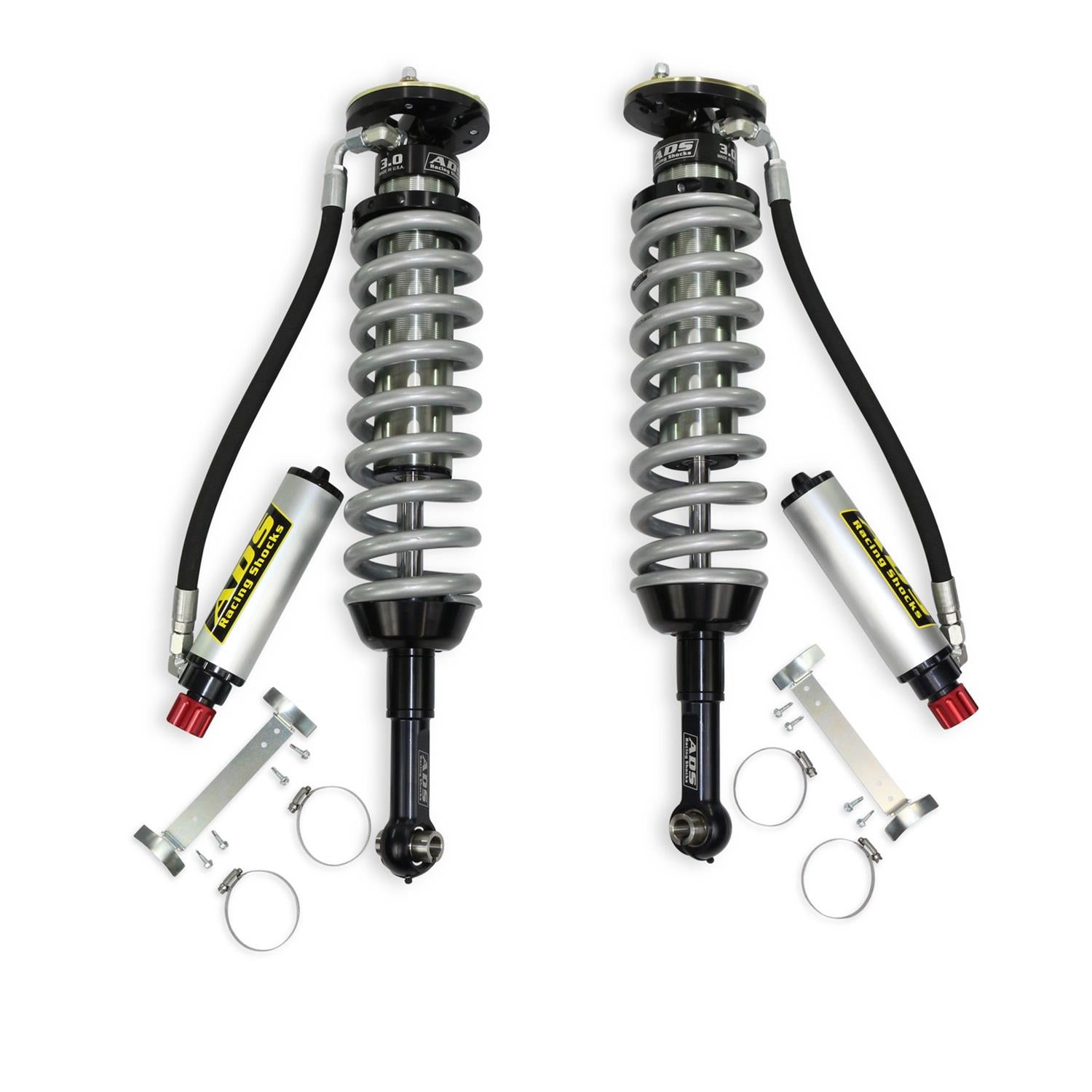

Direct Fit 3.0" Race Coilovers w/ Adj Resi | 15-25 F150 Raptor

ADS Racing Shocks

Product Sku: 300-17RTF-A00

Description

ADS Racing Shocks Direct Fit suspension upgrade, designed to take your off-road performance to the next level. These top-of-the-line shocks are engineered to provide maximum stability and control, allowing you to conquer even the toughest terrains with ease. Crafted from high-grade materials, ADS Racing Shocks bolt-on suspension upgrade is built to withstand extreme conditions and heavy use. The advanced damping technology ensures a smooth ride, minimizing shock and vibration for maximum comfort. Installation is a breeze, with a bolt-on design that fits seamlessly onto your existing suspension system. Whether you're a seasoned off-road enthusiast or just starting out, ADS Racing Shocks bolt-on suspension upgrade is the perfect choice for enhancing your vehicle's performance and handling.

Features:

  • Large Bore 3.0 shock body provides increased fluid capacity resisting shock fade resulting in increased performance for your off-road adventures
  • Electric zinc plated steel shock body with crystal clear Cerakote® for durability and corrosion resistance.

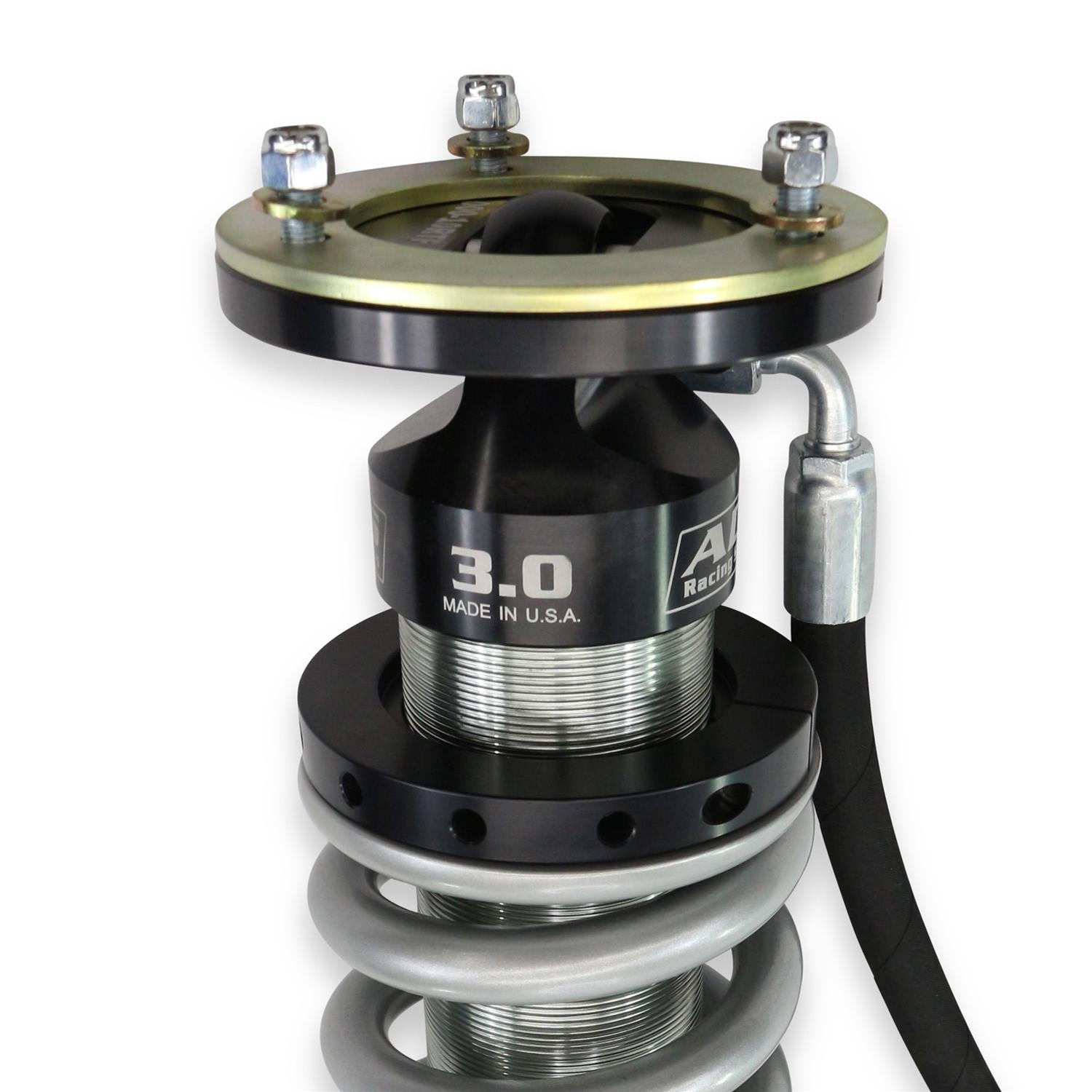

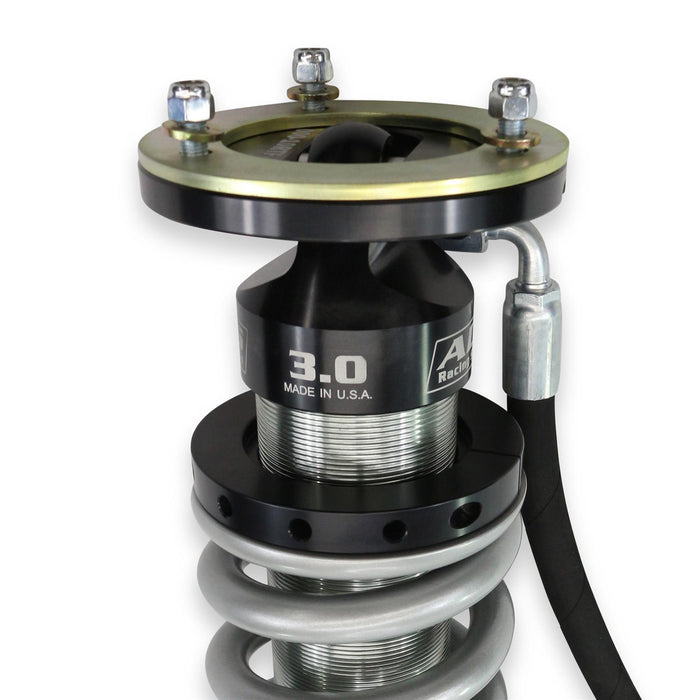

  • Black anodized billet aluminum top and bottom caps
  • Hard-chrome plated steel shock shafts for superior corrosion resistance
  • Shock eye mounts feature machined rod ends with high strength spherical bearings for increased performance
  • Shaeffer’s high grade temperature stable synthetic hydraulic fluid
  • Fully rebuildable
  • Made in America

Specs

Active or Passive Suspension Passive
Adjustable Compression Yes
Adjustable Rebound Yes
Adjustable Reservoir Yes
Adjustable Ride Height Yes
Body Color Silver
Body Diameter 3 IN
Body Finish Electric zinc plated w/ Ceramic coat
Body Material Steel
Boot Included No
Brand ADS
California Proposition 65 No
Category Suspension
Collapsed Length 23.019 IN
Drivetrain 4WD
Emission Code 6
Extended Length 29.163 IN
Gas Charged Yes
Grade Type Performance
Hose Length 22 IN
Hose Material Rubber
Hose Outer Diameter 0.875 IN
Includes Bump Stop Yes
Internal Construction Type Mono tube
Internal Rebound Bumper No
Internal Rebound Spring No
Lift Range 1-3 IN
Lower Mount Type Eyelet
Mounting Hardware Included Yes
Part Type Suspension Shock Absorber
Position Front
Quantity Sold as a pair
Requires UCA No
Reservoir Color Silver
Reservoir Diameter 2.5 IN
Reservoir Finish Anodized
Reservoir Length 8 IN
Reservoir Material 6061 Aluminum
Reservoir Type Remote
Shaft Diameter 0.875 IN
Shaft Material Hard-chrome plated steel
Shock Travel Extended Travel
Spring Color Silver
Spring Finish Powdercoated
Spring Included Yes
Spring Material Steel
Spring Rate 650 PPI
Sub Category Shocks and Struts
Travel Length 6.144000000000002 IN
Type Coilover
Upper Mount Type Mounting Plate
Valving Type Progressive
Weight 96 LB
UPC 090127837023
Part Number 300-17RTF-A00
