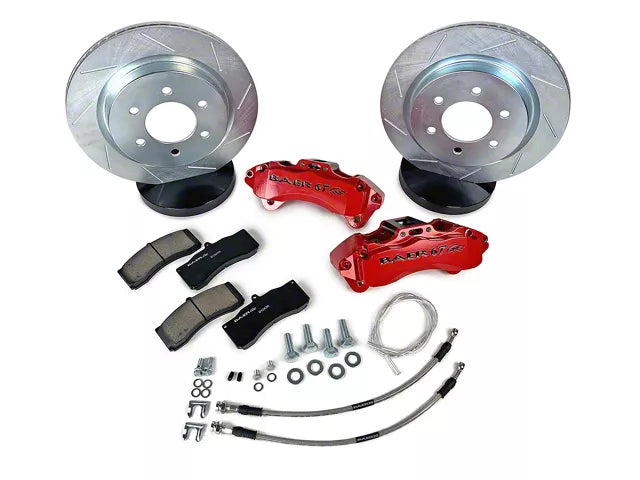

This system features the 6-piston, 6T caliper mounted to a 13.5", 1-piece slotted and zinc-plated rotor. The 6T caliper has D.O.T compliant dust and weather seals and uses the popular D1247 pad type. Rotors are purpose cast using only premium materials and feature a curved vane design for optimum cooling, consistant braking and reduced brake fade. All mounting brackets, stainless braided hoses* and hardware are also included. The 13.5" 6T Brake kits are designed to fit most 17” or larger wheels. NOTE: Hoses included are for stock height vehicles, lifted vehicles may require longer hoses.
Features
- 2-Piece, 6-Piston, 6T Caliper Manufactured in Phoenix, AZ
- CNC Machined from US Sourced Forged or Billet Aluminum
- Powder Coated Finish
- Stainless Steel Pistons, Abutments and Noise Suppression Clips
- Staggered Pistons to Minimize Uneven Pad Wear
- Dual Seals, Dust/Weather & Pressure
- 1-Piece Slotted & Zinc-Plated Rotor
Fitment
- 2021+ Bronco (Excludes Raptor and Bronco Sport)
Specs
| Applications |
Ford Bronco 21-25 |
| Axle |
Front |
| Brake Hose DOT Approved |
Yes |
| Brand |
Baer Brakes |
| Caliper |
6T |

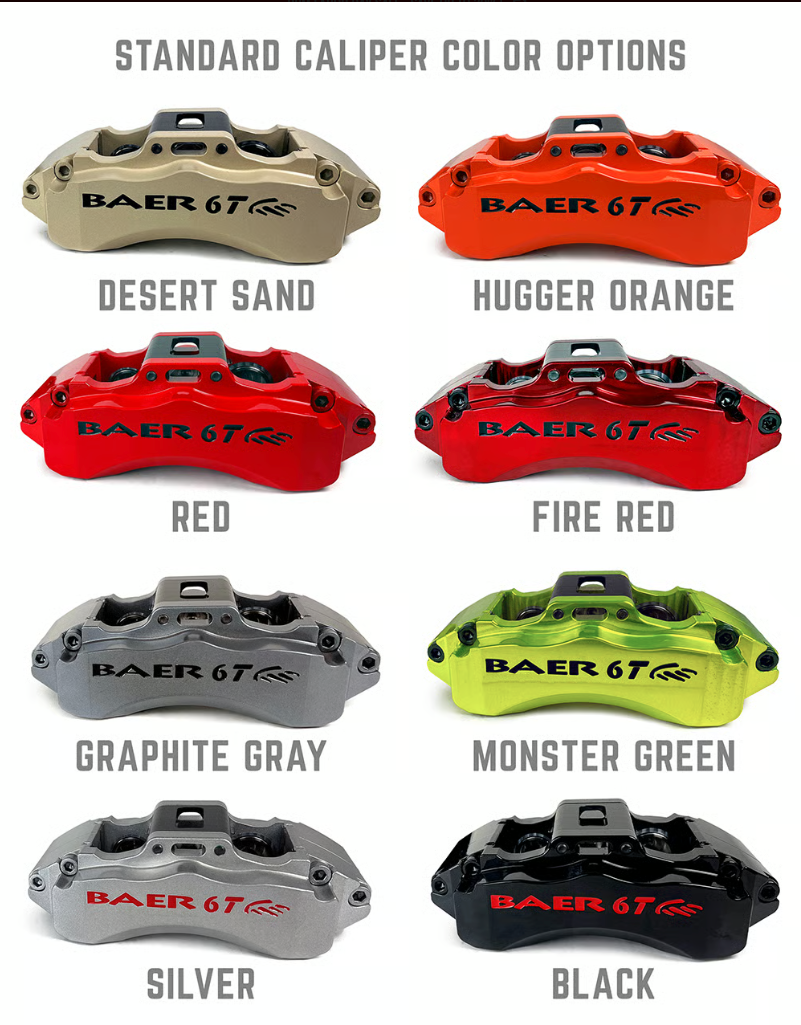

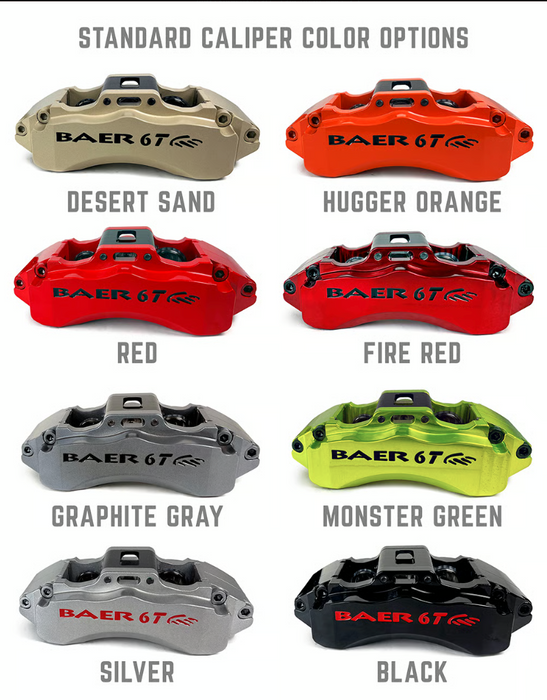

| Caliper Color |
Red |
| Category |
Brake |
| Disc Brake Caliper (Front) Piston Quantity |
6 |
| Disc Brake Caliper (Front) Type |
Fixed, Radial Mount |
| Disc Brake Pad FMSI Number |
D1247 |
| Disc Brake Rotor (Front) Construction |
Vented |
| Disc Brake Rotor (Front) Outside Diameter |
13.500 IN |
| Emission Code |
6 |
| Export Description |
Brake Components |
| Friction Material Composition |
Semi-metallic |
| Grade Type |
Performance |
| Hose Material |
Stainless Steel |
| Lug Count |
6 Lug |
| Min Wheel Dia (verify using template) |
17 IN |
| part type |
Disc Brake Upgrade Kit |
| Product Line |
13.5 Inch 6T |
| Product Type |
13.5 Inch 6T Front Brake Kit |
| Prop 65 (C, R or CR) |
CR |
| Prop 65 - Long Label |
WARNING: This product can expose you to chemicals including Toluene Diisocyanate, and Nickel which are known to the State of California to cause cancer. For more information, visit www.P65Warnings.ca.gov |
| Prop 65 Yes/No |
Yes |
| Rotor Thickness |
1.250 IN |
| Rotor Type |
1-Piece |
| Solid Or Vented Type Rotor |
Vented |
| Sub Category |
Service Kits |
| Surface Type |
Slotted & Zinc Plated |
| System Notes |
Brake hoses included are designed for stock height vehicles, lifted vehicles may require longer hoses. |
|
Fits OE Front Knuckles & Hubs |
| Template |
O080M |
| Title |
6T Brake System Front |

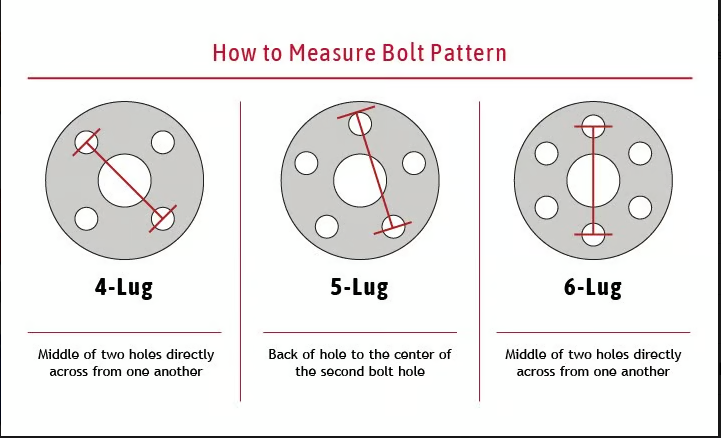

| Wheel Lug/Bolt Pattern |
6x5.312 IN |
| UPC |
Varies |
| Part Number |
Varies |
