BP-51 Kit FR 2.5 in/0-330 lb | 2021+ F150

OME

Product Sku: 5205K

$2,049.90

Overview

Old Man Emu offers a range of tuned and matched integrated suspension kits to ensure the right suspension is selected for how the vehicle is outfitted and the conditions it will encounter. Old Man Emu suspension systems are designed to enhance ride quality, ride control, load-carrying capacity, and ride height. When building an off-road vehicle, it's best to notate the heavy parts that you plan to add. Heavy components will slowly begin to compress your suspension which results in vehicle sag. Choosing an Old Man Emu integrated suspension kit will avoid sag and ride discomfort as our engineers have tuned and matched suspension components for an range of different weights. Old Man Emu has an offering of 3 different shock absorbers to ensure that you can find an integrated suspension kit to suit your every demand, vehicle outfit and road condition. This suspension lift kit comes with Old Man Emu BP-51 shocks. Utilizing the latest off-road technology, the BP-51 is an user adjustable internal bypass shock absorber. With 10 levels of compression and 10 levels of rebound adjustment, BP-51 delivers unmatched comfort and control ; both on and off road. This suspension lift kit is tuned and matched for the Ford F150 to provide 2.5in of lift in the front, with an weight of 0-330lbs. It does not include rear shocks or springs.

Features & Benefits

Tuned and matched suspension kit for increased comfort and control with or without added weight

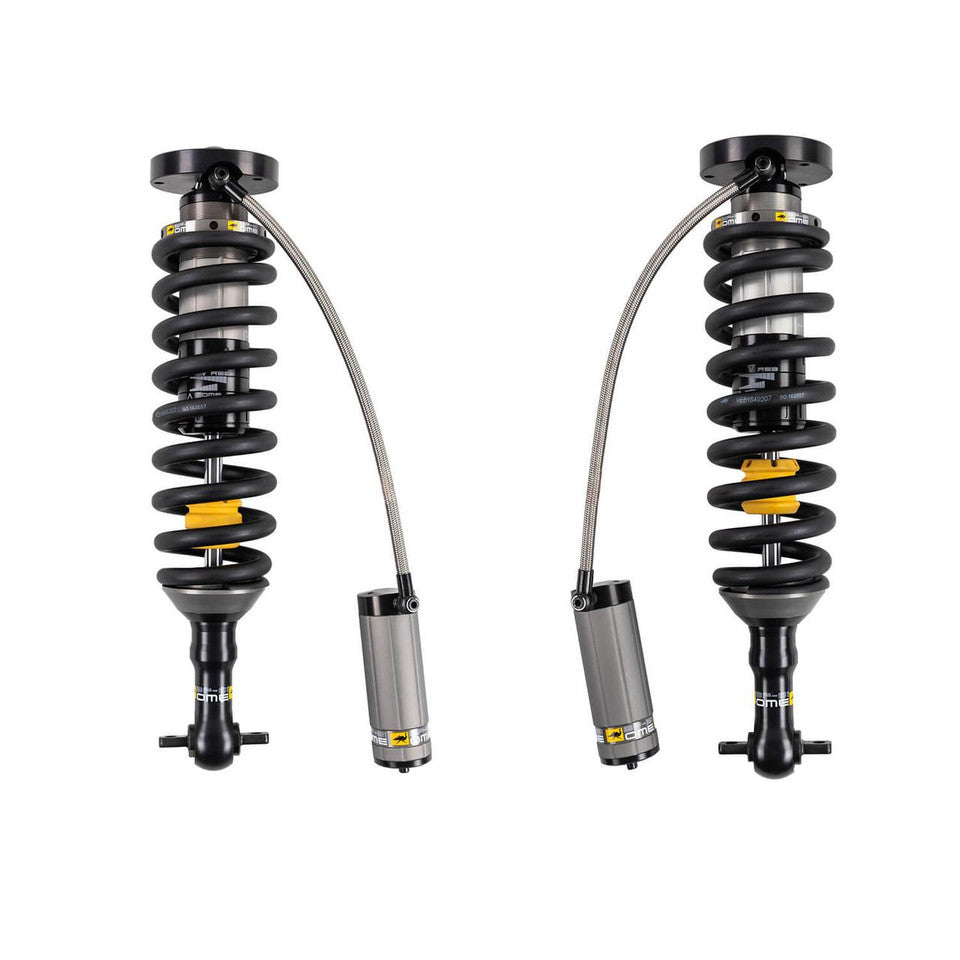

Old Man Emu BP-51 Front coilovers
Internal bypass design technology providing position sensitive damping
On-vehicle tuning with 10 levels of independent compression AND rebound adjustment
Remote mounted oil reservoir to provide additional oil allowing for increased cooling and performance during extended periods of offroad use
6061 grade aluminum shock absorber body with type III, hard anodized finish for increased heat dissipation and corrosion resistance.
Direct replacement for OE and aftermarket suspension systems

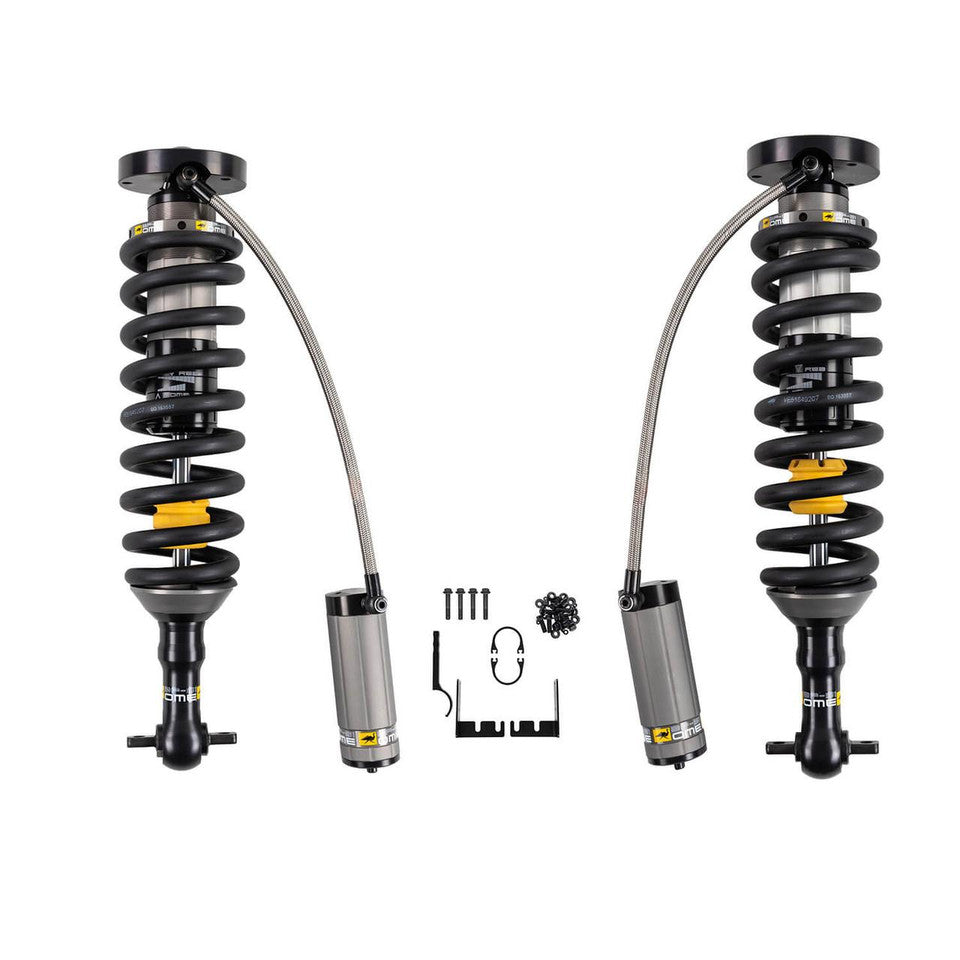

Kit Components

VM80010093 BP-51 Shock Fitting Kit Front, 1
BP5190030R BP-51 Coilover Front Right, 1
BP5190030L BP-51 Coilover Front Left, 1

Specifications

Rear Lift 0 in
Front Lift 2.5 in
Color Grey
Design BP-51
Prop 65Yes
Warranty3 YR

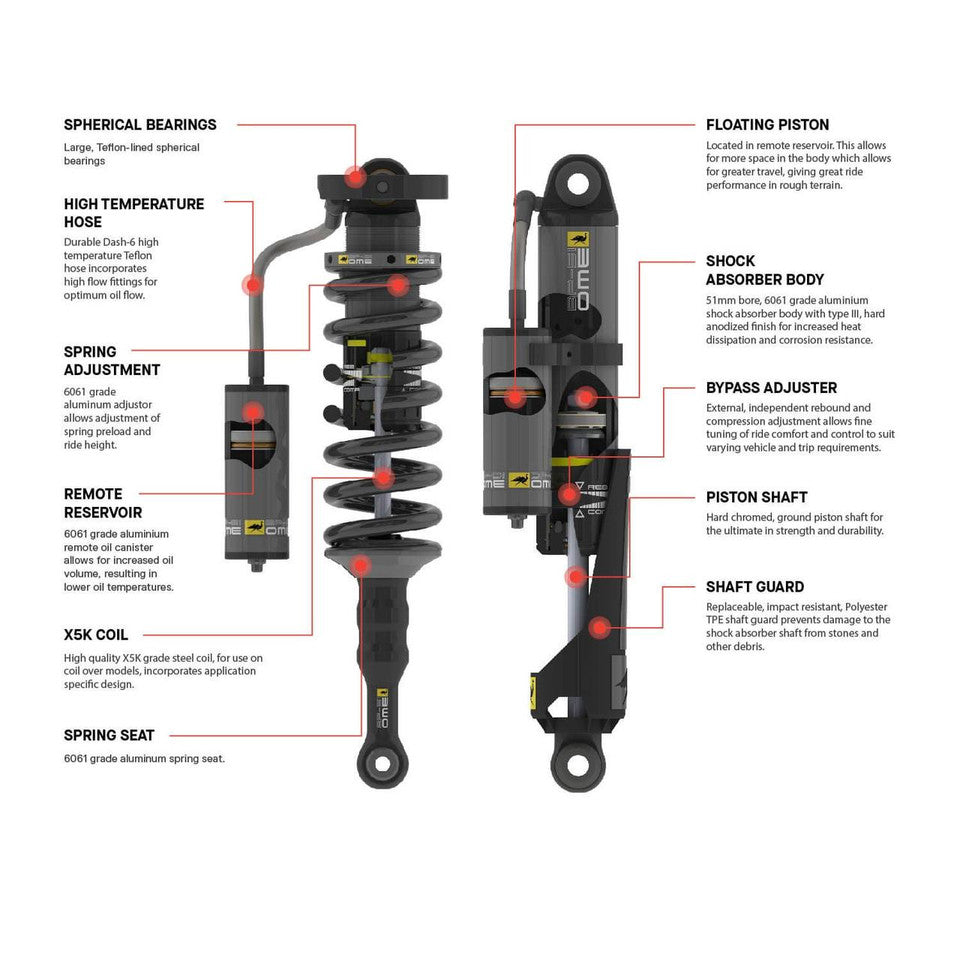

POSITION SENSITIVE DAMPING

Damping increases as you get closer to the end zone, meaning you’ll experience increased control at end zones and comfort at ride height.
ADJUSTABLE

External, independent rebound and compression on-car adjustment allows fine tuning of ride comfort and control to suit varying vehicle, load and trip requirements.
QUALITY ALUMINIUM MATERIAL

51mm bore, 6061 grade aluminium shock absorber body with type III, hard anodised finish for increased heat dissipation and corrosion resistance.
BOLT-IN APPLICATION SPECIFIC

Every BP-51 is expertly engineered to bolt-in to your vehicle, meaning no fitting modifications are required and no adjustments.
