4130 Upper Control Arms | 2021+ F150

Hotshot Offroad

Product Sku: DK-928993-GD

$899.00

Select your options

Gold

Black

Clear

Blue

Purple

Red

Orange

Bronze

Quantity

Description

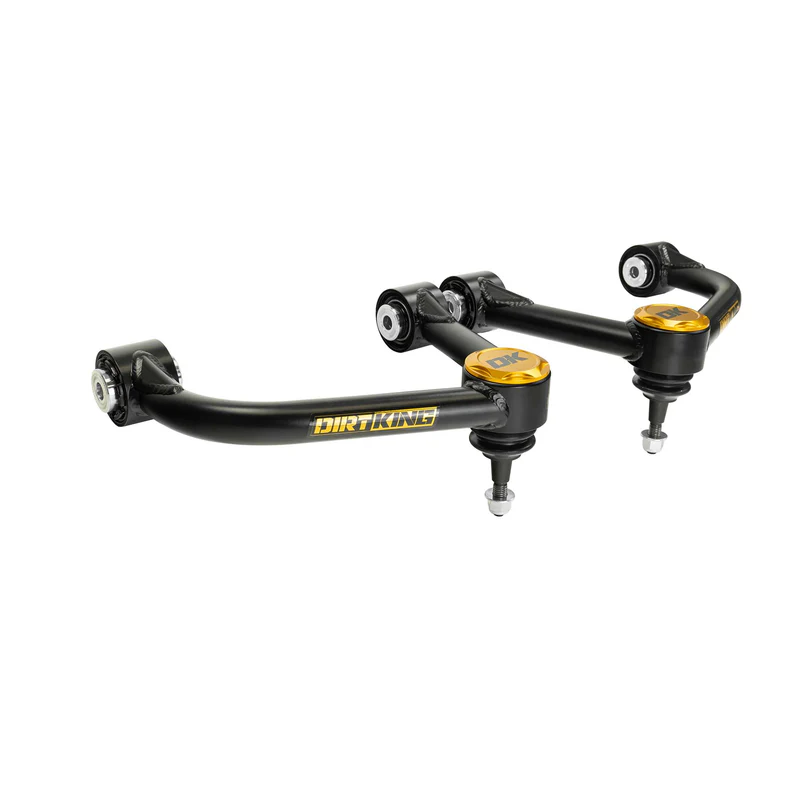

Dirt King 4130 Upper Control Arms – Built to Solve Real Problems

If you drive a 2021–2025 Ford F150 (2WD or 4WD) and you're ready for a suspension upgrade, these 4130 UCAs are for you. We made them to tackle the exact issues we kept running into ourselves—squeaky bushings, joints that need constant attention, and geometry thrown off as soon as you add a lift. Whether you’re daily driving, overlanding, rock crawling, or chasing desert trails, these UCAs handle it all.

These arms feature maintenance-free SilentSpin™ bushings that eliminate grease fittings and unwanted noise, along with heavy-duty Probearing Pro 4 ball joints for high articulation and superior strength. The ball joints are sealed to block out debris and finished with anodized caps. Built to maintain proper alignment from 0–3" of lift, these arms also add roughly an inch of down travel compared to stock, a must-have when paired with aftermarket coilovers like King, Fox, Icon, and more.

Why Go Dirt King?

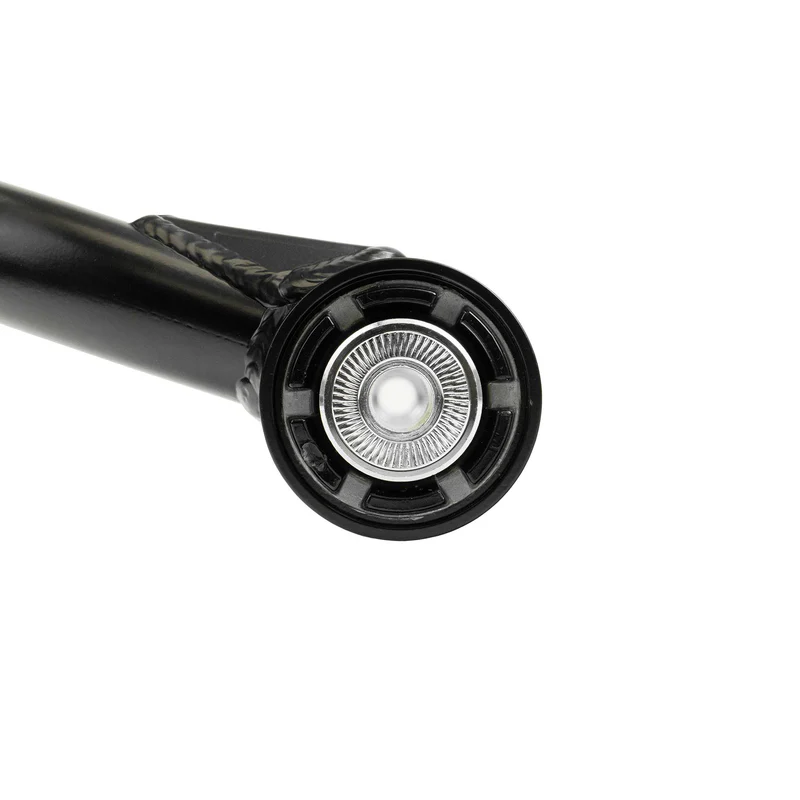

SilentSpin™ bushings — no squeaks or maintenance

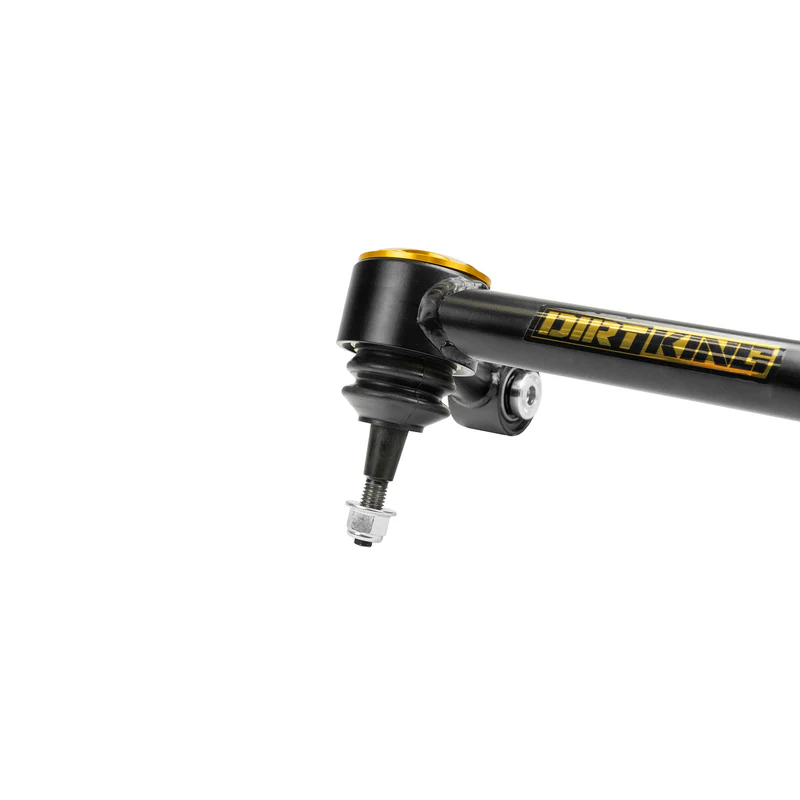

Pro 4 ball joints with sealed dust caps
Rebuildable, USA-made construction
Precision-welded 4130 chromoly tubing
Shipped preassembled for faster installs

Upgrade Your F150 With Confidence
Built and tested in the USA, these 4130 UCAs are engineered for the long haul—perfect for rigs that work hard on weekdays and explore even harder on weekends. It’s the last set of upper control arms you’ll ever need.

Specifications

Amount of Lift: Allows for 0–3” of lift
Track Width: Stock
Maximum Backspacing: 4.75”
Minimum Rim Size: 17”

Note: Do not install with coil spacers combined with extended-length aftermarket shocks.

Whats Included

Chromoly upper control arms
Probearing SilentSpin Hybrid bushings
Probearing Pro 4 Superior Performance Ball Joints

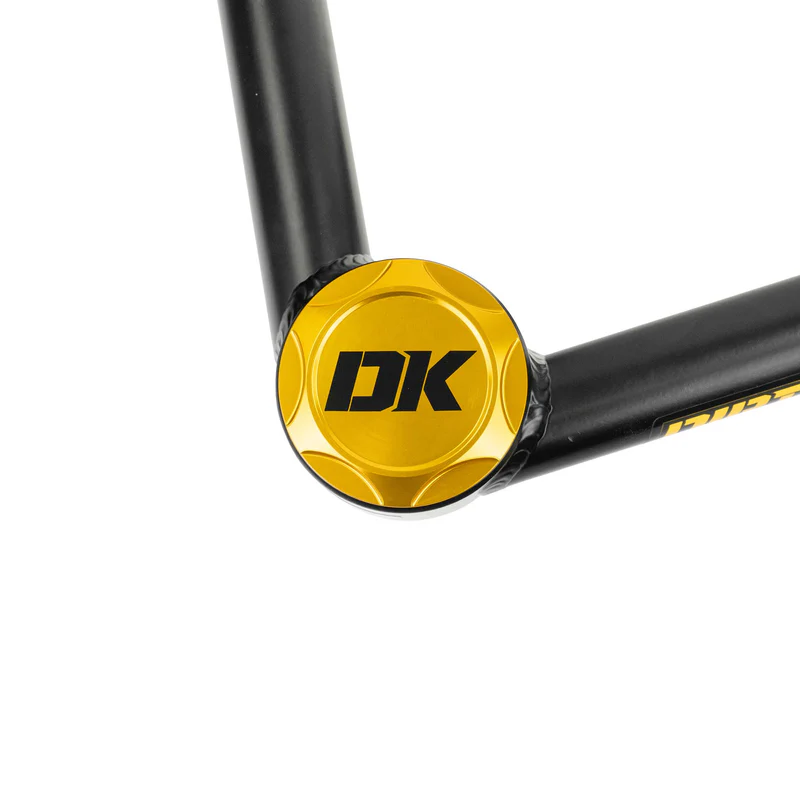

Ball joint caps
Dirt King sticker pack

Compatibility

2021–2025 Ford F150 2WD / 4WD
*Excludes STX model with “Short” spindle

*This product is designed to pair with OEM and Dirt King parts. Compatibility with other brands must be approved by the respective manufacturer.
