SS6 LED Fog Light Kit | 2022+ Tundra

Features

• Direct fitment on 2022-2026 Toyota Tundra.
• Patented TIR Optics for maximum efficiency and output.
• True amber backlight provides unique accent lighting.
• Available in Sport, Pro, and Max power levels.
• Utilizes existing mounting points for simple installation.
• Limited Lifetime Warranty.
• Made in USA with Global Materials.

Overview

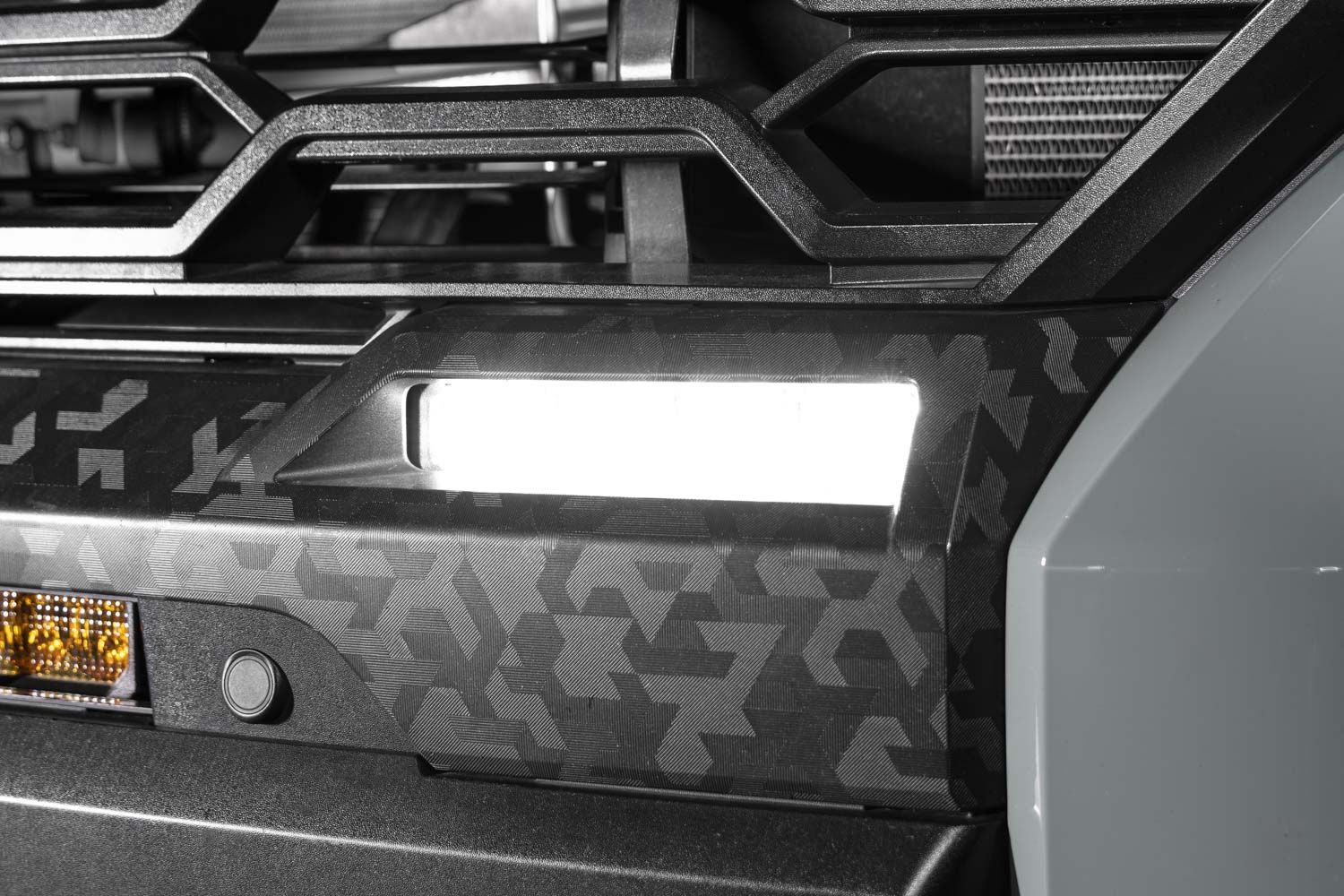

Upgrade your Toyota Tundra with our SS6 LED Fog Light Kit, delivering powerful, road-legal performance and a clean, factory-style appearance. This bolt-on kit mounts a pair of 6-inch Stage Series LED Light Bars using CAD-designed brackets and factory mounting points. No cutting or drilling required! With higher light output, modern optics, and greater intensity than anything else on the market, the new Stage Series Lightbars are the most capable lightbars available today!

Designed for Performance. Each Stage Series Light Bar has been engineered from the ground up with the most modern optical, thermal, and circuit board technologies to provide more output than any other light bar on the market. Unlike reflectors, TIR optics capture and focus nearly all of the light output, shining it only where you need it, without glare or wasted light.

Thanks to copper circuit boards, thermal transfer materials, and optimized heatsinks, these lightbars effectively dissipate heat from the LED chips, allowing them to run at maximum power, producing serious light output.

Functional Beam Patterns. Each beam pattern has been fine-tuned for real-world conditions to perform even better than before.

SAE Fog uses our distinctive FineLine optic, which provides an exceptionally wide pattern. The SAE Fog optic shines with a 90x10 degree pattern to fully illuminate the area directly in front of your vehicle. They are legal for on-road use as fog lights (Please check your local laws and regulations for aiming, installation, and applicability).

Amber Backlight. The SS6 LED Light Bars included in this kit come with an integrated amber backlight that fully illuminates the TIR optic, providing distinctive accent lighting and enhanced visibility when parked or stopped on the trail.

White or Yellow. This Stealth LED Light Bar Kit is available in a cool white or selective yellow color. The white is a 6000K color temperature, which is a true cool white output, and matches most factory LED lighting. The selective yellow is a 3000K color temperature, great for high contrast in poor weather or a distinctive look on the road.

Choose Your Power Level. The SS6 LED Light Bar is available in three different power levels. All options use high-intensity, automotive-grade LED emitters and TIR optics for unmatched focus and output. The Sport model offers the best bang for your buck, while the Pro model takes things a step further with a noticeable boost in power. The Max model is designed with cutting-edge automotive emitters for both high power and extreme intensity, using the same Osram HX Boost LEDs found in our Max power level SS3 and C2 2.0 LED Pods.

Proven Reliability. Stage Series LED lighting has been extensively tested for long-term operation from -40 to 185 degrees F, along with vibration, moisture intrusion, and corrosion testing. All of these tests are completed to SAE standards, just like factory components. They've also been put to the test on-road by racers and enthusiasts alike.

Experience. After over a decade in business, Diode Dynamics is one of the most trusted names in automotive LED lighting. We directly manufacture and engineer our own products in the United States using globally sourced materials, allowing for higher quality and performance, with the newest and brightest LED technology. No matter what you're driving, we pride ourselves in offering only the best possible LED solutions. Please contact us if you'd like to discuss your lighting project!
