C2 2.0 Flush Mount LED Pod

Features

• Ultra-compact design for tight mounting spots
• Patented TIR optics for maximum output
• Up to 95% more power than C2 1.0
• Available in Sport, Pro, and new 3900-lumen Max power levels
• Limited Lifetime Warranty
• Made in USA with Global Materials

Overview

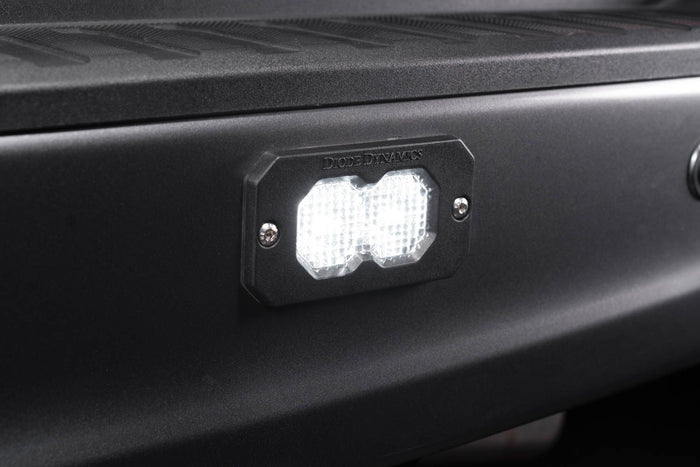

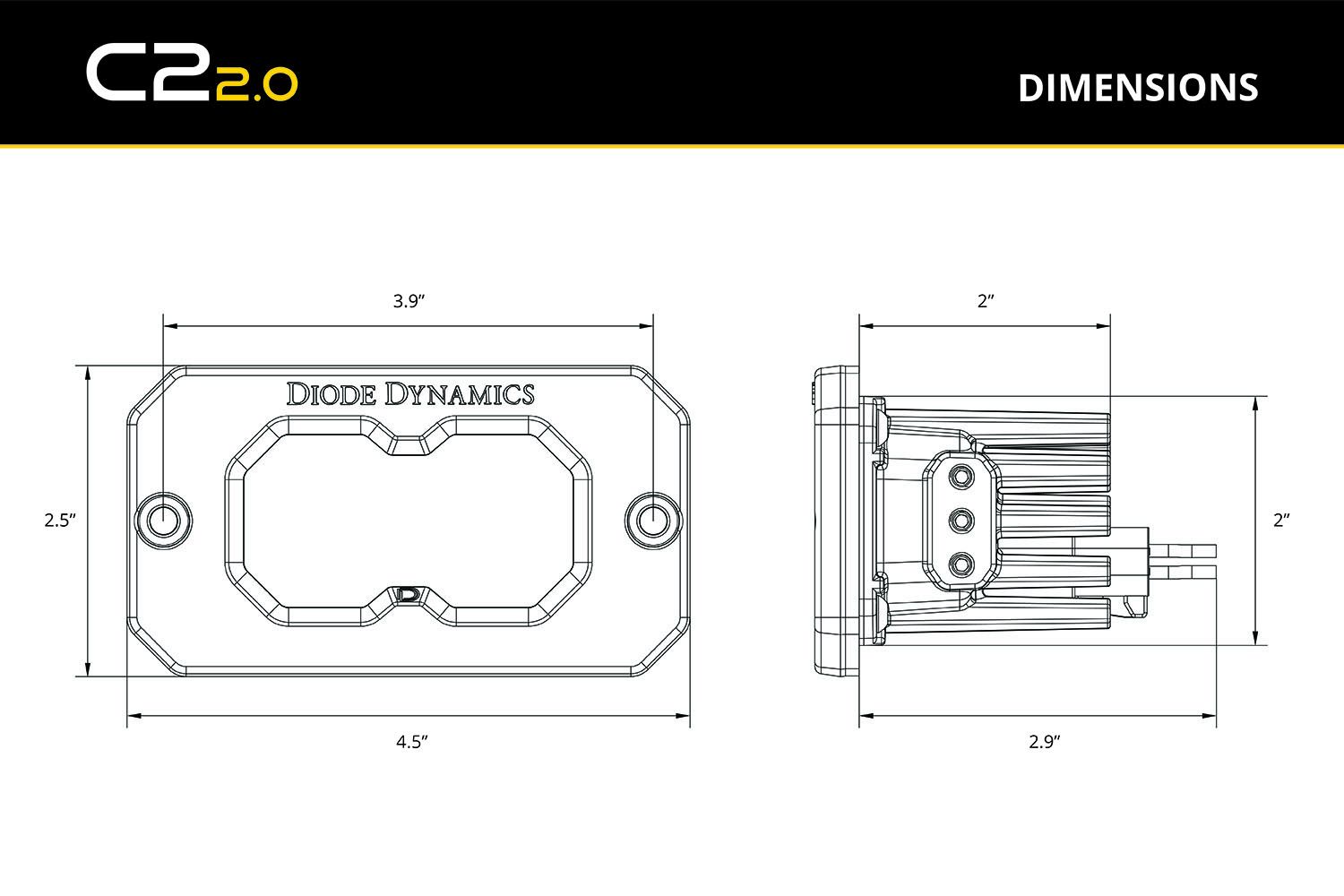

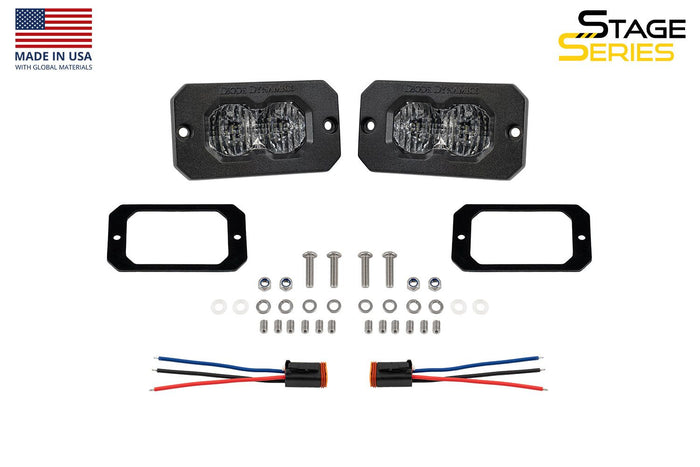

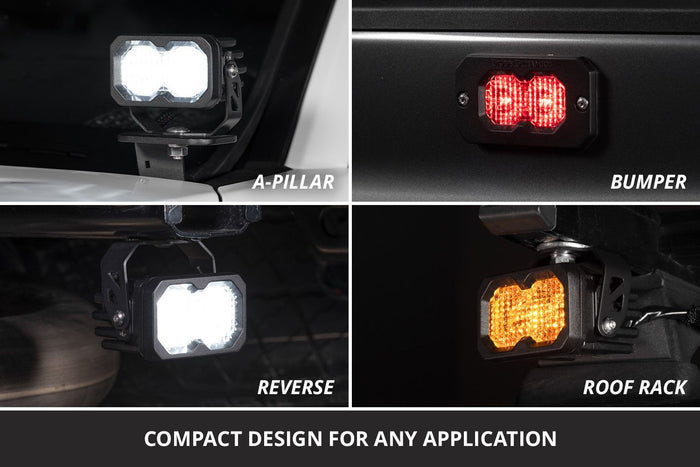

Looking to add C2 LED Pods to your bumper, cargo area, trailer, or roof rack? The C2 2.0 Flush Mount Pod Kit is the perfect solution. Building on the popularity of the original C2 LED Pod, the newly redesigned C2 2.0 packs even more power and light output into the same 2-inch footprint. The included flush mount kit allows for low-profile installation on any flat surface, giving you a clean look while protecting your pods from damage.

Re-Engineered From the Inside Out. The C2 2.0 may look familiar, but under the hood, everything has changed. A new copper-core circuit board is bonded directly to the LED chips, dramatically improving thermal efficiency and overall performance. The powdercoated aluminum housing has also been redesigned to dissipate more heat than ever before, resulting in higher power and light output.

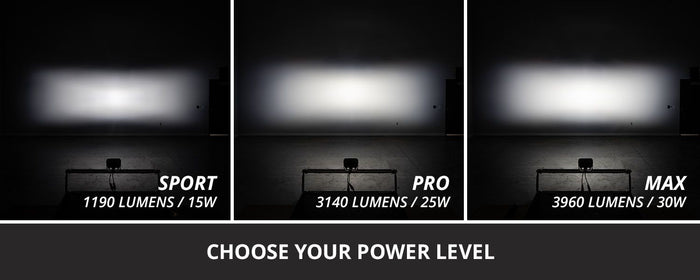

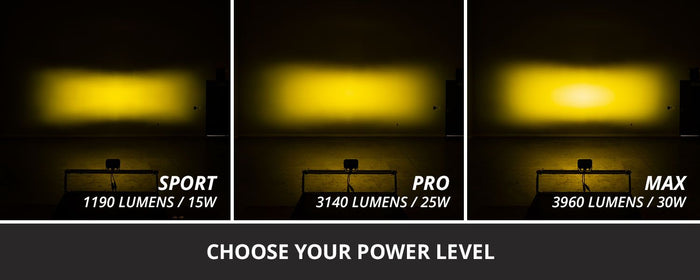

Choose Your Power Level. The C2 2.0 LED pod is now available at three different power levels. All options use high-intensity, automotive-grade LED emitters, and TIR optics for unmatched focus and overall output. The Sport model offers the best bang for your buck with high-intensity LEDs, while the Pro model takes things further with a noticeable boost in total power.

The new Max power level uses the same Osram HX Boost LEDs found in our highest-output SS3 LED pods, delivering 3900 raw lumens. That’s serious brightness from a pod that still fits in the palm of your hand.

Focused Performance. Our patented TIR (Total Internal Reflection) optics in the C2 2.0 have been re-engineered for up to 120% more intensity and more usable light output compared to the C2 1.0. The TIR optics harness all of the light from the LED and direct it precisely where you need it, cutting glare and boosting efficiency. Each beam pattern has been fine-tuned for real-world conditions to perform even better than before.

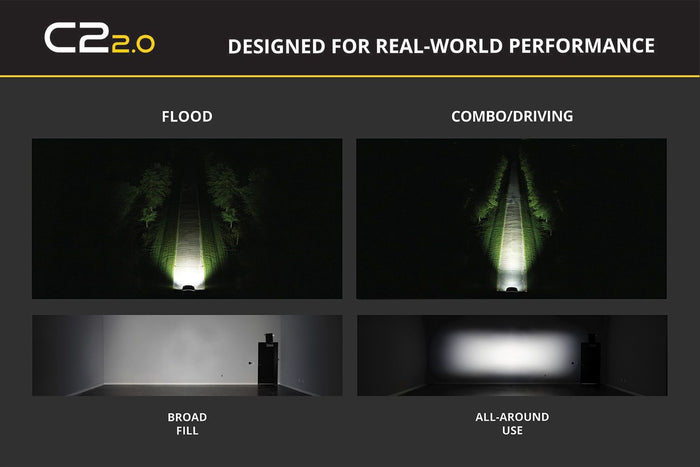

The Combo/Driving pattern has been completely redesigned to deliver a better blend of width and distance compared to the legacy model. The C2 2.0 Combo/Driving optic uses advanced pillow optics to shine light downrange in a rectangular pattern of 55x20 degrees. The Combo/Driving pattern is great for all-around use.

Flood pattern provides a uniform, even illumination with a broad 70x45 degree spread of light. Unlike generic "flood" lights that are simply a heavily diffused spotlight, our flood pattern uses advanced pillow optics on the outer lens surface, to provide a true optically designed spread, for even illumination throughout. It is perfect to use as a backup light, for lighting up anything at low speeds, or for trailers, campsites, and work areas.

Backlight Functionality. These C2 2.0 LED Pods include a distinctive red backlight, which serves as a low-power accent light. The backlight fully illuminates the TIR optic, providing a unique and modern look. The red color matches OEM taillights and boosts rear visibility.

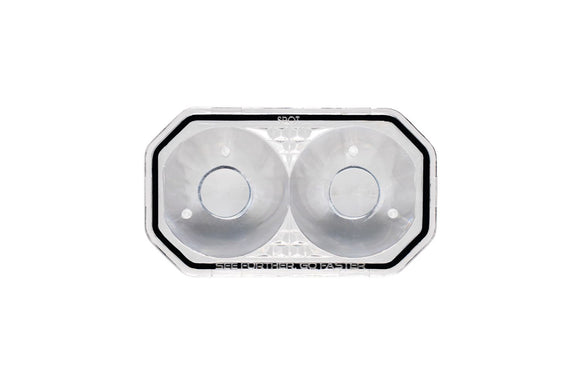

Swappable Optics and Colors. Just like before, the lenses on the C2 are swappable. But here’s what makes the C2 2.0 even better–they now use the same high-output Cool White LED chips for both white and yellow LED pods. This means changing your optic and color is just a simple lens swap away. No need to worry about color variation when switching from yellow to white!

Proven Reliability. Stage Series LED lighting has been extensively tested for long-term operation from -40 to 185 degrees F, along with vibration, moisture intrusion, and corrosion testing. All of these tests are completed to SAE standards, just like factory components. They've also been put to the test on-road by racers and enthusiasts alike.

Experience. After over a decade in business, Diode Dynamics is one of the most trusted names in automotive LED lighting. We directly manufacture and engineer our own products in the United States using globally sourced materials, allowing for higher quality and performance, with the newest and brightest LED technology. No matter what you're driving, we pride ourselves in offering only the best possible LED solutions. Please contact us if you'd like to discuss your lighting project!
