Reverse Light Wiring Kit (w/ Running Light)

Features

• Powers Diode Dynamics lights with backlight functionality.
• Connects to vehicle wiring for simple, everyday operation of lights.
• High capacity 14AWG & 18AWG wiring.
• Dual Deutsch DT output connectors.
• 10A waterproof fuse to safeguard the electrical systems in your lights.

Overview

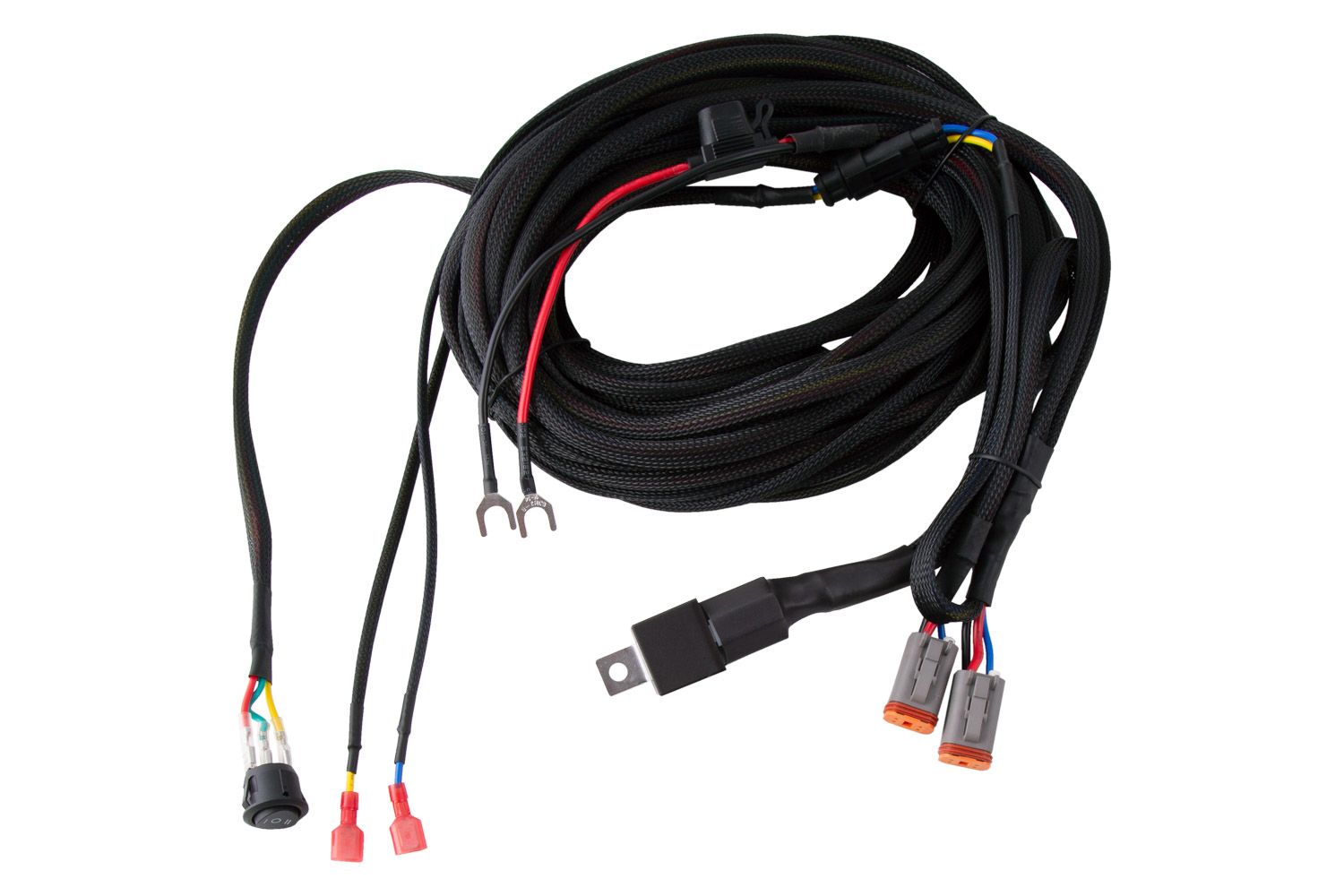

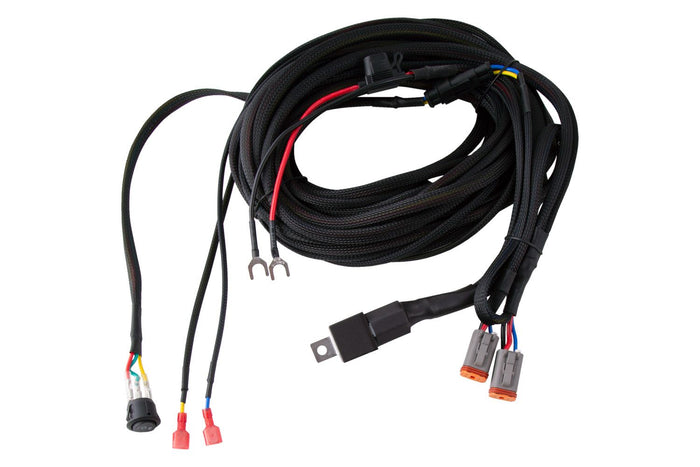

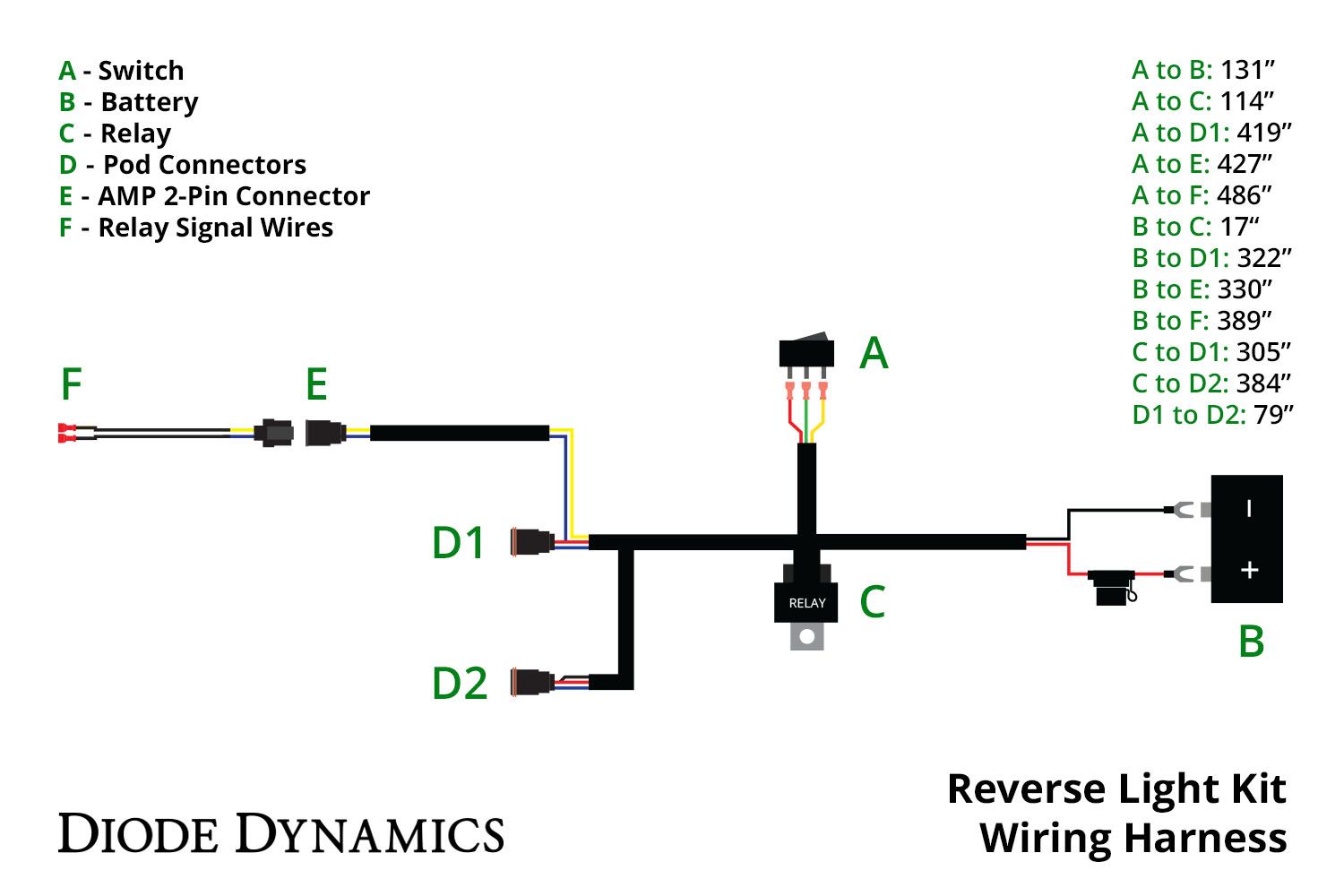

Easy Operation. This wiring harness allows you to connect your Diode Dynamics lights with backlight functionality to your vehicle's wiring for simple, everyday operation. When paired with our LED pods with a white main beam and red backlight, this harness allows your lights to operate as an additional red accent light, with your tail lights, and then automatically switches to a high-power backup light when your vehicle is in reverse. The included toggle switch allows you to override the vehicle signals and turn on the main beam anytime.

This harness safely powers up to 5A of auxiliary lamps per DT connector. Please refer to the current draw data below.

• C1 Sport: 1.2A
• C1 Pro: 1.7A
• SSC2 Sport: 0.6A
• SSC2 Pro: 1.75A
• SS3 Sport Main Beam: 1.1A, Backlight: 0.03A
• SS3 Pro Main Beam: 2.7A, Backlight: 0.03A
