Stealth 30" Light Bar Kit | 16-23 Tacoma

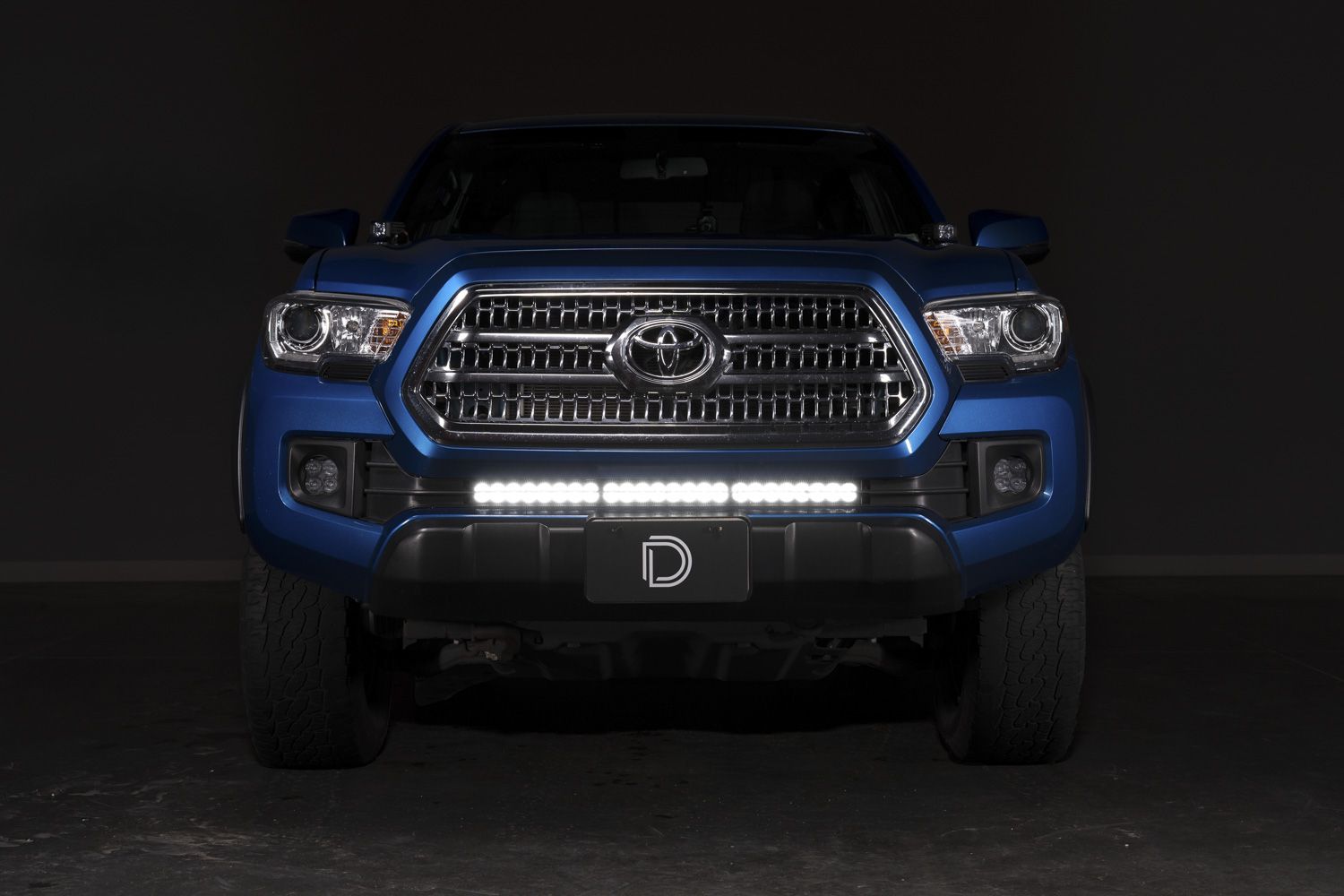

Perfect fitment. The Stealth LED Light Bar Kit for the 2016-2019 Toyota Tacoma from Diode Dynamics allows you to easily mount a 30 inch light bar in the factory lower grille opening. These application-specific brackets were CAD-designed to install using factory mounting points. No cutting or drilling required! This kit retains the factory lower grille for a clean, OEM-like appearance. Additionally, if preferred, the lower grille can be modified to make the light bar more visible.

Designed For Performance. Using optical simulation modeling, Diode Dynamics Stage Series light bars have been designed for maximum functionality, with compact size, custom-engineered TIR optics, and a useful beam pattern, all in a highly durable package. Our light bars shine light in a highly-functional and useful beam pattern, much more focused than older LEDs on the market.

Functional Patterns. All Stage Series beam pattern options were designed with optical simulation modeling, to shape the output in a highly-functional beam pattern. No matter what your auxiliary lighting needs are, there is a Stage Series optic for you!

• The Driving pattern was designed to supplement your high beams. Rather than a simple spot pattern, the Stage Series Driving pattern has a rectangular 20Wx8H degree pattern that is far more useful for directing light downrange at high speeds.
• The Flood pattern was designed to provide uniform, even illumination and a full 80Wx50H degree spread of light. Unlike generic flood light optics that are simply a heavily diffused spot, our flood optic is a true optically designed spread, resulting in the biggest spread in the industry! It is perfect for lighting up anything at low speeds, a backup or reverse light, or to light up a worksite.
• The Combo pattern combines both the Driving and Flood optics. It shines light downrange in a focused, rectangular 20Wx8H degree pattern while also illuminating area around it in a full 80Wx50H degree spread. The Stage Series 30 Inch Combo Light Bar features three driving lenses in the middle with two flood lenses on the outer edges.

Experience. After over a decade in business, Diode Dynamics is the most trusted name in automotive LED lighting. Unlike every other LED distributor, we assemble and engineer products ourselves in the United States, for high quality and fast time-to-market of the newest and brightest LED technologies. We pride ourselves in offering only quality LED products, that will exceed your expectations.
Features

• Bar Type One (1) Single Row Straight
• Bar Length 30 Inch
• Lux 1690

• Brackets Included - Yes
• Direct fitment on 2016 and up Toyota Tacoma
• Allows you to mount one 30 inch light bar in the lower grille opening
• CAD-designed for perfect fitment and OEM-like appearance
• Utilizes existing mounting points for easy installation - no cutting or drilling required
• Highly durable powdercoated steel construction
• Plug-and-play wiring harness included to power light bars

What's Included In the Box:

• Two (2) Application-Specific Heavy-Duty Steel Brackets for Installation on 2016 and Up Toyota Tacoma
• One (1) SS30 Stage Series 30 Inch Light Bar
• One (1) Heavy Duty Single-Output Harness
• All Necessary Hardware
• Installation Guide
• Quantity: One (1) Warranty: 3 year warranty
• 100 percent Satisfaction Guarantee

Fitment

• Make: Toyota
• Model: Tacoma
• Years: 2016, 2017, 2018, 2019
• Electrical Compatibility: No electrical issues (tested and confirmed)

Specifications

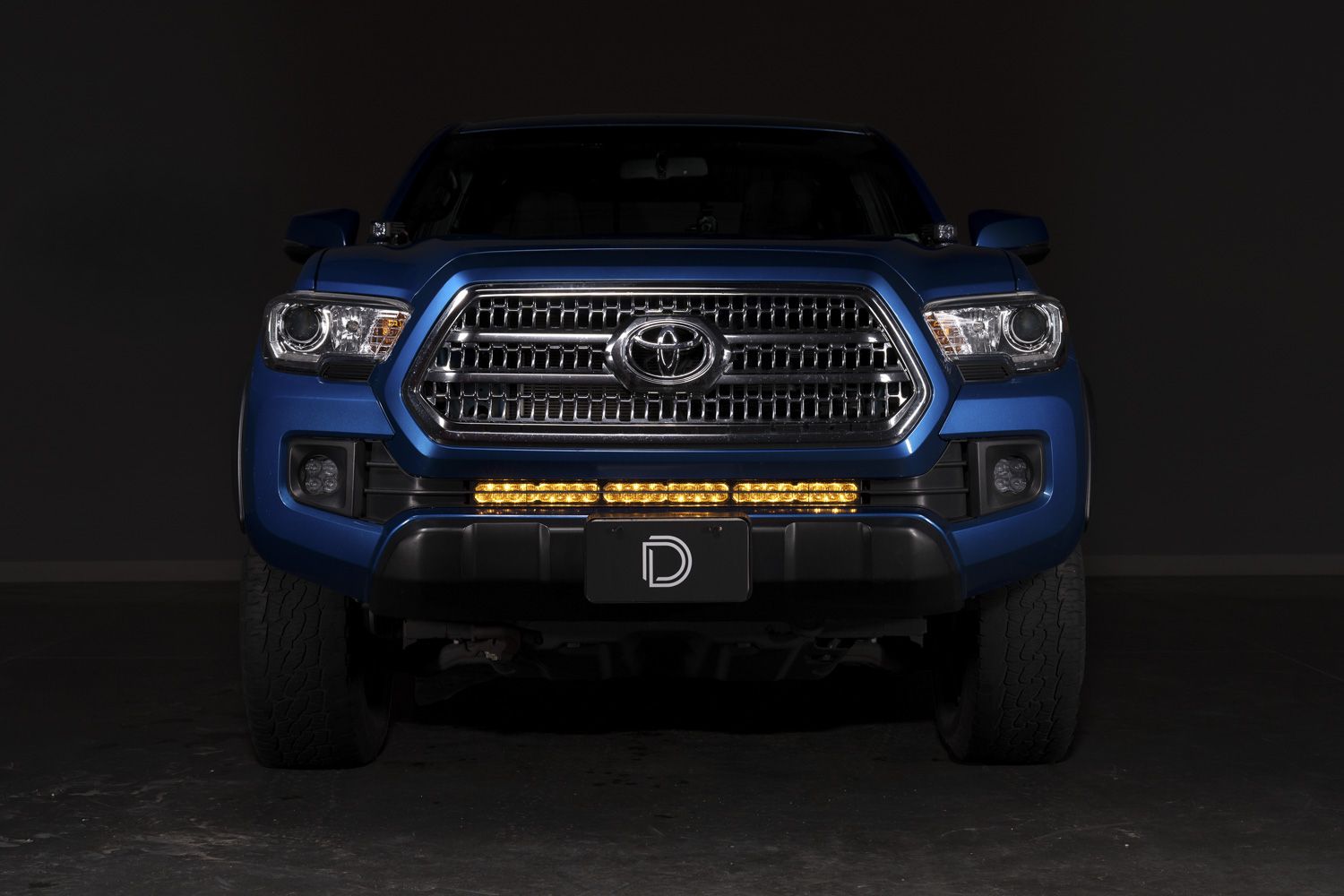

• Color Temp (CCT): 2000K, 6000K
• Beam Angle: Driving, 20 Degree x8 Degree, Combo (Driving and Flood), Flood, 80 Degree x50 Degree
• Power (watts): 137.2
• Operating Voltage: 9-16V
• Current (amps at 13.2V): 9.8
• Bracket Thickness: 12 ga
• Polarity: Polarity Specific
• Operating Temperature: -40C to 85C (-40F to 185F)
• LED Emitter: Luxeon Z ES
• Connector(s): Deutsch DT Input
• Materials: Aluminum PCB, Polycarbonate Lens, Aluminum Heatsink
• Cooling: Passive, heatsink
• Intrusion Ratings: IP68 Waterproof
