BantamX Touchscreen Universal Accessory Control System

Description

Manage up to eight powered accessories from a compact in-cab touchscreen while the BantamX module handles the high-current work. The display adds circuit amperage, battery-voltage, and module-temperature feedback along with customizable switch labels and layouts.

Key Features

• Solid-state power control reduces reliance on conventional relays and fuses
• Eight programmable circuits rated up to 30 amps each
• One data cable connects the power module to the in-cab switch panel
• Bluetooth access supports setup and compatible mobile-app control
• Low-voltage cutoff and self-resetting fault protection help protect the vehicle and connected equipment
• Touchscreen displays per-circuit current, vehicle voltage, and controller temperature
• A single touchscreen can manage as many as four daisy-chained BantamX modules

Specifications

• Eight circuits, up to 30 amps per circuit at 12.5 VDC
• Compatible with 12V and 24V systems
• 100-amp inline main fuse
• Available with 36-inch or 84-inch battery cables
• Manufacturer warranty: 5 years

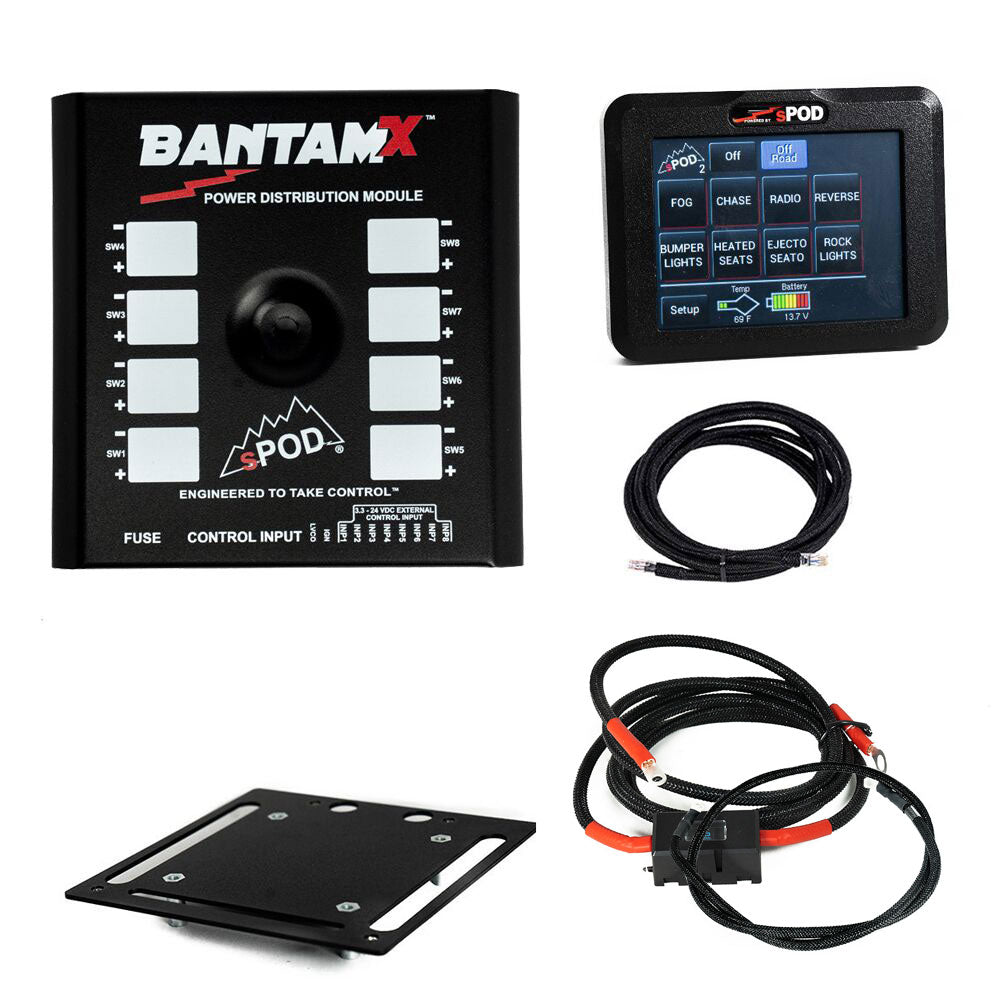

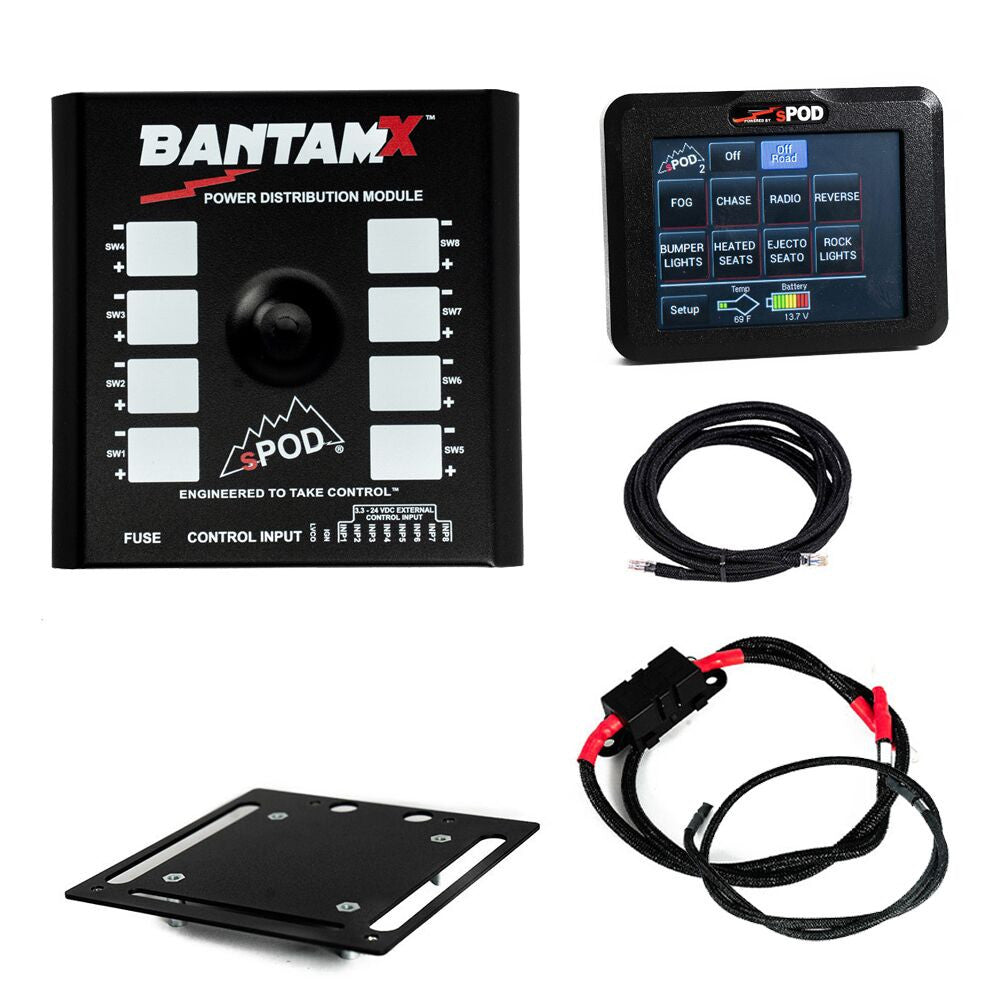

What's Included

• BantamX power module
• Touchscreen controller and mounting bracket
• Selected battery-cable set
• Controller cable
• Universal mounting bracket and installation hardware

Important Notes

• The touchscreen may not operate below 20°F; warm the vehicle cabin before use in very cold conditions.
