AB15R Rear Bump Stops | 25+ 4Runner | Lexus LC 200/250/300 | 22+ Tundra | 24+ Tacoma | 23+ Sequoia
Sold as one pair, two bump stops
COMPATIBLE VEHICLES
Toyota 4Runner Gen 6
Toyota Land Cruiser 200, 250, 300 Series
Toyota Sequoia Gen 3
Toyota Tacoma Gen 4
Toyota Tundra Gen 3
Lexus 600/700 Series
Product Height
AHC Equipped LX600/700, 6G4R, LC250, 4GTaco, LC200: 50 mm
Regular Length Shocks Tundra, Sequoia, LC300: 75 mm

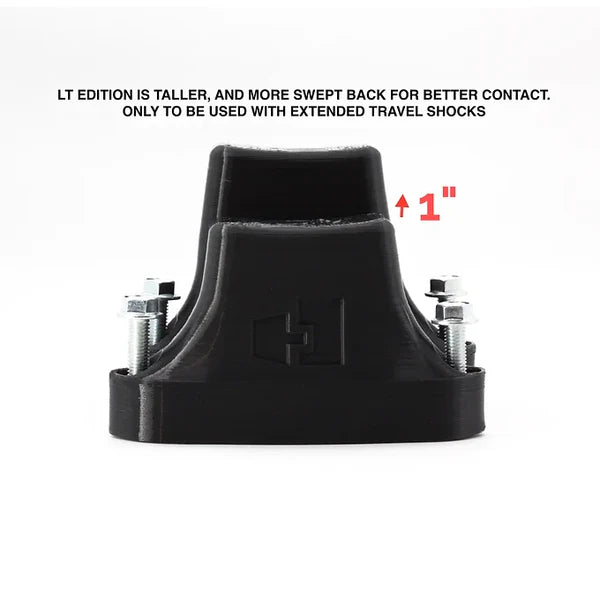

Extended Travel Shocks 6G4R, LC250, 4GTaco, LC200: 75 mm
Extended Travel Shocks - Tundra, Sequoia, LC300: 105 mm
Long Travel Shocks - 6G4R, LC250, 4GTaco, LC200: 105 mm
Hardware Included

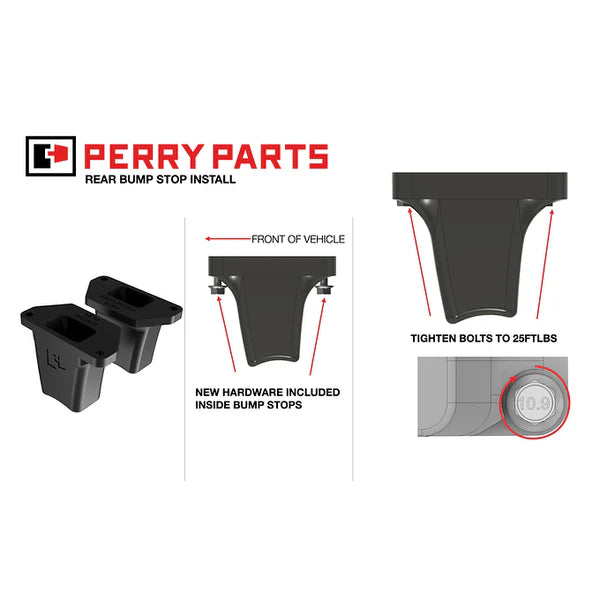

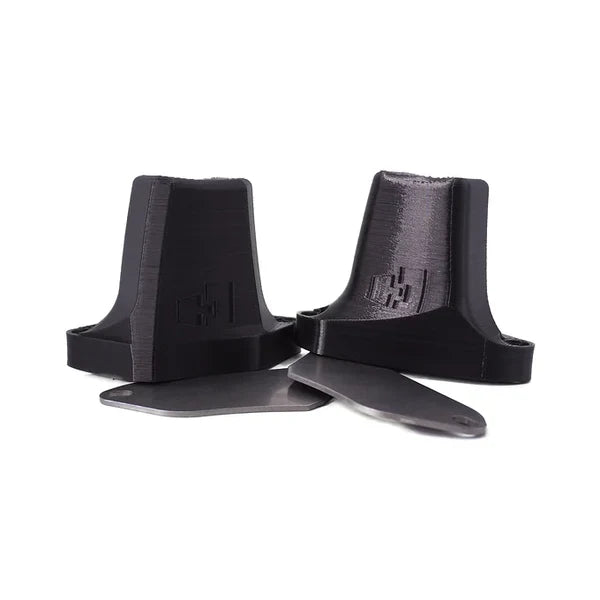

Four threaded sleeve inserts, four bolts, and two mounting plates are included as pictured
The faster you hit our parts, the harder they push back. Helping to absorb suspension travel and provide a "bottomless" feel when you're pushing the limits.
Low speed Dynamic response
On low speed compression, our bump stops allow full suspension travel, while preserving a hard stop to prevent overtravel. Air is forced through the internal ports, reducing the total response force, and enabling a softer ride.
High Speed Dynamic response
On high speed compression, our bump stops generate internal air pressure, increasing their force feedback by up to 37%. This provides maximum support when you need it.
Rebound rate is controlled, while air is pulled back into the part as it returns to shape. This reduces the workload on the shock absorbers to settle rebound speed.
Performance:
Unmatched energy absorbtion
We reached out to an independent third party [Midwest Suspension LLC] to test our product vs our competitors to fully understand how they all stack up, using industry leading test hardware to study their dynamic, variable rate nature.
