Nacho Switch System
Product Sku: NAC11SW
Description

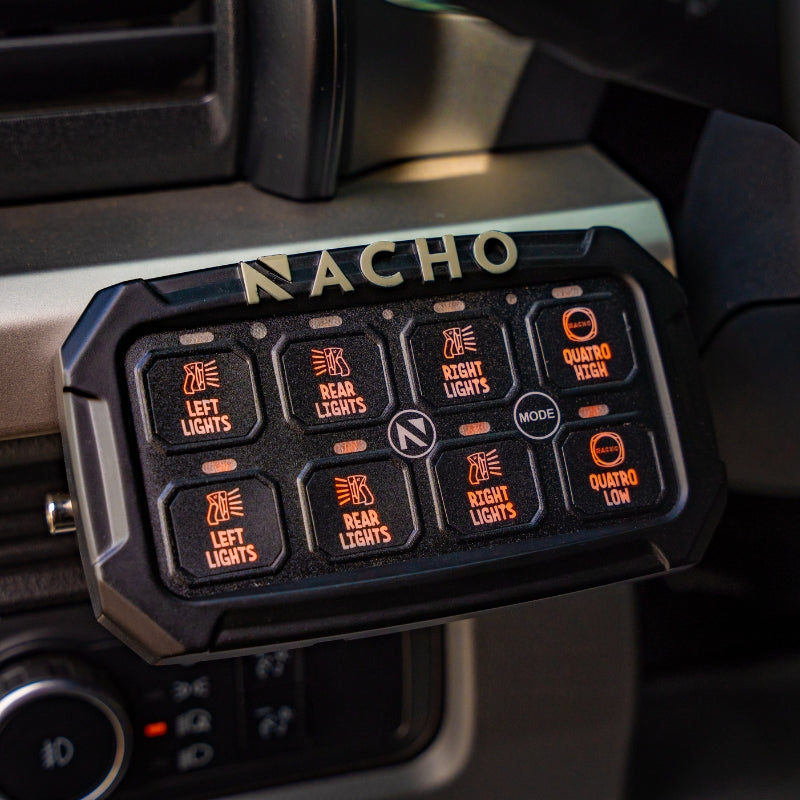

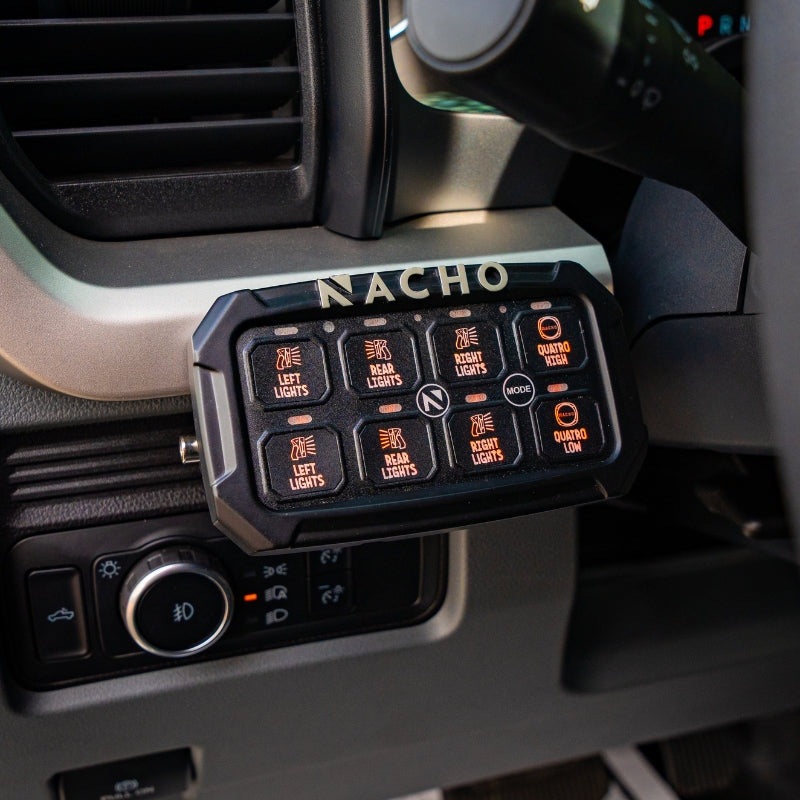

Bring lighting and other powered accessories under one clean, programmable control panel. This eight-circuit system combines customizable RGB illumination with solid-state protection and user-selectable switch behavior for street, trail, work, or camp setups.
Key Features
- Eight independently controlled accessory circuits
- Selectable on/off, momentary, and strobe functions
- RGB backlighting with automatic brightness adjustment

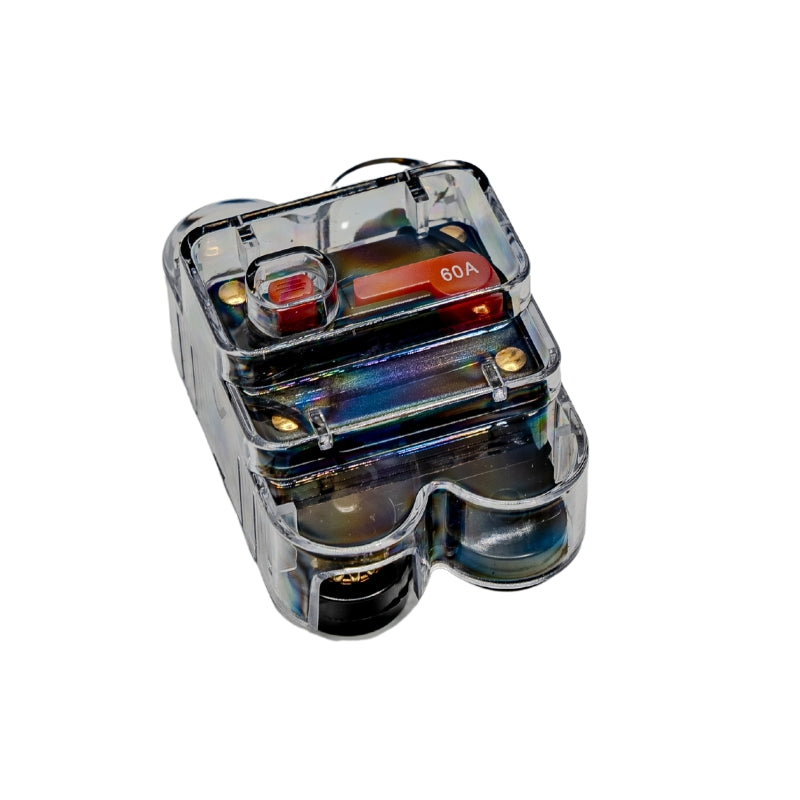

- Resettable circuit protection with safeguards for reverse polarity, over-voltage, and over-current
- IP65-rated panel and a 60-label icon sheet for a finished installation
Specifications
- Maximum system current: 60 amps
- Operating voltage: 12 or 24 VDC
- Maximum rated output: 720 watts at 12V / 1,400 watts at 24V
- Weather resistance: IP65
- Manufacturer part number: NAC11SW

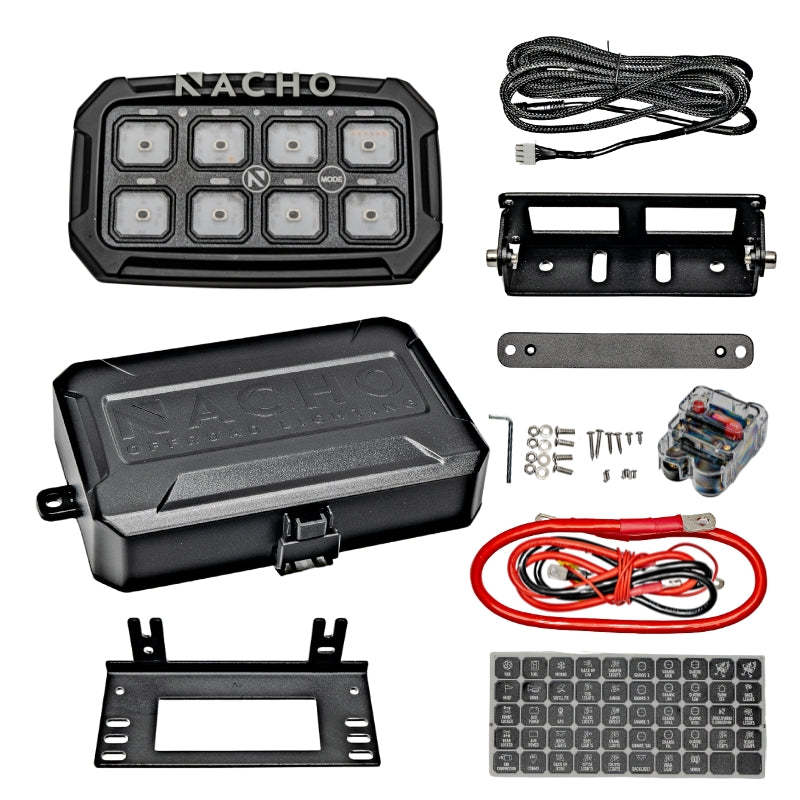

What's Included

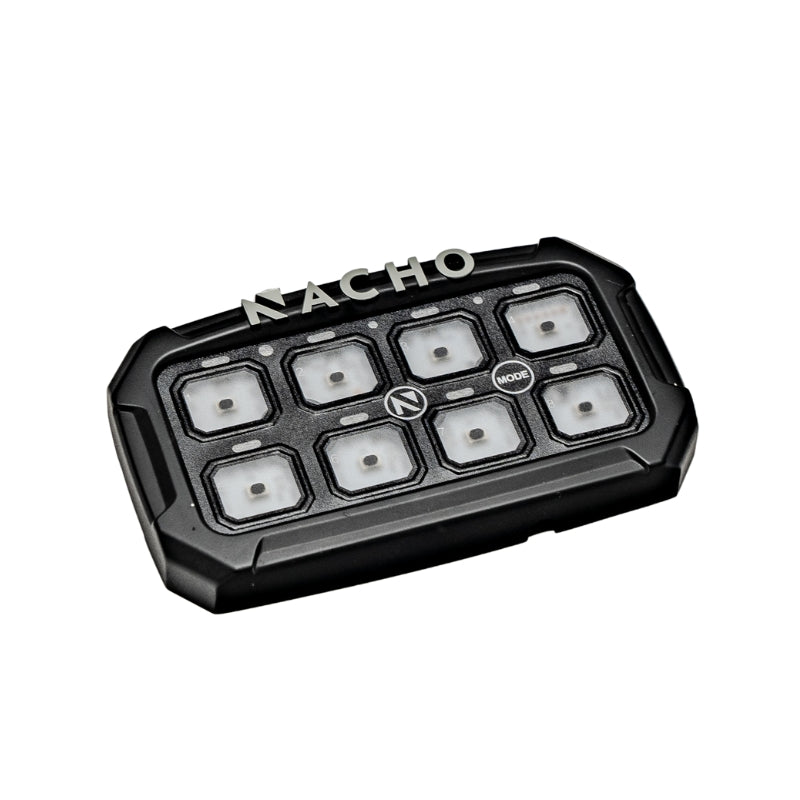

- Eight-button switch panel

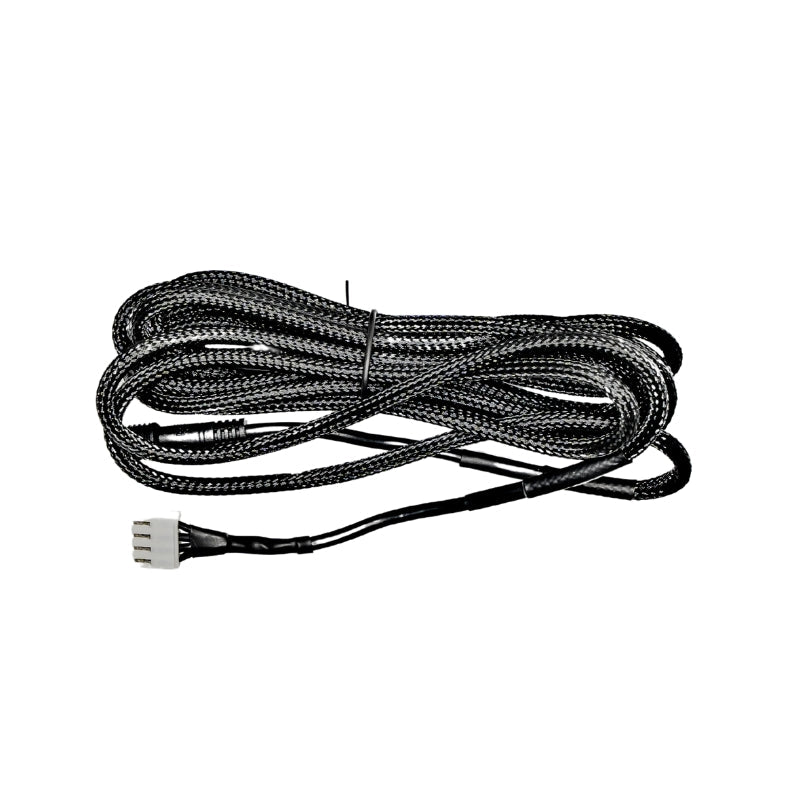

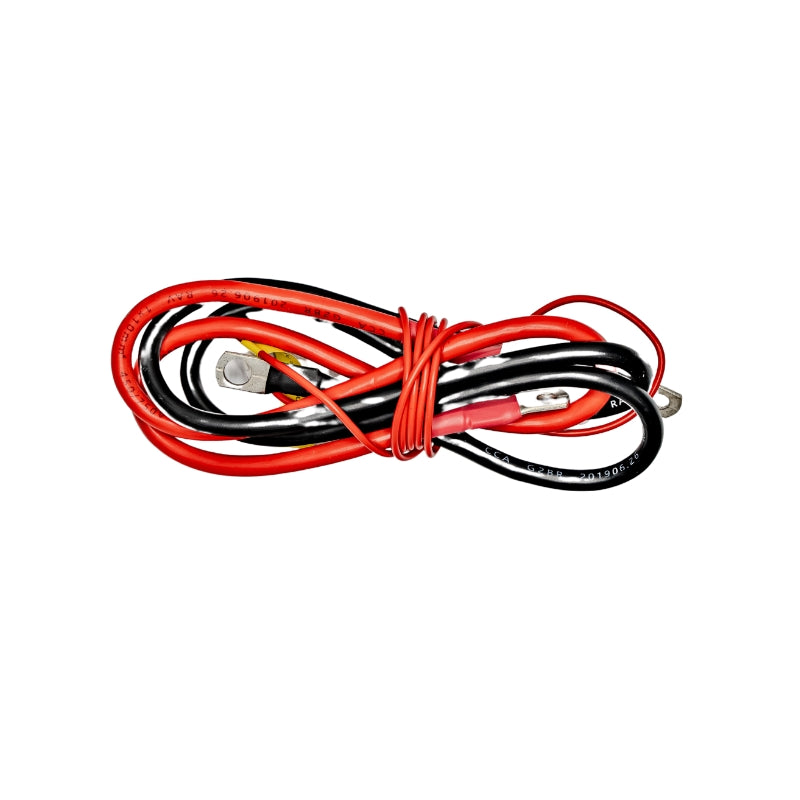

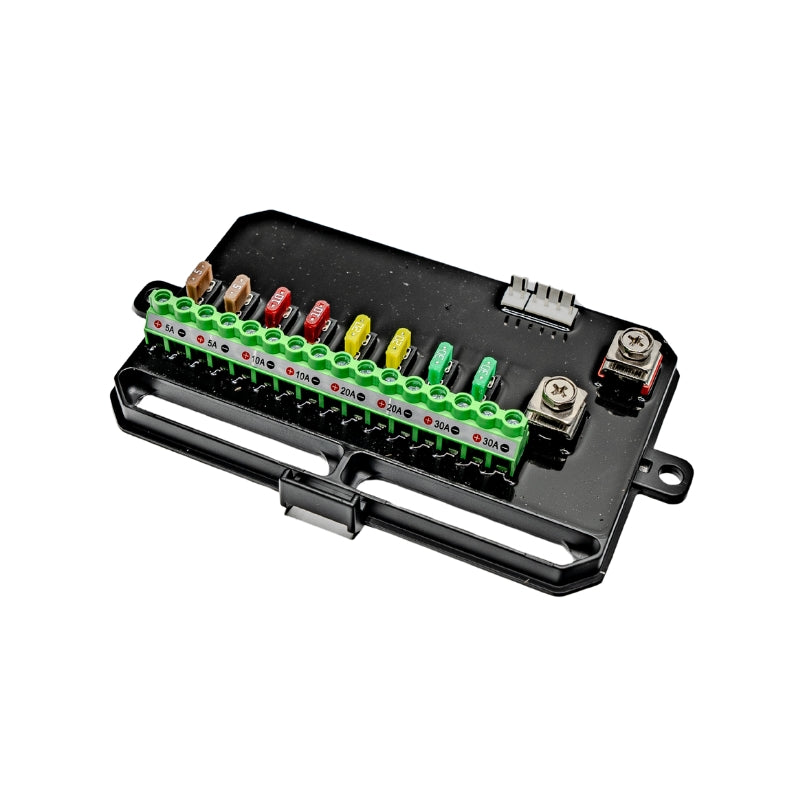

- Solid-state power module and wiring components

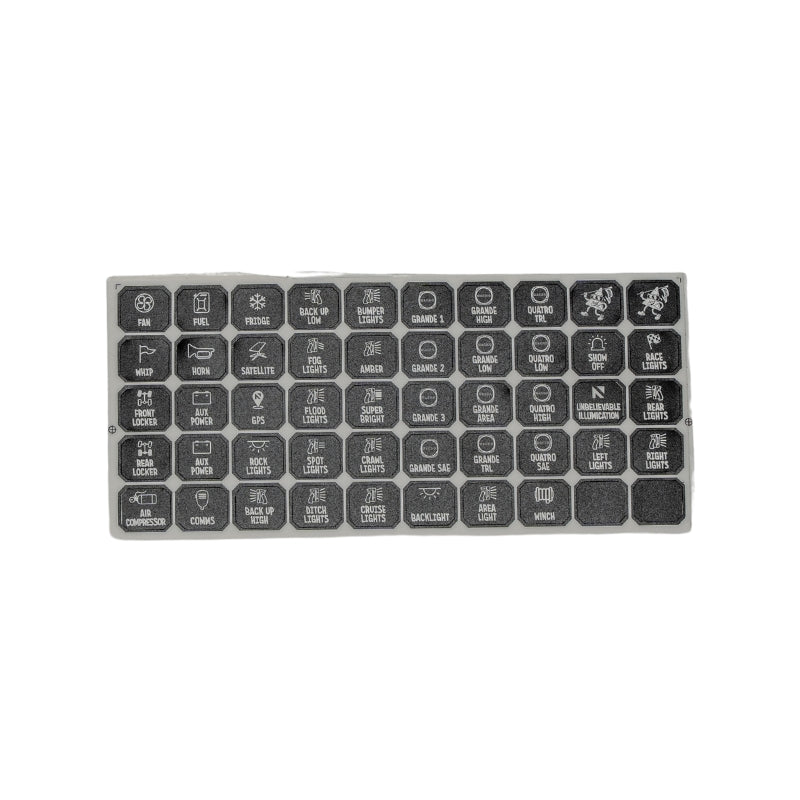

- 60 switch-icon labels
- Installation hardware
Important Notes
- Universal product; confirm mounting space, circuit load, and wire sizing before installation.
