5100 Adjustable Front Struts | 15-20 F150

Description

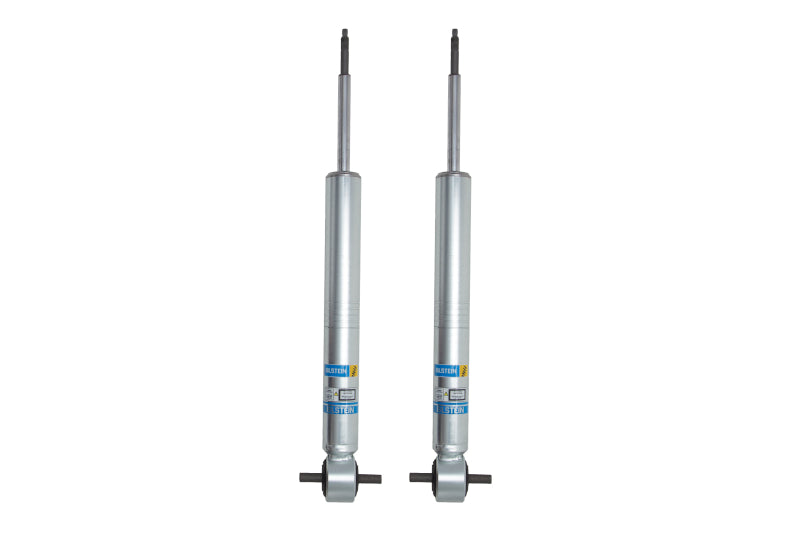

F150 4WD Bilstein 5100 Front Struts Features:

• Adjustable 0-2.1" front lift
• Levels front stance without spacers
• Improves handling and front-end control
• Gas-charged monotube strut design
• Multiple snap-ring height settings
• Reuses factory springs and mounts
• Direct bolt-on installation
• Sold as a pair

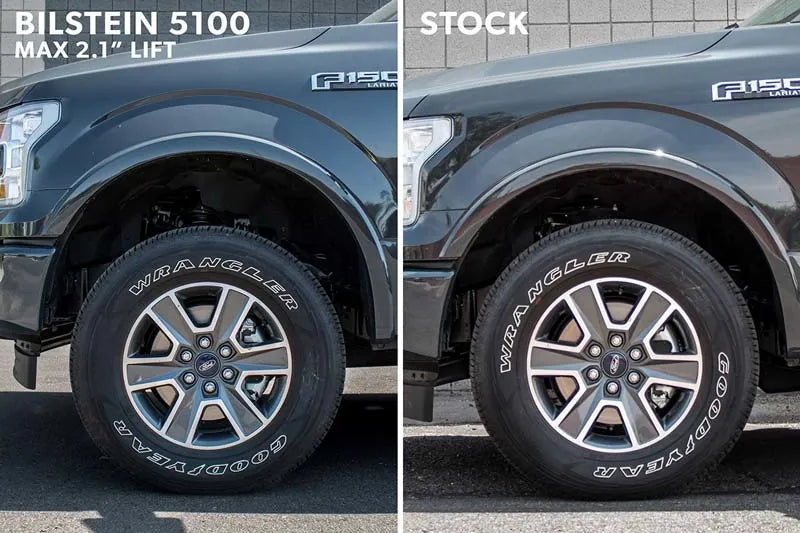

Can Add up to 2.10" of Front Leveling to your Truck

Leveling out your 2015-2020 4WD F150 is practically a rite of passage for new truck owners, and while a typical leveling spacer is a good option, those pucks won't be adding any suspension performance. When you want something that make your truck actually perform as it should both on the road and off it, you'll need this pair of Bilstein 5100 Series adjustable shocks. The 5100s have a slotted area on their bodies and comes with an adjustable spring seat collar that can be set from stock height to 2.10" of front ride height without any hassles. On top of their leveling and lifting abilities, the 5100s give your truck better suspension performance by improving rebound, response, and articulation all while keeping your truck's street and highway ride crisp and smooth.

High-Quality Piston and Valving for Improved Performance

Just like all of Bilstein's high-quality suspension components, the 5100 series front shocks are built from the ground up for performance, longevity and reliability. The shocks are each built around a 46mm digressive piston used with a nitrogen gas-charged monotube design. The valving has a self-adjusting, deflective disc design that makes these shocks effective for a variety of different applications. The shock body is made out of zinc-plated steel with a unique Triple-C coating. The Bilstein 5100 series shocks have 5" of travel depending on their ride height settings, giving them plenty of articulation ability for many applications. The shocks install right into place of your factory shocks and reuse your stock shock mount and spring assembly.

Vehicle Fitment: 15-20 F150 4WD

Four-Wheel Drive Only: these struts are only meant for 2015-2020 F150s with four-wheel drive.

Lift Height by Engine:

• Gas Engine: Stock, 0.8 inch, 1.25 inches, 1.75 inches, 2.1 inches
• 3.0L Diesel: 0.5 inch, 1 inch, 1.5 inches, 2 inches, 2.5 inches
