Factory Race Series 3.2 Live Valve | 21-23 F150

Description

America’s best-selling full-size pickup is equally at home cruising on the interstate or slashing dunes, and with the addition of Live Valve suspension, it’s even more versatile.

Live Valve monitors terrain and your driver inputs 400 times a second, adapting your truck's suspension for the perfect tune, in every moment. By controlling damping at all four corners of the vehicle in all driving situations and environments, you’ll always have the best-feeling suspension whether on pavement, gravel road, rock crawling and everything in between.

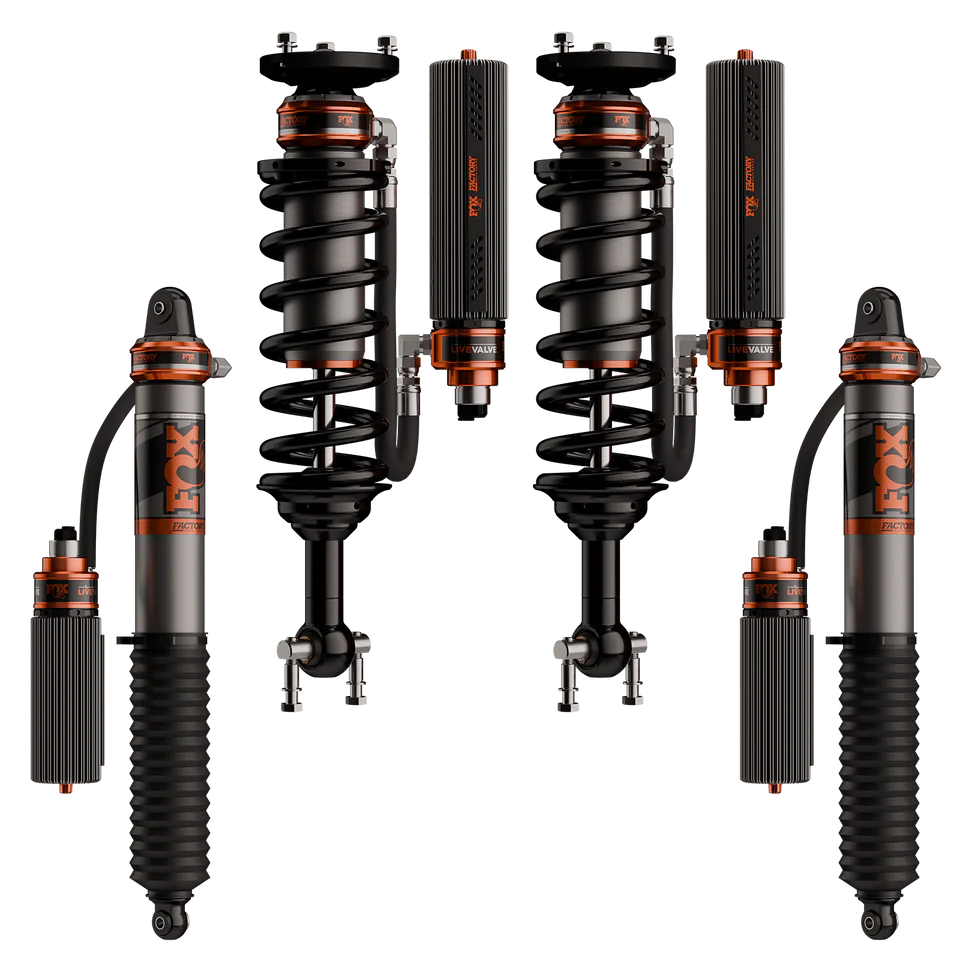

F150 SuperCrew FOX 3.2 Live Valve Coilover Package Features:

• Factory Race Series 3.2 Live Valve kit
• Lift range of 2 to 2.5 inches
• Front and rear coilover package
• Live Valve adjusts 400 times per second
• Position- and velocity-sensitive damping
• Patented Internal Bypass technology
• 3.2-inch hard-anodized aluminum shock bodies
• Withstands over 3,000 psi internal pressure
• Recirculating reservoirs improve cooling efficiency
• Three-way QS3 adjusters for tuning control
• Built for race-level performance and comfort

Race-Proven Control for Every Terrain

If you’re the kind of driver who wants your F150 to feel as confident carving through desert dunes as it does cruising the highway, the FOX Factory Race Series 3.2 Live Valve Coilover Package delivers the best of both worlds. This setup brings true race-inspired suspension technology to your SuperCrew, giving you control and comfort that adapt to the terrain in real time. The Live Valve system monitors your truck’s movement and the terrain 400 times per second, automatically adjusting damping to keep the suspension perfectly tuned at every moment. Whether you’re gliding over washboard roads, tackling rocky trails, or hitting an off-camber turn, the system reacts instantly to keep your ride composed and balanced. The 2–2.5 inch lift not only adds clearance for bigger tires but also enhances approach angles for serious off-road confidence. It’s the kind of upgrade that completely transforms how your truck feels behind the wheel.

Precision Engineering for your F150

The FOX 3.2 Live Valve system isn’t just about its advanced electronics, it’s built from the ground up to take abuse and perform under pressure. Each shock body is CNC-machined from 6061-T6 aluminum and hard-anodized for maximum corrosion resistance and strength, all while staying lighter than steel. Inside, FOX’s patented Internal Bypass design uses multiple damping zones to create a smooth, controlled ride that tightens up as you push harder. The coilovers feature one-inch hard chromed steel shafts and optimized spring rates for consistent performance and improved handling on any surface. Dual recirculating reservoirs, rear ECS2 coolers, and finned front reservoirs keep shock fluid temperatures stable, even during extended runs through tough terrain. With the QS3 adjusters, you can fine-tune your ride on the fly for comfort, sport, or aggressive performance. Once installed, you’ll experience a suspension that feels alive; refined on the street, fearless off-road, and ready to deliver the kind of control that only FOX Factory Race technology can provide.

Specs
