B8 8112 Black Hawk - Front Left | 2022+ Tundra

The Bilstein B8 8112 Black Hawk is a next-generation, direct-fit front coilover system for the Toyota Tundra. Built for unmatched performance and precision, it combines cutting-edge ZoneControl® position-sensitive damping with Bilstein’s advanced monotube technology. The result is a coilover that automatically adapts to terrain and driver input—delivering exceptional comfort on the road and total control off it.

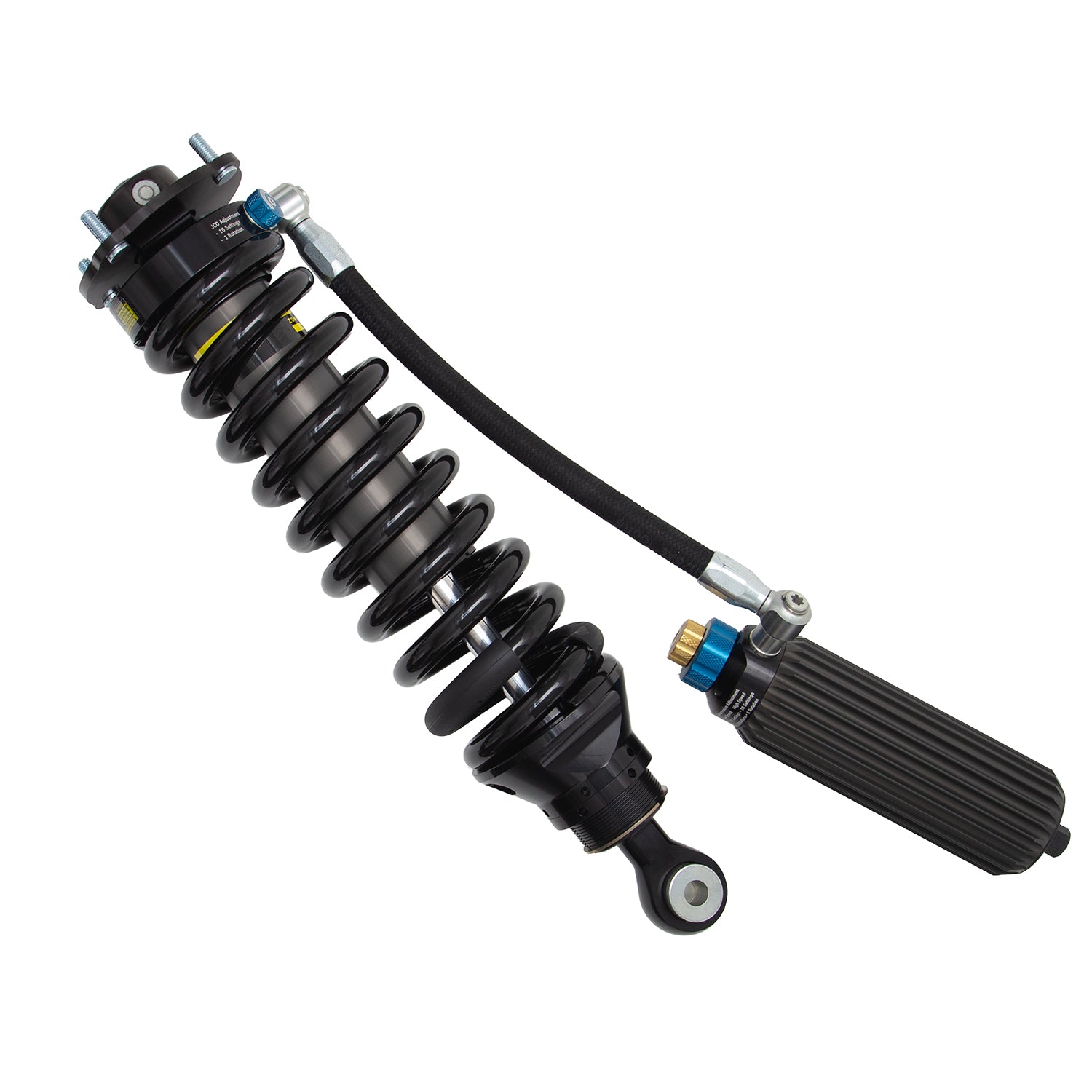

Its 2.65″ aluminum body and finned remote reservoir ensure optimal cooling and consistent damping performance under extreme conditions, while adjustable ride height allows for perfect stance and clearance. Whether you’re towing, trail-running, or daily driving, the B8 8112 Black Hawk delivers the control and capability your Tundra deserves.

Key Features

• 3-way damping system with independent high-speed compression, low-speed compression, and internal rebound zones

• 2.65″ (60 mm) large-bore aluminum body for superior heat management

• Threaded spring seat for adjustable ride height (approximately 0–2.25″ lift)

• Monotube design for consistent fade-free performance

• ZoneControl® internal bypass technology for smooth transitions between ride zones

• Fully rebuildable and revalvable for long-term service life

• Premium EVO Gray finish with billet hardware and corrosion-resistant construction

• Made in the USA with Bilstein’s proven motorsport engineering

• Warranty: Limited 2-Year

Fitment Notes

• Compatible with: Toyota Tundra 2022–2025 (4WD)

• Fits Front Left position

• Designed for 0–2.25″ front lift applications

• Direct replacement for factory coilover assembly

• Pair with matching Front Right module (41-332238) for complete front kit

Technical Specifications

• Collapsed Length: ≈ 17.6 in (447 mm)

• Extended Length: ≈ 23.4 in (594 mm)

• Body Diameter: 2.65 in (60 mm)

• Mount Type: OE-style stud top mount / eye lower mount

• Spring Seat: Threaded adjustable

• Reservoir: Finned aluminum remote design

• Quantity Required: 1 per vehicle side

Downloads

• Installation Instructions (E-WM05-0000131)

• Warranty (North America)

• Vehicle Brochure — Tundra 8112/8100 Series

• Safety Data Sheet
