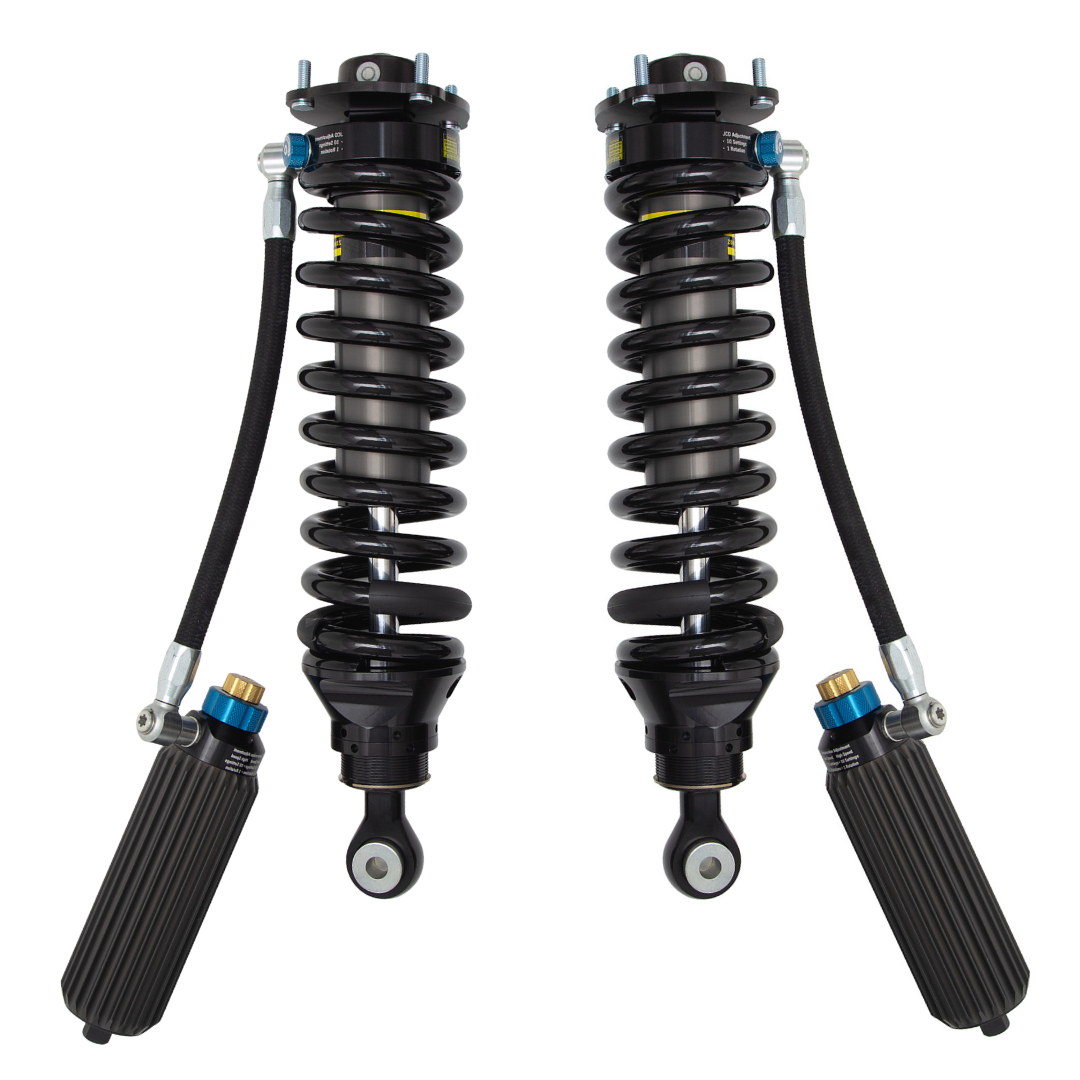

B8 8112 Black Hawk - Front Pair | 2022+ Tundra

Transform the handling, control, and confidence of your Toyota Tundra with the Bilstein B8 8112 Black Hawk Front Coilover Pair. Engineered for precision both on and off the road, these direct-fit coilover modules use ZoneControl® position-sensitive damping to automatically adjust to terrain changes and driver input — giving you unmatched ride comfort on pavement and total authority off-road.

Each coilover features a 2.65″ (60 mm) aluminum body with a finned remote reservoir, maximizing cooling capacity and ensuring fade-free damping even in extreme conditions. With threaded spring seats for adjustable ride height and fully rebuildable architecture, this system is built for the long haul — whether you’re daily driving, towing, or exploring rugged terrain.

FITMENT NOTE - REQUIRES aftermarket UCA to avoid coil contact during full droop.

FITMENT NOTE 2 - If lifting 2+", please ensure that you have RED or SILVER CV axles. If you do not, you run the risk of dislodging the CV axles during full droop. Please contact us if you have questions.

Key Features

• Pair includes: Front Left (41-332245) and Front Right (41-332238) modules

• 3-way adjustable damping — independent high-speed compression, low-speed compression, and rebound zones

• Large-bore 2.65″ (60 mm) aluminum body for superior strength and heat dissipation

• ZoneControl® internal bypass for seamless damping transitions and bottom-out protection

• Threaded spring seat provides ~0–2.25″ ride-height adjustability

• Monotube design for consistent, fade-resistant performance

• Finned remote reservoirs with billet fittings for excellent cooling and long-term durability

• Fully rebuildable and revalvable for extended service life

• EVO Gray finish with corrosion-resistant hardware and premium assembly quality

• Made in the USA with Bilstein’s race-proven engineering

• Warranty: Limited 2-Year

Fitment Notes

• Compatible with: Toyota Tundra 2022–2025 (4WD)

• Designed for V6 3.4 L i-Force models

• Lift Range: 0–2.25″ front lift applications

• Direct-fit replacement for OEM coilover assemblies — no fabrication required

• Includes both sides: Front Left (41-332245) and Front Right (41-332238)

• Intended for use as a matched pair only for proper balance and performance

Technical Specifications

• Collapsed Length ≈ 17.6 in (447 mm)

• Extended Length ≈ 23.4 in (594 mm)

• Body Diameter: 2.65 in (60 mm)

• Mount Type: OE-style stud top mount / eye lower mount

• Spring Seat: Threaded adjustable

• Reservoir: Finned aluminum remote design

• Quantity Required: 1 pair (Front Left + Front Right)

Downloads

• Installation Instructions (E-WM05-0000131)

• Warranty (North America)

• Vehicle Brochure — Tundra 8112/8100 Series

• Safety Data Sheet
