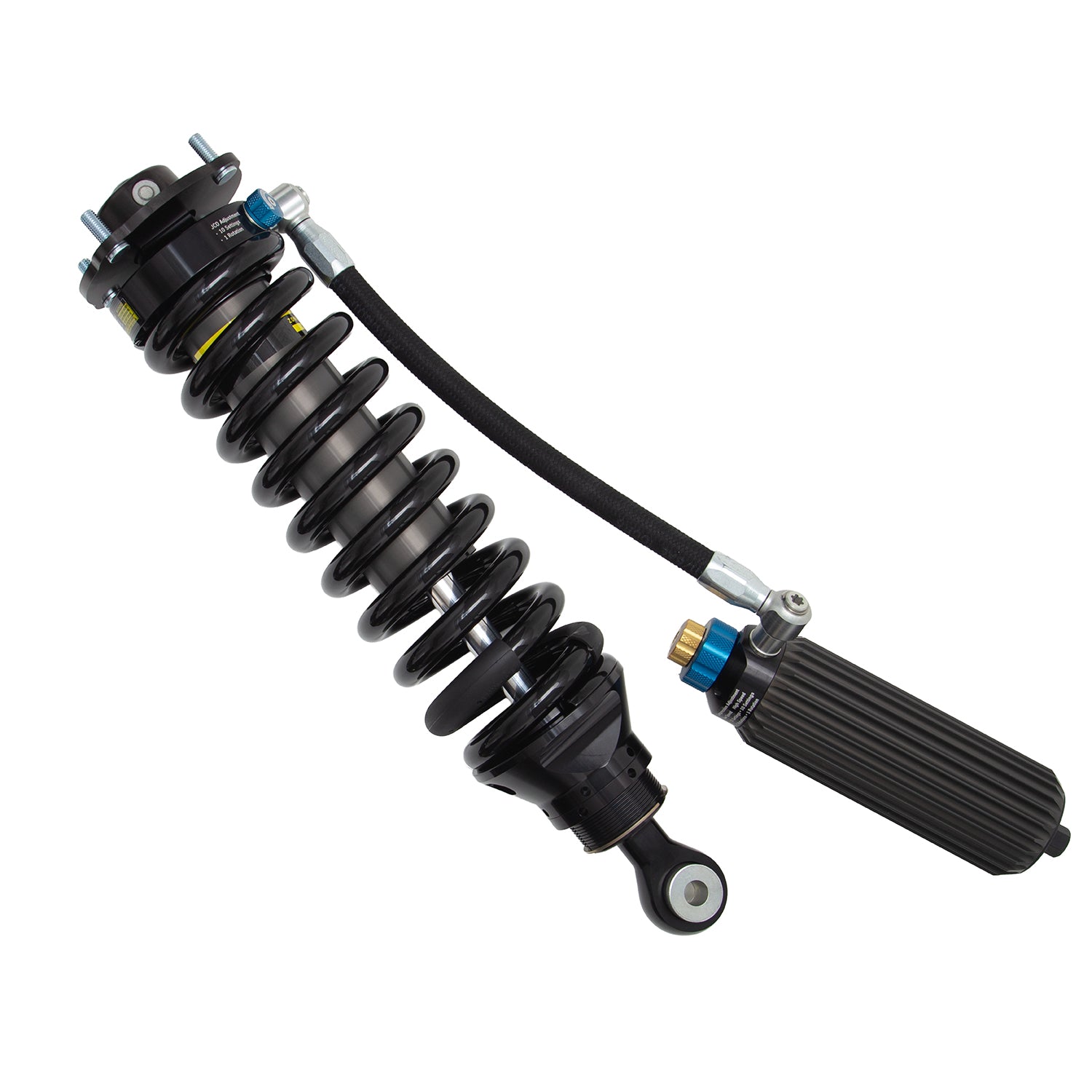

B8 8112 Black Hawk - Front Right | 2022+ Tundra

The Bilstein B8 8112 Black Hawk is the ultimate front-coilover upgrade for the Toyota Tundra, designed for drivers who demand the perfect balance between on-road comfort and off-road control. Utilizing Bilstein’s advanced ZoneControl® position-sensitive damping, this direct-fit coilover automatically adjusts to terrain and load, ensuring a smooth yet highly responsive ride in every condition.

A 2.65″ aluminum body, finned remote reservoir, and precision-machined billet hardware provide exceptional cooling, durability, and damping consistency. Combined with an adjustable spring seat for customizable ride height, the B8 8112 Black Hawk transforms your Tundra into a truly capable, confidence-inspiring machine.

Key Features

• 3-way damping system with independent high-speed compression, low-speed compression, and rebound zones

• 2.65″ (60 mm) aluminum body for superior heat dissipation and structural strength

• Threaded spring seat offers ride-height adjustability from approximately 0–2.25″ lift

• Monotube design with large 60 mm piston for consistent, fade-free performance

• ZoneControl® internal bypass for seamless damping transition and bottom-out protection

• Fully rebuildable and revalvable to extend service life

• Premium EVO Gray finish with corrosion-resistant hardware

• Made in the USA with Bilstein’s race-proven engineering

• Warranty: Limited 2-Year

Fitment Notes

• Compatible with: Toyota Tundra 2022–2025 (4WD)

• Fits Front Right position

• Designed for 0–2.25″ front lift applications

• Direct replacement for factory coilover assembly

• Pair with matching Front Left module (41-332245) for matching set

Technical Specifications

• Collapsed Length: ≈ 17.6 in (447 mm)

• Extended Length: ≈ 23.4 in (594 mm)

• Body Diameter: 2.65 in (60 mm)

• Mount Type: OE-style stud top mount / eye lower mount

• Spring Seat: Threaded adjustable

• Reservoir: Finned aluminum remote design

• Quantity Required: 1 per vehicle side

Downloads

• Installation Instructions (E-WM05-0000131)

• Warranty (North America)

• Vehicle Brochure — Tundra 8112/8100 Series

• Safety Data Sheet
