BP-51 Kit FR 2.5 in/0-330 lb, RR 0 in/0 lb w/UCA | 2021+ F150

OME

Product Sku: 5202K

$4,022.75

Overview

Old Man Emu offers a range of tuned and matched integrated suspension kits to ensure the right suspension is selected for how the vehicle is outfitted and the conditions it will encounter. Old Man Emu suspension systems are designed to enhance ride quality, ride control, load-carrying capacity, and ride height. When building an off-road vehicle, it's best to notate the heavy parts that you plan to add. Heavy components will slowly begin to compress your suspension which results in vehicle sag. Choosing an Old Man Emu integrated suspension kit will avoid sag and ride discomfort as our engineers have tuned and matched suspension components for an range of different weights. Old Man Emu has an offering of 3 different shock absorbers to ensure that you can find an integrated suspension kit to suit your every demand, vehicle outfit and road condition. This suspension lift kit comes with Old Man Emu BP-51 shocks. Utilizing the latest off-road technology, the BP-51 is an user adjustable internal bypass shock absorber. With 10 levels of compression and 10 levels of rebound adjustment, BP-51 delivers unmatched comfort and control ; both on and off road. This suspension lift kit is tuned and matched for the Ford F150 to provide 2.5in of lift in the front, with an weight of 0-330lbs and provide 0in of lift in the rear with an weight of 0lbs. This kit includes an upper control arm.

Features & Benefits

Tuned and matched suspension kit for increased comfort and control with or without added weight
Old Man Emu BP-51 coilovers and shocks
Internal bypass design technology providing position sensitive damping
On-vehicle tuning with 10 levels of independent compression AND rebound adjustment
Remote mounted oil reservoir to provide additional oil allowing for increased cooling and performance during extended periods of offroad use
6061 grade aluminum shock absorber body with type III, hard anodized finish for increased heat dissipation and corrosion resistance.
Direct replacement for OE and aftermarket suspension systems

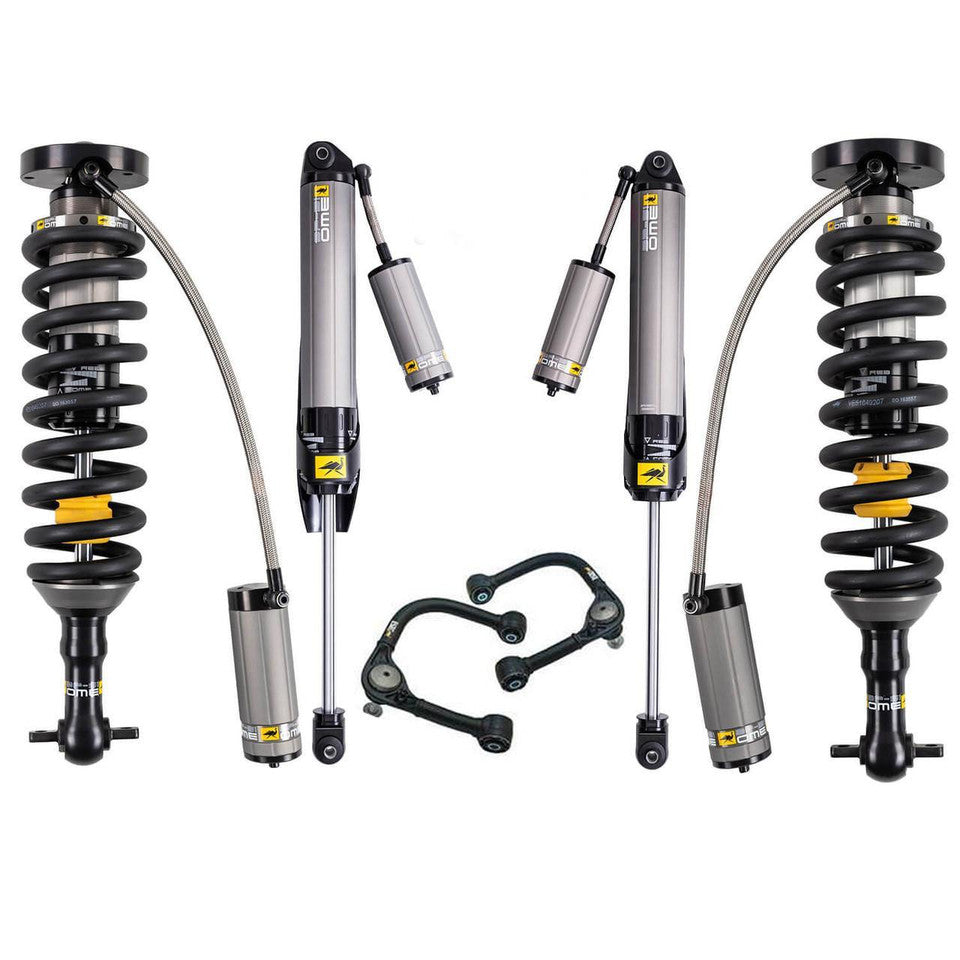

Kit Components

UCA0017 Upper Control Arm, 1
VM80010093 BP-51 Shock Fitting Kit Front, 1
BP5190030R BP-51 Coilover Front Right, 1
BP5160071L BP-51 Shock Rear Left, 1
VM80010094 BP-51 Shock Fitting Kit Rear, 1

Specifications

Rear Lift 0 in
Front Lift 2.5 in
Color Grey
Design BP-51
Prop 65 Yes
Warranty 3 YR

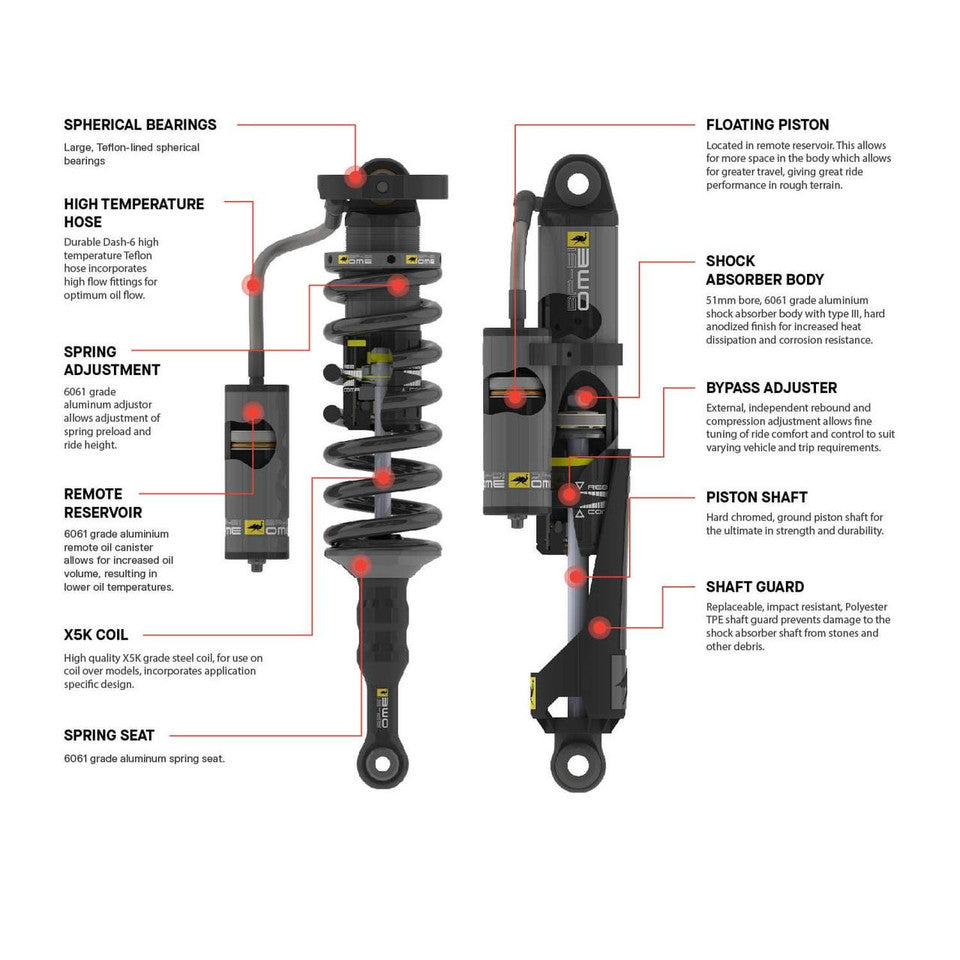

POSITION SENSITIVE DAMPING

Damping increases as you get closer to the end zone, meaning you’ll experience increased control at end zones and comfort at ride height.
ADJUSTABLE

External, independent rebound and compression on-car adjustment allows fine tuning of ride comfort and control to suit varying vehicle, load and trip requirements.
QUALITY ALUMINIUM MATERIAL

51mm bore, 6061 grade aluminium shock absorber body with type III, hard anodised finish for increased heat dissipation and corrosion resistance.
BOLT-IN APPLICATION SPECIFIC

Every BP-51 is expertly engineered to bolt-in to your vehicle, meaning no fitting modifications are required and no adjustments.

BP-51 (BYPASS 51MM DIAMETER BORE) SHOCK ABSORBERS

The new BP-51 range of high performance, bypass shock absorbers is the result of an exhaustive development process aimed at delivering the ultimate in both comfort and control. Designed, developed and tested entirely in-house by ARB’s team of Old Man Emu ride engineers, BP-51 shock absorbers are vehicle-specific and utilize existing mounting locations to provide easy installation without the need for additional vehicle modification. Unlike most other adjustable shock absorbers, which provide adjustment for compression only, the BP-51 range allows on-vehicle, independent adjustability of both rebound and compression to offer class-leading ride customization that can be tailored to an individual vehicle or trip requirements.

BYPASS TECHNOLOGY

In addition to the velocity sensitive damping used in most shock absorbers, where the faster the piston moves, the higher the level of damping is generated, BP-51 shock absorbers also generate damping dependent on the position of the piston within the shock absorber’s body via their bypass design. While most shock absorbers only generate damping based on fluid flowing through the piston, the BP-51 offers an alternative path from one chamber to the other, around the piston in the form of bypass passages. Some fluid flows through the piston and some fluid bypasses around the piston in the bypass passages. This results in an ability for the shock absorber to provide the best of both worlds, with a comfortable and compliant ride during normal driving and a more controlled ride over more challenging terrain. With greater levels of damping generated at each end of the stroke, the piston slows as it approaches full compression and extension, preventing harsh topping out against the bump stop and allowing larger bumps and corrugations to be absorbed more easily.
