Stage 3 Billet UCA Suspension System | 15-20 F150

Description

Build a more controlled, confident 2015-2020 F-150 4WD with this complete ICON Stage 3 suspension package. Vehicle-specific damping brings the front and rear together for improved composure on pavement, washboard roads and uneven trails while the adjustable coilovers provide 0-2.63 inches of front lift.

Key Features

• Matched front and rear system developed for 2015-2020 Ford F-150 4WD models.
• 2.5-inch internal-reservoir coilovers use application-specific valving and adjustable spring preload.
• 2.5-inch piggyback-reservoir rear shocks help manage heat and keep the truck settled.
• Designed around billet upper control arms with serviceable Delta Joints.
• Serviceable shock construction and corrosion-resistant aluminum components support long-term use.
• Bolt-on installation requires no cutting or welding.

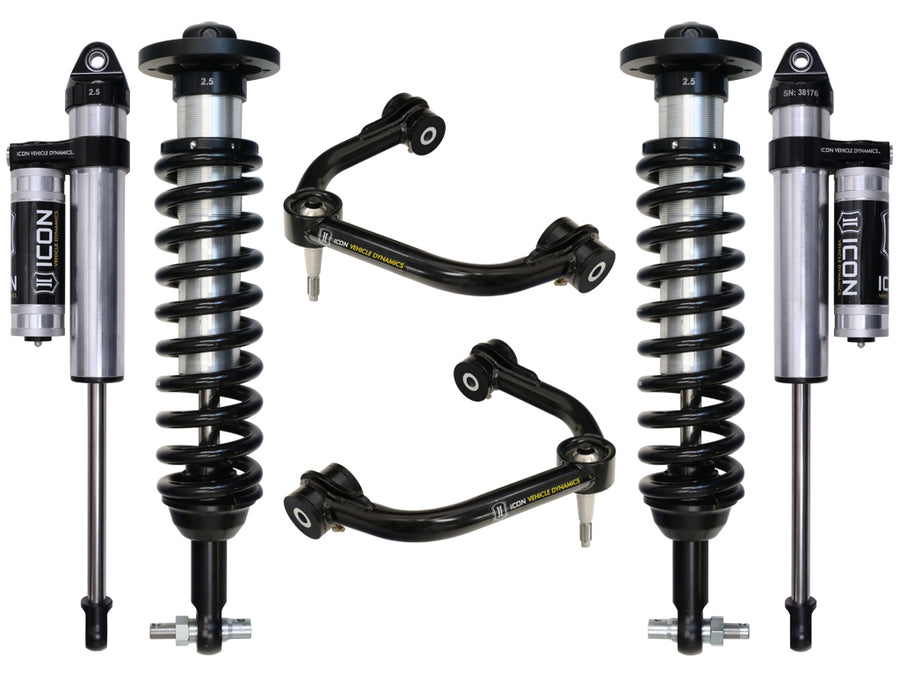

What's Included

• ICON 2.5 VS internal-reservoir coilover kit (91711), qty. 1
• Billet aluminum Delta Joint upper control arm kit (98505DJ), qty. 1
• ICON 2.5 VS piggyback-reservoir rear shock pair (97720P), qty. 1

Fitment & Important Notes

• Fits 2015-2020 Ford F-150 4WD; not intended for 2WD or Raptor models.
• Power Stroke diesel models have a reduced front lift range of 0-2.13 inches.
• Rear shocks support approximately 0-1 inch of rear lift on most applications.
• A 33x11.50 tire is the general recommendation; larger combinations may require trimming or additional modifications.
• Wheel and tire clearance varies. Confirm offset, backspacing and suspension clearance before ordering.
• Professional installation and a four-wheel alignment are recommended.
• Kit may ship in multiple boxes.

Manufacturer: ICON Vehicle Dynamics
Part Number: K93083
UPC: 840103420042
