XB Evo Hybrid LED Headlights | 21-23 F150/Raptor

Morimoto

Product Sku: LF2-498Y

$1,599.00

Select your options

None

Supercharged Drivers: LF2-498 Series (Set) +$179.00

None

LaminX Precut Clear Headlight Film: 21-23 F-150 / Raptor XB Evo (Set) +$74.00

Quantity

DESCRIPTION

The all-new XB Evo headlights are a showcase of everything Morimoto is made of. Packed with features that demonstrate a true attention to detail including the latest in technology, compliance, quality, and styling, these headlights are designed for enthusiasts who are serious about all the above, even if it comes at a premium. An all-new Tri-Beam Technology incorporates: 1) An Ishida Type 1 Bi-LED Projector, 2) Side-Specific Low Beam reflector assist and 3) High Beam reflector assist for truly incredible output. Our patent-pending heating system warms the surface temperature of the headlight lens to minimize frost buildup when driving through wet and snowy conditions in the wintertime. The signal swap system allows users to personalize how the daytime running lights and turn signals operate according to personal preference, all through a simple plug n play key on the back of each headlight. The daytime running light can be configured to run full-time in either white or amber with no compromise in intensity either way. When starting your F-150, the optics will automatically illuminate in a multi-stage sequence before turning back off. XB Evo headlights aren't cheap, but they are built to a high standard and should easily last the life of your F-150! We're proud to stand behind the product with an industry-leading five-year warranty.

FEATURES & BENEFITS

XB Evo: Much more than a design refresh, these headlights showcase Morimoto's commitment to technology, compliance, quality, styling, and performance for serious enthusiasts.

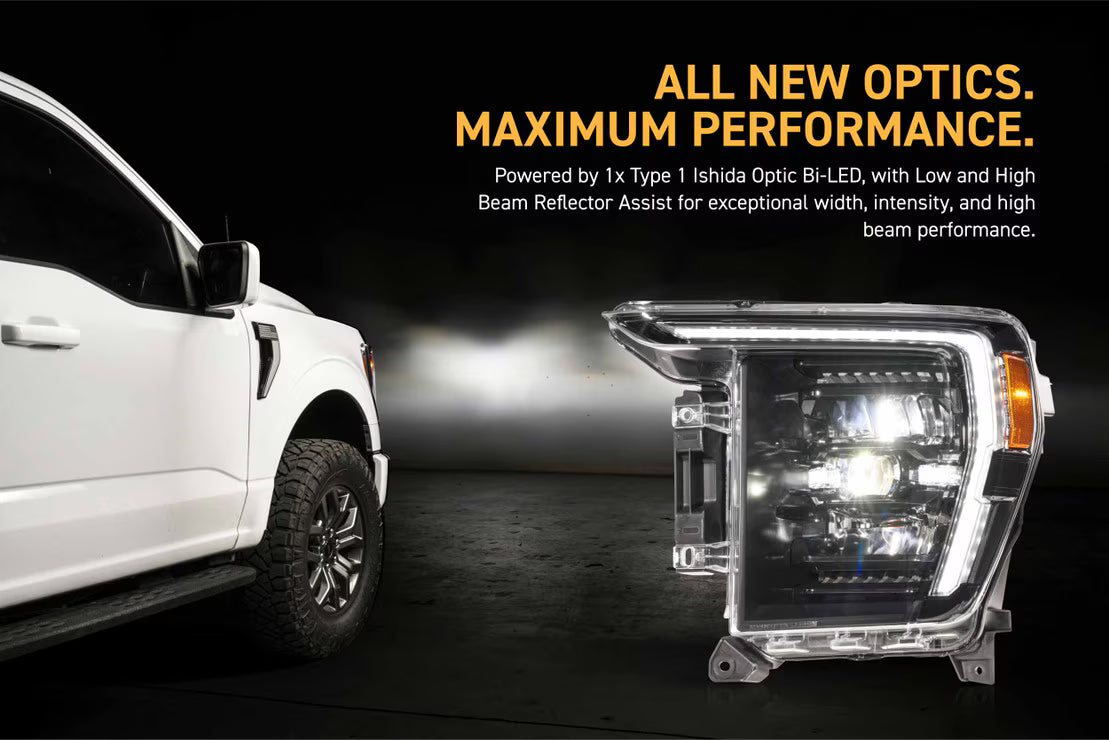

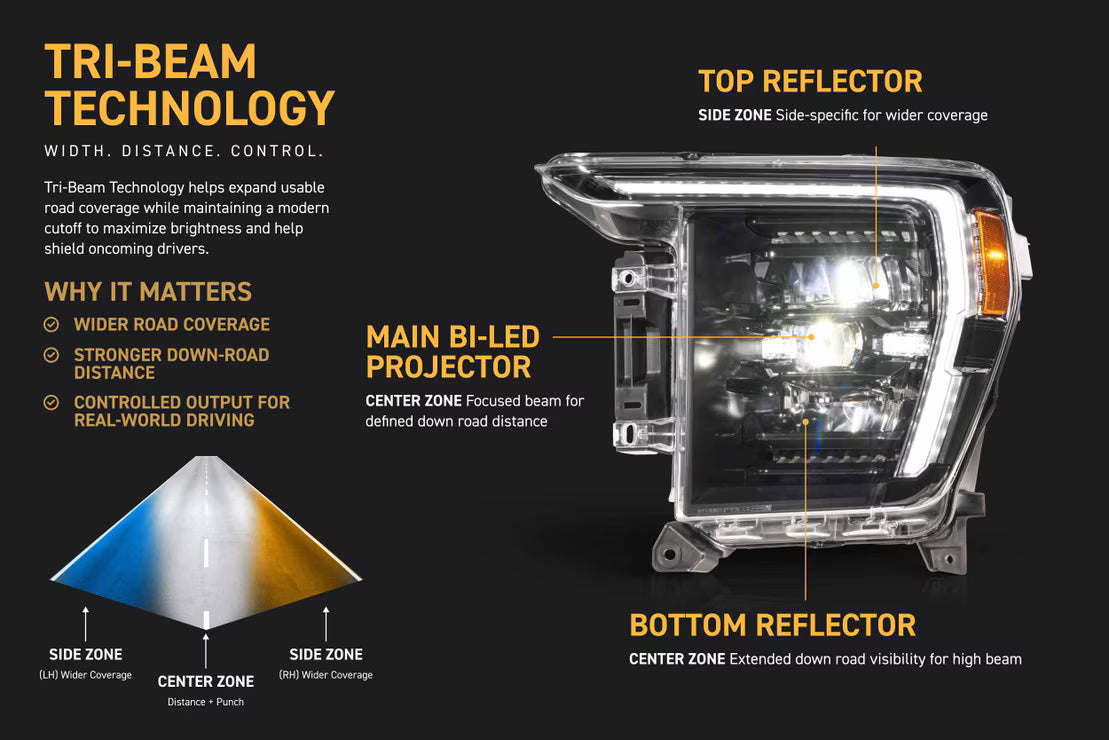

Tri-Beam Technology: An all-new Tri-Beam Technology incorporates: 1) An Ishida Type 1 Bi-LED Projector, 2) Side-Specific Low Beam reflector assist and 3) High Beam reflector assist for truly incredible output.
On and Off Road: Meets DOT compliance standards for public roads in the USA in standard form, with an optional Supercharged LED driver to boost intensity by 30-50%, making them the brightest option for F-150 owners who want to maximize output for off-road use.
Frost-Free System: Warms the lens surface to prevent frost buildup during wet and snowy conditions in winter. Activated by flashing the high beams four times when the temperature drops below 5C / 41F, this ensures consistent headlight performance in cold climates.
Signal Swap Keys: Enable users to personalize the operation of daytime running lights and turn signals via a plug-and-play key. The XB Evo can be configured to run with white or amber daytime running lights and sequential or standard turn signals.
Designed, Engineered, and Tested: In the USA by Morimoto, the XB Evo headlights are built with the highest standards, using the latest in technology and raw materials available today, and are backed with an industry-leading five-year warranty.

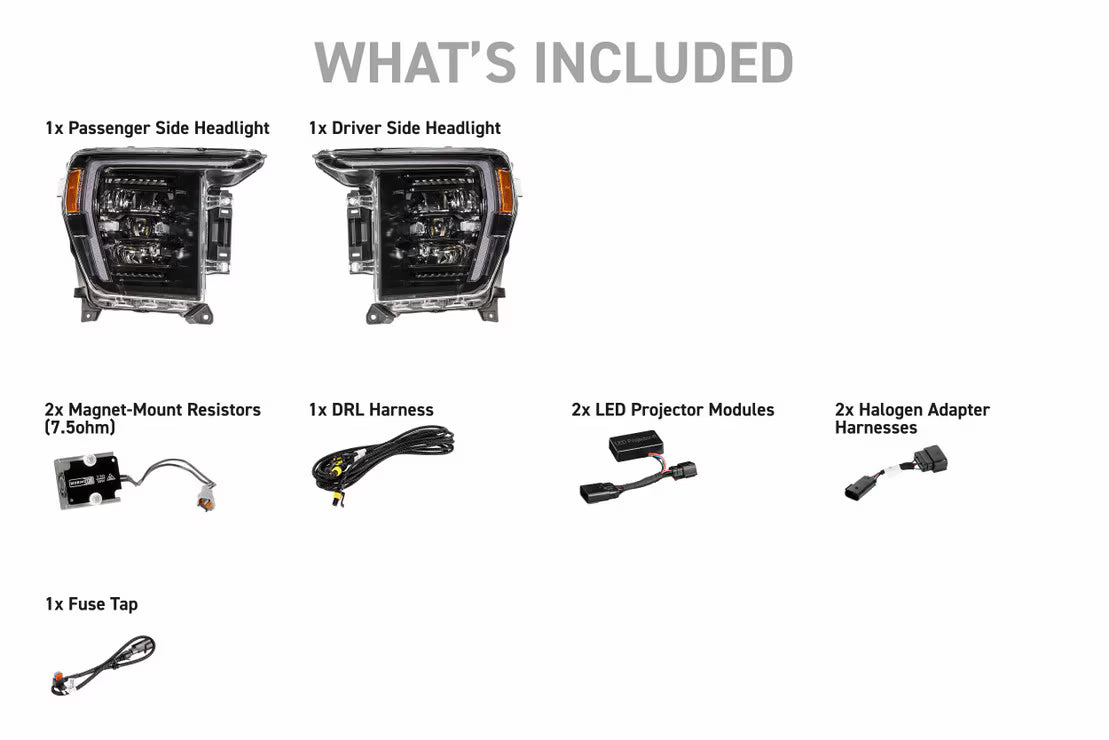

WHAT’S INCLUDED

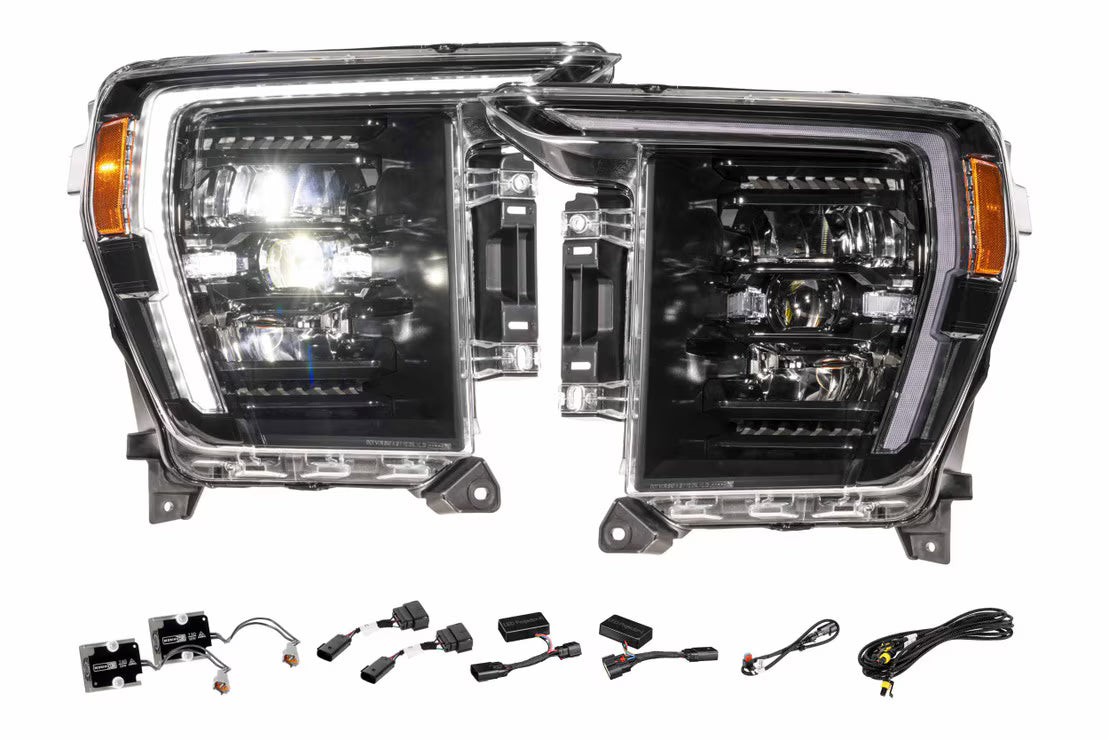

Headlights : One Pair (1x RH / Passenger Side Headlight, 1x LH / Driver Side Headlight)
Accessories : 2x Halogen Adapter Harnesses, 2x Magnet Mount Resistors, 2x LED Projector Modules, 1x Fuse Tap, 1x DRL Harness

WARRANTY INFORMATION

This Morimoto product includes a 5 Year limited warranty, serviced and supported by the Morimoto team in Atlanta, GA. This warranty does not cover modifications, alterations, or misuse.

COMPATIBILITY

Ford F-150 : 2021-2023 (All)
Ford Raptor : 2021-2023
Replaces OE Ford Part # : NL3Z13008K, ML3Z13008AG, ML3Z13008AE, NL3Z13008G, ML3Z13008K, NL3Z13008J, ML3Z13008AF, ML3Z13008AD, NL3Z13008H, ML3Z13008J
Supercharged Drivers : Compatible with LF2-DRVSC18 drivers
NOTE : These headlights were developed for compatibility with North American vehicles. Morimoto does not guarantee compatibility on trucks outside of North America.

COMPLIANCE

Meets all DOT, SAE, and FMVSS108 Standards**. **Note: Installation of Optional Supercharged Drivers results in non-compliant intensity. Not for on-road use in USA or Canada.

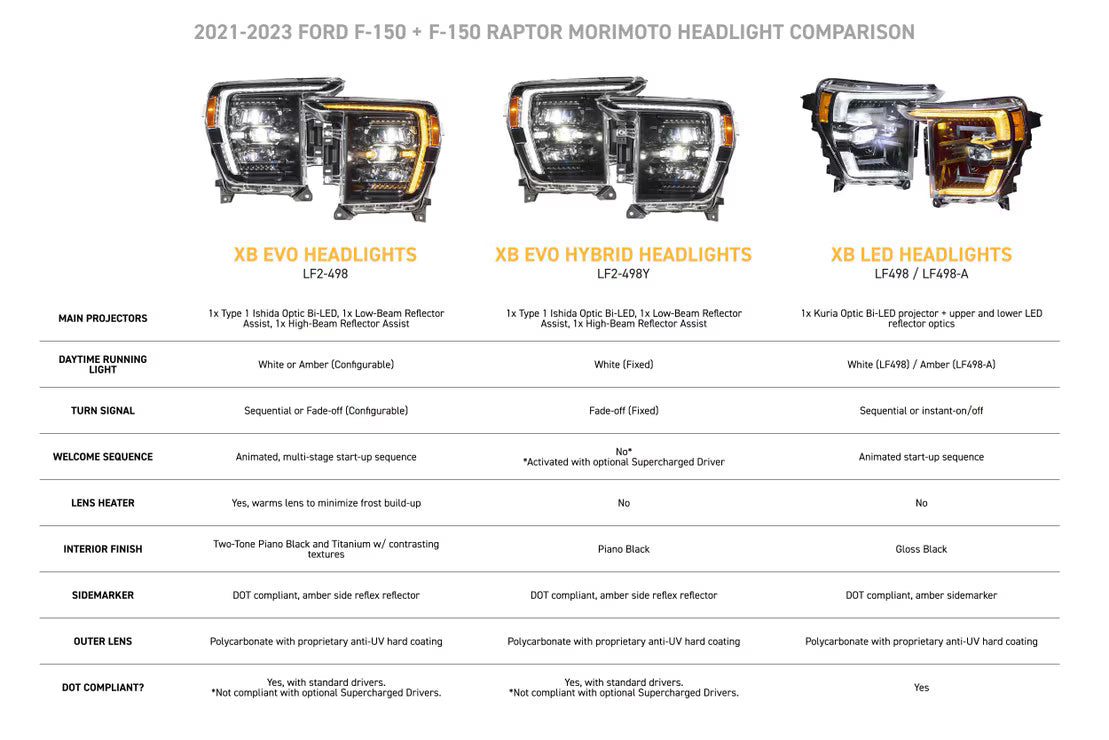

TECHNICAL SPECIFICATIONS

Traffic Pattern : LHD / Right Hand Traffic Only (US/CA Standard)
Output (Standard Drivers) : DOT (FVMSS108) Compliant (LB2V and UB2)
Output (Supercharged Drivers) : Off-Road use only

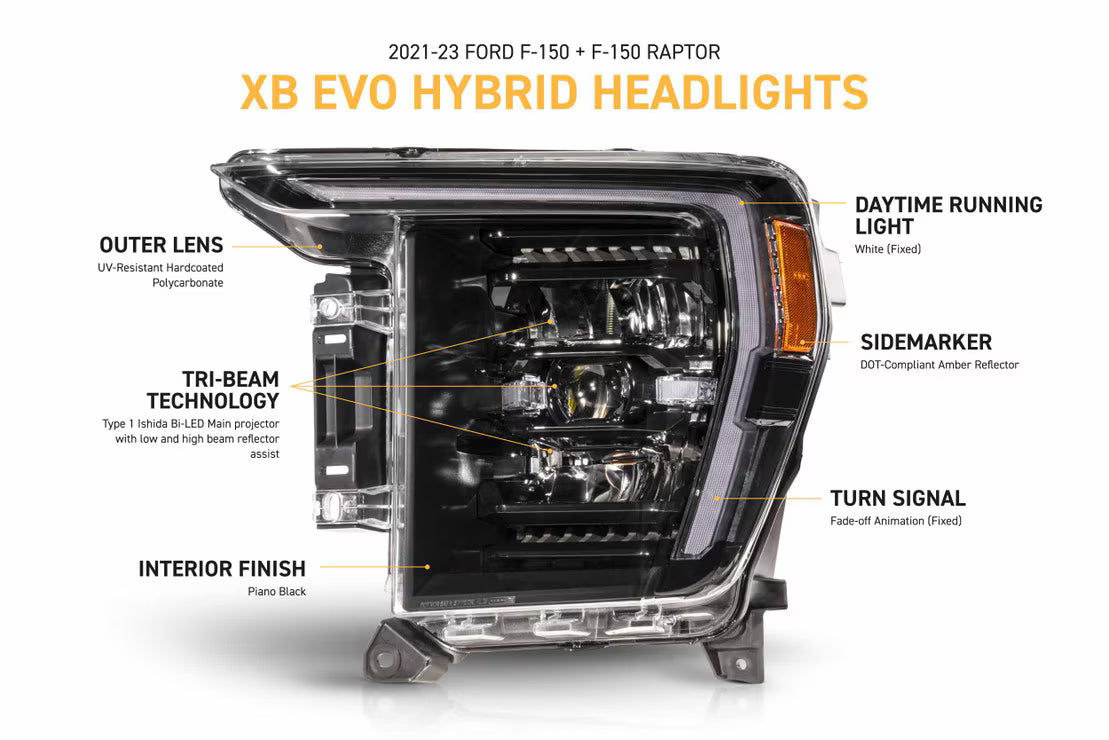

Main Optics : 1x Type 1 Ishida Optic Bi-LED Low-Beam Reflector Assist, High-Beam Reflector Assist
Functions : Low, High, Park, Turn, and DRL
Turn Signal Mode : Fade-Off
DRL Color : White
Internal Finish : Piano Black
Side marker : Amber side reflex reflector (DOT compliant)
Lens Details : Polycarbonate with proprietary anti-UV hard coating
